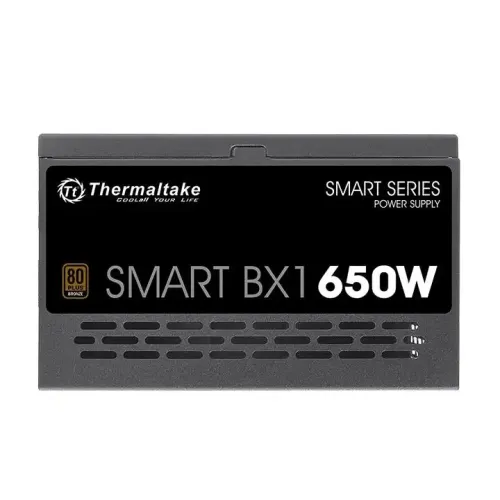

Thermaltake 650W Smart BX1 80 Plus Bronze Power Supply

Key Features
Model: Smart BX1 650W
Capacity: 650W
Form Factor: ATX
Type: ATX 12V v2.3 and EPS v2.92
Efficiency: 80 PLUS Bronze

Out of stock

Add to compare

Add to wishlist

18 People watching this product now!

Specification and Description

Specification

Key Features
Continuous Power	650W
Efficiency (Approx.)	Meet 80 PLUS Bronze at 115Vac input.
Certification	80 Plus Bronze
Fan Size	120mm
Lighting Effect	No
Input
Voltage	100V – 240V~
Frequency Range	50Hz – 60Hz \| 47Hz – 63Hz \| 47Hz – 63Hz
Current	12A max. \| 6 – 15A \| 10A max.
Output
Modular Type	Non-Modular
Total Power	750W
AC Input	Yes
DC Output	550W
Connector
PCI-E	2x PCI-E 6+2PIN
Floppy	1
Warranty Information
Manufacturing Warranty	05 Years

Description

Thermaltake 650W Smart BX1 80 Plus Bronze Power Supply

The Thermaltake 650W Smart BX1 has an 80 PLUS Bronze rating and an 88% power efficiency rating. A 120mm hydraulic bearing fan, Japanese primary capacitors, and other high-quality components contribute to constant and stable power output at 40°C, near-silent operation, and dependable performance. The Smart BX1 can meet the market needs for value-conscious consumers searching for a new power supply with the most up-to-date features.

Ultra Quiet 120mm Hydraulic Bearing Fan

Thermaltake 650W Smart BX1 Power Supply Features a 120mm hydraulic bearing fan with clever RPM controls to assist in providing optimal cooling performance and near-quiet operation.

Low Ripple Noise

Thermaltake 650W Smart BX1 Power Supply All ripples are less than 80mV on +12V and less than 40mV on +5V or +3.3V from 0% to 100% load to provide a steady operation and keep your performance-critical components, such as high-end graphics cards, running reliably for longer.

80 PLUS Gold Certified and Intel C6/C7 States Ready

The Thermaltake 650W Smart BX1 Power Supply saves energy thanks to its excellent energy efficiency of up to 88% and is 80 PLUS Bronze certified. It has been tuned to operate with all versions of Intel CPUs to save the most energy.
