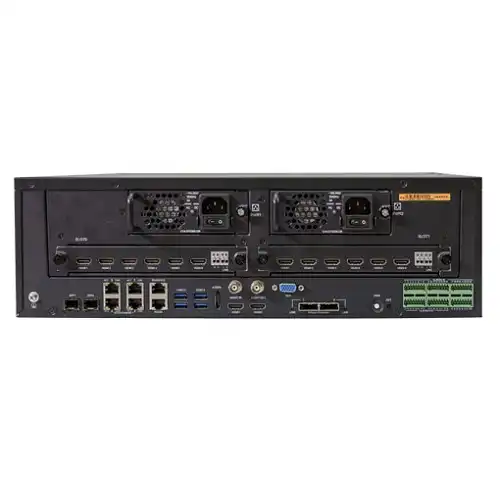

Uniview UNICORN Video Management System

Key Features
Model: UNICORN
Connections: 1000 Devices or 2000 Channels
Incoming Bandwidth: 512Mbps
Storage: Max 16 hard disks and 2 disk enclosures;
expandable up to 48 disks with 672TB storage, recording

Available on backorder

Add to compare

Add to wishlist

10 People watching this product now!

Specification and Description

Specification

*Brand*	*Uniview*
*Main Processor*	*Intel(R) CPU* *4GB DDR3L*
*Operating System*	*Linux OS, dual-BIOS*
*Audio and Video*
*IP Camera Input*	*2000 Channel or 1000 devices*
*Display*
*Interface*	*HDMI(×2) and VGA(×1) output* *HDMI output supports 4K resolution*
*Resolution*	*12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080P/ 960P/ 720P/ 960H/ D1/ 2CIF/ CIF/ QCIF*
*Decoding Capacity*	*4×4K@30, 16×1080p@30, 36×720p@30, 64×D1*
*Recording*
*Compression*	*Ultra265, H.265, H.264*
*Resolution*	*12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080P/ 960P/ 720P/ 960H/ D1/ 2CIF/ CIF/ QCIF*
*Others*	*Bandwidth input per server: 512Mbps* *Bandwidth output per server: 384Mbps* *Video Array: RAID0, RAID1, RAID5, RAID6, RAID10, RAID50, RAID60* *Video storage per server: 512Mbps/ 256 channels* *Play control: 1 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 13 / 16 / 17 / 25 / 32 / 36 / 64 window display* *Corridor format Up to 3 auxiliary monitors*
*Video Detection And Alarm*
*Trigger Event*	*Alarm Records: 200,000* *Operation logs: 200,000*
*Alarm Input*	*24×alarm inputs, 8×alarm outputs* *Audio Alarm: Buzzer*
*Playback And Backup*
*Playback Function*	*Up to 24 channels for multiple clients; synchronous playback up to 16 channels for single client*
*Third Party Support*
*Third Party Support*	*Third-party IP Cameras supported with standard ONVIF*
*Network*
*Interface*	*4×10M/100M/1000M Base-T adaptive Ethernet interfaces* *2×1000M SFP optical interfaces*
*Network Function*	*1×RS-232 (RJ45), 1×RS-485 (RJ45)*
*Maximum User Access*	*Users: 1000* *Online Users: 300* *Roles Users: 16*
*Storage*
*Internal HDD*	*2×miniSAS interfaces* *2×decoding cards*
*eSATA*	*1×eSATA interface*
*Auxiliary Interface*
*USB*	*4×USB3.0*
*Power*
*Power Supply*	*100-240 VAC (with power on/off switch)* *Dual-power redundancy* *Power Output: 12V DC*
*Power Consumption*	*≤ 50W (not including HDD)* *≤ 165W (including HDD)*
*Component Environment*
*Operational Conditions*	*-10°C to 55°C (14°F to 131°F)* *10% to 90% (noncondensing)*
*Construction*
*Dimensions*	*Height: 3U, support mounting in standard 19″ cabinet* *477.1 mm × 481.6 mm × 130.5 mm (18.8”×19”×5.1”) (including front panel)*
*Net Weight*	*≤ 10.0 Kg*
*Warranty*
*Manufacturing Warranty*	*2 Year Warranty*

Description

Uniview UNICORN Video Management System

A Uniview UNICORN Video Management System Server has 2000 channels and 1000 Devices connected and is Third-party IP cameras supported with standard ONVIF and RTSP. This Uniview UNICORN Video Management System has Unified management of IPC, NVR, face recognition terminal, decoder, network keyboard, cloud devices, alarm control panel, door access control, and support devices configuration import/export. The UNICORN VMS server has a maximum of 16 hard disks and 2 disk enclosures, expandable up to 48 disks with 672TB storage, recording backup, and IPSAN storage. This device has a maximum of 16x1080p decoding outputs on three screens and is expandable up to 112x1080p on 15 screens with 2 decoding cards inserted. And it serves to Live view, playback, sequence, video wall, e-map, GIS map, two-way audio, alarm plan, and other latest features. It has to Multi-IP configuration
