Specification
| Brand | Uniview | |
| Operating System | Linux system | |
| Audio and Video | ||
| IP Camera Input | 64 Channel | |
| Two-Way Talk | 1-ch, BNC | |
| Display | ||
| Interface | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
HDMI1/HDMI2 (HDMI audio output is not supported): 4K (3840×2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
|
| Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Decoding Capacity | 4 x 12MP@20, 4 x 4K@30, 16 x 1080p@30, 36 x 720p@30, 64 x D1 | |
| Recording | ||
| Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Video Detection And Alarm | ||
| Video Detection | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Behavior Search, People Flow Counting, Crowd Density Monitoring | |
| Alarm Input | 24 Channel | |
| Relay Output | 8 Channel | |
| Playback And Backup | ||
| Sync Playback | 64 Channel | |
| Third Party Support | ||
| Third Party Support | ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T | |
| Network | ||
| Interface | 4 RJ45 | |
| Ethernet Port | 10M/100M/1000M adaptive Ethernet Interface
2 1000M SFP Ethernet Interface Serial Interface: 1 x RS232, 1 x RS485 |
|
| Maximum User Access | Remote Users: 128 | |
| Storage | ||
| Internal HDD | 16 SATA interfaces | |
| HDD Mode | up to 8TB for each HDD | |
| eSATA | 1 eSATA interface
miniSAS: 2 miniSAS ports |
|
| Auxiliary Interface | ||
| USB | Rear panel: 4 x USB3.0 | |
| Power | ||
| Power Supply | 100 ~ 240V AC | |
| Power Consumption | ≤ 50 W (without HDD) | |
| Component Environment | ||
| Operational Conditions | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) | |
| Construction | ||
| Dimensions | 482mm ×477mm × 131mm (18.8″× 19.0″ ×5.1″) | |
| Net Weight | ≤ 10 Kg (22.05 lb) | |
| Warranty | ||
| Manufacturing Warranty | 2 Year Warranty | |
Description

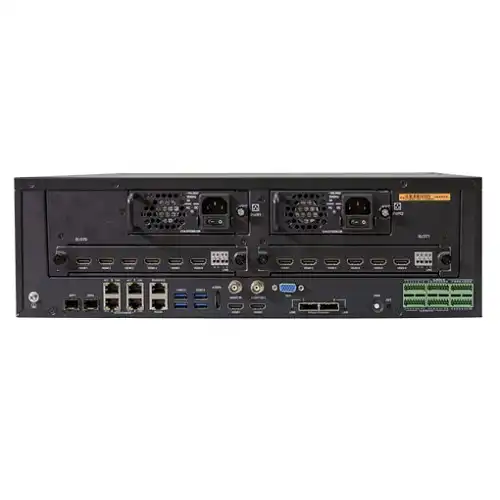

Uniview NVR516-64 64 Channel 4K 16 HDDs RAID NVR
A Uniview NVR516-64 64 Channel 4K 16 HDDs RAID NVR support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable and N+1 hot spare. This Uniview NVR has 1 channel, BNC Two-way Audio input. This NVR has 4 RJ-45 10M/ 100M/ 1000M adaptive Ethernet Interface and 2 1000M SFP Ethernet network interfaces, Rear panel 4 x USB3.0. This Uniview NVR516-64 has a Redundant power supply optional and supports 12V power output. This Uniview NVR516-64 has 2 slots decoding cards (4-ch HDMI or 6-ch HDMI outputs per card) for optional. It has 2 Unit chassis that easily mount a 19-inch rack. It has 16 SATA interfaces up to 8TB for each HDD and 1 eSATA interface. This NVR features RAID 1/ 5/ 6/ 10/ 50/ 60 disk array and has 4 x 12MP.20, 4 x 4K.30, 16 x 1080p.30, 36 x 720p.30, 64 x D1 decoding capability.This Uniview NVR516-64 64 Channel 4K 16 HDDs RAID NVR has 1 advanced eSATA interface. The eSATA connect outside a computer. eSATA combines the functionality of a USB port and source of power in a single connector.This Uniview NVR516-64 64 Channel 4K 16 HDDs RAID NVR features SAS RAID ports. These ports offer a cost-effective balance of Video storage capacity and satisfy stringent data requirement availability.
