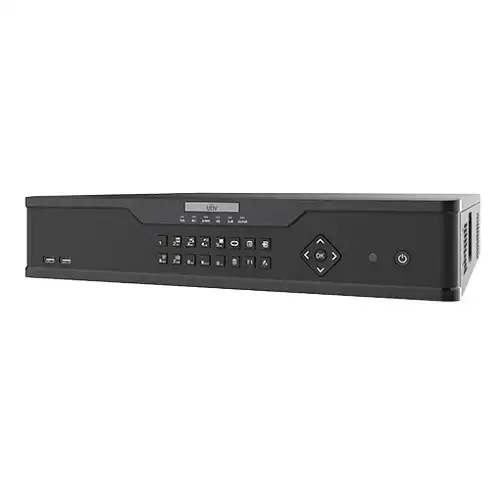

Uniview NVR308-64X 64 Channel 4K NVR - Image 1

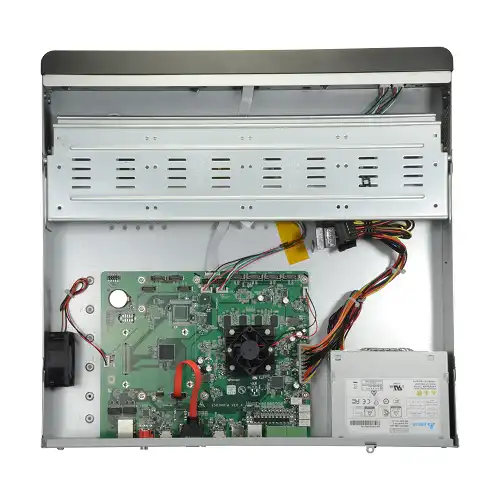

Uniview NVR308-64X 64 Channel 4K NVR - Image 2

Uniview NVR308-64X 64 Channel 4K NVR

Key Features
Model: NVR308-64X
Inputs: 64 Channel
Incoming Bandwidth: 384Mbps
Up to 12 Megapixels resolution recording
8 SATA HDDs up to 10TB for each HDD

Available on backorder

Add to compare

Add to wishlist

16 People watching this product now!

Specification and Description

Specification

*Brand*	*Uniview*
*Operating System*	*Linux system*
*Audio and Video*
*IP Camera Input*	*64 Channel*
*Two-Way Talk*	*1 Channel, RCA*
*Display*
*Interface*	*VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz* *HDMI1/HDMI2(HDMI audio output is not supported): 4K (3840×2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz*
*Resolution*	*12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF*
*Decoding Capacity*	*2 x 12MP.30, 4 x 4K.30, 8 x 4MP.30, 9 x 4MP.25, 16 x 1080P.30, 32 x 960P.25, 36 x 720P.30, 64 x D1*
*Recording*
*Resolution*	*12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF*
*Video Detection And Alarm*
*Video Detection*	Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Auto Tracking, Object Left Behind, Object Removed, Vehicle Control, Behavior Search, Vehicle Search, People Flow Counting, Crowd Density Monitoring
*Alarm Input*	*16 Channel*
*Playback And Backup*
*Sync Playback*	*64 channel*
*Playback Function*	*VGA: 1/4/6/8/9/16/25/36* *HDMI1/HDMI2: 1/4/6/8/9/16/25/36/64*
*Third Party Support*
*Third Party Support*	*ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T*
*Network*
*Interface*	*2 RJ45*
*Ethernet Port*	*10M/100M/1000M self-adaptive Ethernet Interfaces*
*Maximum User Access*	*Remote Users: 128*
*Storage*
*Internal HDD*	*8 SATA interfaces*
*HDD Mode*	*up to 10TB for each HDD*
*eSATA*	*1 eSATA interface*
*Auxiliary Interface*
*USB*	*Front panel: 2 x USB2.0* *Rear panel: 1 x USB3.0*
*RS232*	1
*RS485*	1
*Power*
*Power Supply*	*100~240 VAC*
*Power Consumption*	*≤ 25 W (without HDD)*
*Component Environment*
*Operational Conditions*	*-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)*
*Construction*
*Dimensions*	*442mm ×426mm× 89mm (17.4″ × 16.8″× 3.5″)*
*Net Weight*	*≤ 5.7Kg (12.57lb)*
*Warranty*
*Manufacturing Warranty*	*2 Year Warranty*

Description

Uniview NVR308-64X 64 Channel 4K NVR

A Uniview NVR308-64X 64 Channel 4K NVR features HDMI 1, HDMI 2, VGA, Audio, Alarm, 1 eSATA, 8 SATA up to 10TB for each HDD, 2 RJ45 10M/ 100M/ 1000M self-adaptive Ethernet network interface, Incoming and Outgoing Bandwidth up to 384/ 384Mbps and TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS Network protocols. The Uniview NVR308-64X 64 Channel 4K NVR has 1 Channel, RCA Audio Output, G.711A, G711U Audio Compression, and 64 Channel synchronous playback, VGA 1/4/6/8/9/16/25/36 HDMI1/HDMI2 1/4/6/8/9/16/25/36/64 Liveview Display and 3/ 4/ 5/ 7/ 9/ 10/ 12/ 16/ 32/ 64 screen corridor mode. This Uniview NVR308-64X 64 Channel 4K NVR supports RAID Array type 0, 1, 5, 6, 10, and a smart VCA detection System. Its decoding capability 2 x 12MP.30, 4 x 4K.30, 8 x 4MP.30, 9 x 4MP.25, 16 x 1080P.30, 32 x 960P.25, 36 x 720P.30, 64 x D1 and its has to Duel Network Interface.The Uniview NVR308-64X 64 Channel 4K NVR has 1 Channel VGA and 2 Channel HDMI up to 4K (3840 x 2160) resolution. The 4K resolution is published in the Digital Video System Specification and has a horizontal pixel count of 3840 pixels up to 4000 pixels and a vertical pixel count of up to 2160 pixels.
