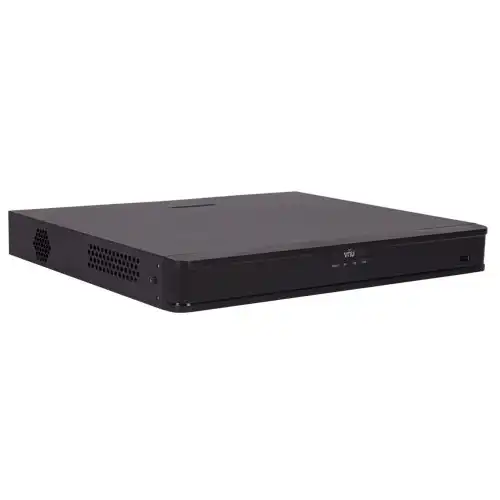

Uniview NVR302-16S-P16 16 Channel 4K PoE NVR

Key Features
Model: Uniview NVR302-16S-P16
Input: 16 Channel
Plug & Play with 16 independent PoE Network Interface
ANR technology can increase storage dependability
2 SATA HDDs up to 16TB each HDD

Out of stock

Add to compare

Add to wishlist

20 People watching this product now!

Specification and Description

Specification

*Brand*	*Uniview*
*Operating System*	*Linux system*
*Audio and Video*
*IP Camera Input*	*16 Channel*
*Display*
*Interface*	*HDMI: 3840×2160(4K), 1920x1080p, 1600×1200, 1280×1024, 1280×720, 1024×768* *VGA: 1920×1080, 1600×1200, 1280×1024, 1280×720, 1024×768*
*Resolution*	*8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF*
*Recording*
*Compression*	*8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF*
*Video Detection And Alarm*
*Video Detection*	Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Object Left Behind, Object Removed, Face search, Behavior search, People counting
*Playback And Backup*
*Sync Playback*	*16 channel*
*Third Party Support*
*Third Party Support*	*ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T*
*Network*
*Interface*	*1 RJ45*
*Ethernet Port*	*10M/100M/1000M self-adaptive ethernet interface*
*PoE*	*Maximum Power 30W for single port* *Maximum Power 240W in total (15W for each)*
*Maximum User Access*	*Remote Users: 128*
*Storage*
*Internal HDD*	*2 SATA interface*
*HDD Mode*	*Up to 16TB*
*Auxiliary Interface*
*USB*	*Rear panel: 1 x USB2.0* *Front panel: 1 x USB2.0*
*Power*
*Power Supply*	*220V AC*
*Power Consumption*	*≤9 W (without HDD)*
*Component Environment*
*Operational Conditions*	*-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)*
*Construction*
*Dimensions*	*380mm ×315mm × 49.1mm(15.0″ × 12.4″ ×1.9″ )*
*Net Weight*	*≤2.4kg (5.29 lb)*
*Warranty*
*Manufacturing Warranty*	*1-year Warranty*

Description

Uniview NVR302-16S-P16 16 Channel 4K PoE NVR

A Uniview NVR302-16S-P16 Channel 4K PoE NVR features a professional IP Network Video Recorder. This NVR has built 16 PoE channels. The Uniview NVR302-16S-P16 16 Channel 4K PoE NVR supports third-party cameras with Profile S, Profile G, Profile C, Profile Q, Profile A, and Profile T ONVIF conformance. This Uniview NVR has a great feature quieter fan. The Uniview NVR302-16S-P16 16 Channel 4K PoE NVR pickes up the latest advanced features for extremely user-friendly. Uniview NVR302-16S-P16 is extended PoE Ranges of up to 250 meters IP camera and NVR and PoE maximum power 30W for a single port and 240W total in 15W for each. The NVR has easy-click Cloud Upgrades. This Uniview 4K NVR Recording resolution is 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 2MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF with PoE and network capacity is 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface. It has 16 independent 100Mbps PoE network interface and 1 x 4K.30, 1 x 6MP.30,1 x 5MP.30, 2 x 4MP.30, 4 x 1080p.30, 8 x 720p.30,16 x D1 decoding capabillity. Its supports IEEE 802.3af/at standerd.The Uniview NVR302-16S-P16 Channel 4K PoE NVR has Unified management for IP cameras, decoding devices, and more. This NVR view is for anywhere on a Mobile device with EZView Mobile App for Android and iSO. This NVR supports Mobile Clients, Push alerts, Email notifications, and P2P.A Uniview NVR302-16S-P16 Channel 4K PoE NVR supports the latest Automatic Network Redundancy (ANR) Technology. IP cameras with MicroSD Card Slot when the network disconnect then automatically store video recording into the cameras SD card again when the network is restored then video recordings will be sent back to the storage server. All video recordings will be saved even if the network goes down temporarily.
