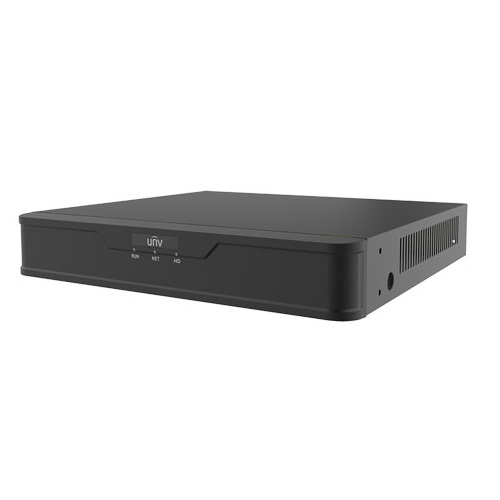

Uniview NVR301-08S2 8 Channel 4K NVR

Key Features
Model: NVR301-08S2
Inputs: 8 IP Camera
Up to 8 Megapixels resolution recording
HDMI at up to 4K(3840×2160) resolution
Support Cloud upgrade

Out of stock

Add to compare

Add to wishlist

12 People watching this product now!

Specification and Description

Specification

*Brand*	*Uniview*
*Operating System*	*Linux system*
*Audio and Video*
*IP Camera Input*	*8 Channel*
*Display*
*Interface*	*1 x HDMI port* *1 x VGA port*
*Decoding Capacity*	*1 x 6MP@20, 1 x 5MP@30, 2 x 4MP@25, 2 x 3MP@30,4 x 1080p@25, 8 x 960p@25,8 x 720p@30*
*Recording*
*Resolution*	*5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF*
*Video Detection And Alarm*
*Video Detection*	*Face detection, Intrusion detection, Cross line detection, Audio detection*
*Playback And Backup*
*Sync Playback*	*8 channel*
*Third Party Support*
*Third Party Support*	*ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T*
*Network*
*Interface*	*1 RJ45*
*Ethernet Port*	*10M/100M, self-adaptive ethernet interface*
*Network Function*	*Incoming Bandwidth: 50Mbps* *Outgoing Bandwidth: 40Mbps*
*Maximum User Access*	*Remote Users: 128*
*Storage*
*Internal HDD*	*1 SATA interface*
*HDD Mode*	*Up to 8TB*
*Auxiliary Interface*
*USB*	*Front Panel: 1 x USB2.0* *Rear Panel: 1 x USB2.0*
*Power*
*Power Supply*	*12V DC*
*Power Consumption*	*≤ 5 W (without HDD)*
*Component Environment*
*Operational Conditions*	*-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)*
*Construction*
*Dimensions*	*260mm × 240mm × 46mm (10.2″×9.4″×1.8″)*
*Net Weight*	*1kg (2.20 lb)*
*Warranty*
*Manufacturing Warranty*	*1 year Warranty*

Description

Uniview NVR301-08S2 8 Channel 4K NVR

Uniview NVR301-08S2 8 Channel 4K NVR features Ultra 265/H.265/H.264 video formats, and it has 8 channels Ultra 265/H.265/H.264 video format inputs. This 4K NVR support 1 channel HDMI and 1 channel VGA, and the HDMI at up to 4K (3840 x 2160) resolution, and it has HDMI and VGA ports simultaneously enabling video output to an external monitor. The Uniview NVR301-08S2 8 Channel 4K NVR device has a single SATA HDD slot with a maximum storage capacity of 8TB. This device supports Cloud upgrades. The audio output of this device is 1 channel RCA. The Uniview NVR301-08S2 feature ANR Technology to enhance the storage reliability when the network disconnect. This device has two USB2.0 first one has a Rear panel and the second one has a Front panel. The NVR301-08S2 8 Channel NVR supported other Third-party IP cameras with ONVIF conformance.This Uniview NVR301-08S2 8 Channel 4K NVR supported Third-party IP camera with ONVIF conformance Profile S, Profile G, and Profile T, and the network interface is 1RJ45 10M/100M self-adaptive Ethernet Interface. The Ultra 265/H.265/H.264 video codes ensure high-quality recording and playback.This Uniview NVR301-08S2 8 Channel 4K NVR device has 128 Remote connections and it comes with 50mbps Incoming Bandwidth and 40Mbps Outgoing Bandwidth. The device follows the protocols P2P, UPnP, NTP, PPPoE, and DHCP.The Uniview NVR301-08S2 8 Channel 4K NVR features Automatic Network Replenishment (ANR). This technology essential feature for Bosch security storage solutions andiIt helps avoid recording gaps. This ANR Technology ensures that video footage gets saved on an SD card in case of network failure. The footage will be auto-sent back onto the NVR once the network recovers.
