Specification
| Brand | Uniview | |
| Image Sensor | 1/3″, progressive scan, CMOS | |
| Effective Pixels | 4.0 Megapixel | |
| IR Distance | Up to 30m (98ft) | |
| Others | Minimum Illumination: Color: 0.003 lux ( F1.6, AGC ON), 0 Lux with light
Shutter: Auto/Manual, 1 ~ 1/100000s Adjustment angle: Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360° S/N: >52dB WDR: 120dB |
|
| Lens | ||
| Focal Length | 2.8mm | |
| Aperture | F1.6 | |
| Angle of View | Field of View (H): 112.9°
Field of View (V): 59.1° Field of View (D): 121.2° |
|
| Others | Cross line, intrusion(based on human body detection), Motion detection, Ultra motion detection, tampering alarm, audio detection
Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication |
|
| Physical Specification | ||
| Dimension | Φ118 x 96mm (Φ4.6” x 3.8”) | |
| Weight | 0.30kg (0.66lb) | |
| Power | DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 8.0W |
|
| Interface | 1 RJ45 10M/100M Base-TX Ethernet | |
| Others | Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Surge Protection: 4KV |
|
| Warranty | 01-Year Warranty | |
Description

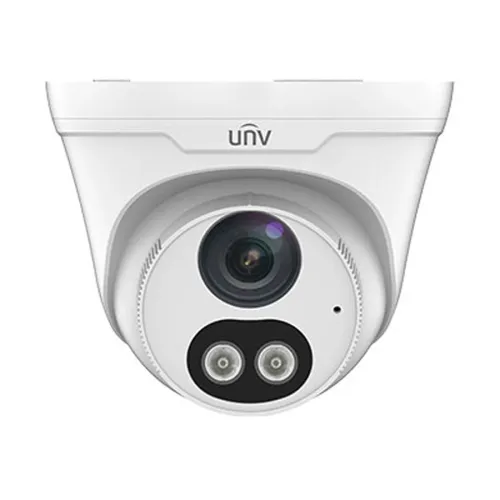

Uniview IPC3614LE-ADF28KC-WL 4MP IR Fixed Eyeball Dome IP Camera
The Uniview IPC3614LE-ADF28KC-WL 4MP IR Fixed Eyeball Dome IP Camera is an advanced surveillance solution designed to provide uncompromising image quality and versatility for all your security needs. This advanced camera is equipped with a high-quality 4MP (2688×1520) 1/3″ CMOS sensor, delivering crystal-clear and detailed video footage. Whether you require footage at different resolutions and frame rates, this camera has you covered, supporting 4MP @ 25/20fps, 3MP @ 30/25fps, and 2MP @ 30/25fps. Additionally, it offers multiple video compression options, including Ultra 265, H.265, H.264, and MJPEG, ensuring efficient storage and transmission of your video data. When it comes to challenging lighting conditions, the Uniview IPC3614LE-ADF28KC-WL camera excels. It features a remarkable 120dB true WDR (Wide Dynamic Range) technology, enabling it to capture clear images even in scenes with strong and contrasting light, ensuring that every detail is captured accurately. For applications requiring a vertical field of view, the camera supports a 9:16 Corridor Mode, allowing you to monitor narrow passageways or hallways effectively. This camera has a built-in microphone and speaker, enabling two-way audio communication, making it ideal for interactive surveillance applications. In low-light or nighttime scenarios, the Smart IR technology comes into play, providing an impressive IR distance of up to 30 meters (98 feet), ensuring that your surveillance remains effective around the clock. Additionally, it features a White Light feature, also with a 30-meter range, enhancing visibility in dark environments. Storage options are flexible, as the camera supports up to a 128 GB Micro SD card, providing convenient on-camera recording capabilities. Weather conditions won’t be a hindrance, as the camera boasts an IP67 protection rating, ensuring durability and reliability in outdoor environments. It’s also designed for easy installation with support for PoE (Power over Ethernet) power supply, simplifying cable management. To ensure you get the perfect angle for your surveillance needs, the Uniview IPC3614LE-ADF28KC-WL camera offers a 3-axis adjustment, allowing you to position it precisely in the desired direction. The Uniview IPC3614LE-ADF28KC-WL 4MP IR Fixed Eyeball Dome IP Camera is a top-tier security solution that combines high-quality imaging, versatile features, and robust construction. Whether you need to monitor your property day or night, in challenging lighting conditions, or in adverse weather, this camera delivers exceptional performance, making it an invaluable addition to your surveillance system.
