Specification
| Brand | Uniview | |
| Image Sensor | 1/2.8″, 2 megapixel, progressive scan, CMOS sensor | |
| IR Distance | Smart IR, up to 30m (98 ft) IR distance | |
| Others | Minimum Illumination: Color 0.03 Lux (F1.4, 50IRE)
Black & White 0.01Lux (F1.4, 50IRE) Shutter: Auto/Manual, 1/6~1/8000 s Material: Metal+Plastic |
|
| Lens | ||
| Type | 3 ~ 10.5 mm, F1.4 | |
| Angle of View | 102.4° (wide)~ 27.4° (tele) | |
| Others | Maximum Resolution: 1920 × 1080
Video Compression: H.264, MJPEG Frame Rate: 1080P (1920*1080) 30 fps, 720P (1280*720) 30 fps, D1 (720*576) 25 fps 9:16 Corridor Mode: Support ROI: Support Triple Video Streaming Edge Storage: Micro SD, Up to 64 GB |
|
| Physical Specification | ||
| Dimension | 282.6 ×90 ×86 mm (11.1” × 3.5” × 3.4”) | |
| Weight | 1.2 kg (2.6 lb) | |
| Power | 12 V DC, 24 V AC or PoE (IEEE802.3 af)
Power consumption: 4.5 W (11W with IR on) Audio Input: impedance 35 kΩ; amplitude 2 V *p-p] Audio Output: impedance 600 Ω; amplitude 2 V *p-p] Video Output: 1 BNC, impedance 75 Ω; amplitude 1 V *p-p] |
|
| Interface | 1 RJ45 10M/100M Base-TX Ethernet
3.5mm Audio Interface |
|
| Others | Working Environment: -40°C ~ +60°C (-40°F ~ 140°F), humidity ≤ 90% RH(non-condensing)
Protection: IP66 Dust and Water protection |
|
| Warranty | 1 Year Warranty | |
Description

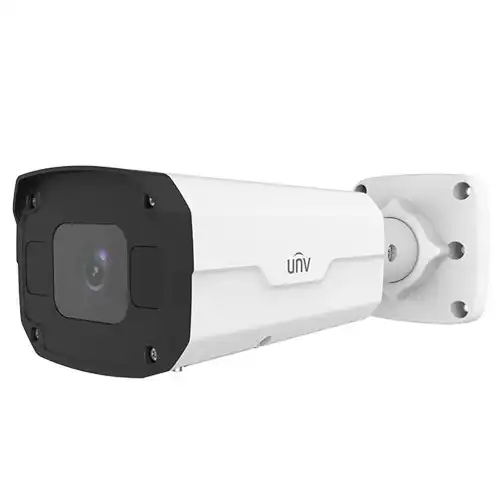

Uniview IPC242E-IR-Z-IN 2MP Motorized VF IR Bullet IP Camera
A Uniview IPC242E-IR-Z-IN 2MP Motorized VF IR Bullet IP Camera has a Built-in motorized lens for remote zoom and autofocus, an Optical glass window with higher light transmittance. This Uniview IP camera has an IR anti-reflection window to increase the infrared transmittance. The Uniview IPC242E-IR-Z-IN 2MP Motorized VF IR Bullet IP Camera structurally has AC 24V, DC 12V, and PoE with an uninterruptible power supply. This IP camera has a 2MP camera with a progressive scan and CMOS sensor. It gives a maximum 1920 x 1080 resolution video with H.264, MJPEG video format. The Uniview IPC242E-IR-Z-IN IP camera has industry-standard video streaming with 1080P (1920*1080) 30fps, 720P (1280*720) 30fps, D1 (720*576) 25fps frame rate and support 9:16 corridor mode. This Uniview IP camera has IP66 Water and dust protection. The Uniview IPC242E-IR-Z-IN 2MP Motorized VF IR Bullet IP Camera features the latest Motorized Variable Focal Lens. This Motorized variable focal lens provides remote control focal length You can remotely adjust your camera on your phone or NVR with a motorized lens. Optical zoom lets you never lose detail if you zoom in or out. The Uniview IPC242E-IR-Z-IN 2MP Motorized VF IR Bullet IP Camera has 6KV Surge Protection for Network Protection. This protection protects your camera from voltage spikes in AC.
