Specification
| Brand | Uniview | |
| Image Sensor | 1/2.8″, 2.0 megapixel, progressive scan, CMOS sensor | |
| IR Distance | Up to 50 meters (164ft) IR range | |
| Others | Minimum Illumination: Color: 0.01Lux ( F2.0, AGC ON) 0 Lux with IR
Shutter: Auto/Manual, 1 ~ 1/100000s WDR: 120dB Material: Metal + Plastic |
|
| Lens | ||
| Type | 4.0mm @2.0, Fixed-focal | |
| Angle of View | 78.7° x 42.8° x 96.8° | |
| Others | IR control: Auto/Manual
Defog: Digital Defog Video Bit Rate: 128 Kbps~16 Mbps S/N : >52dB DNR: 2D/3D HLC: Supported OSD: Up to 8 OSDs Privacy Mask: Up to 8 areas ROI: Up to 8 areas |
|
| Physical Specification | ||
| Dimension | 253.4 × 86 × 71.7mm (9.98” × 3.4” × 2.8”) | |
| Weight | 1.0kg (2.2lb) | |
| Power | DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 7.5W |
|
| Interface | 1 RJ45 10M/100M Base-TX Ethernet | |
| Others | Protection: IP67 Water & Dust Protection
Working Environment: -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Edge Storage: Micro SD, up to 256GB Network Storage: ANR |
|
| Warranty | 1 Year Warranty | |
Description

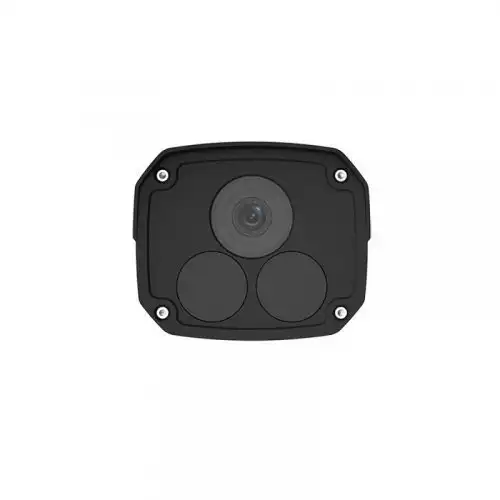

Uniview IPC2222EBR5-HDUPF40 2MP IR Bullet IP Camera
The Uniview IPC2222EBR5-HDUPF40 2MP IR Bullet IP Camera has a 4.0mm@F1.6 Fixed Lens and the IR distance is up to 50 meters (164ft). This Uniview has 120dB True WDR, the camera shutter is Auto/ Manual 1 ~ 1/ 100000s, and it has an IR anti-reflection window to increase the infrared transmittance. The Uniview IPC2222EBR5-HDUPF40 2MP IR Bullet IP Camera has an Embedded Digital Defog smart algorithm, it has 2D/3D DNR to Improve your Image quality and cancelation image noise when having low light settings or lower bandwidth and DNR saves storage. This IP camera features Starlight illumination for better image quality. This Uniview IPC2222EBR5-HDUPF40 has a structurally wide temperature range is -35°C to 60°C (-31°F to 140°F)and also ±25% wide voltage range. This camera features IP67 water and dust protection. It supports Triple streaming, Main stream frame rate is 2MP (1920*1080), Max 60fps, Sub streaming frame rate is 2MP (1920*1080), Max 30fps, and a Third streaming rate is D1 (720*576), Max 30fps. The Uniview IPC2222EBR5-HDUPF40 2MP IR Bullet IP Camera Embedded Smart image processing algorithm Digital Defog. This Digital Defog algorithm increases image quality when dealing with rain, mist, or foggy conditions.
