Specification
| Case Specification | |
| Model | View 300 MX |
| Cooling System | Front(intake): 200 x 200 x 30 mm ARGB PWM fan (1000rpm, 35.5 dBA) x 2 Rear(exhaust): |
| Type | Mid Tower |
| Tempered Glass Panel | 4mm Tempered Glass x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm 2 x 200mm, 1 x 200mm Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm 1 x 200mm Right(M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm (Without HDD Rack) Rear: 1 x 120mm |
| Drive Bays | 2 x 3.5”, 4 x 2.5” or 6 x 2.5” |
| Pre- Installed Fans | Pre-installed Two 200mm ARGB PWM Fans & One 120mm ARGB PWM Fan |
| Supports | |
| Motherboard Support | 6.7” x 6.7” (Mini ITX)
9.6” x 9.6” (Micro ATX) 12” x 9.6” (ATX) 12” x 13” (E-ATX) |
| Radiator Support | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Right(M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm(Without HDD Rack) Rear: 1 x 120mm |
| Ports & Slots | |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1
USB 3.0 x 2 HD Audio x 1 |
| Expansion Slots | 7 (Rotatable Patented Design) |
| Physical Specification | |
| Colors | Black |
| Materials | SPCC + ABS |
| Dimensions (W x D x H) | 505 x 230 x 506 mm |
| Weight | 10.4 kg |
| Warranty Information | |
| Warranty | 1 Year |
Description

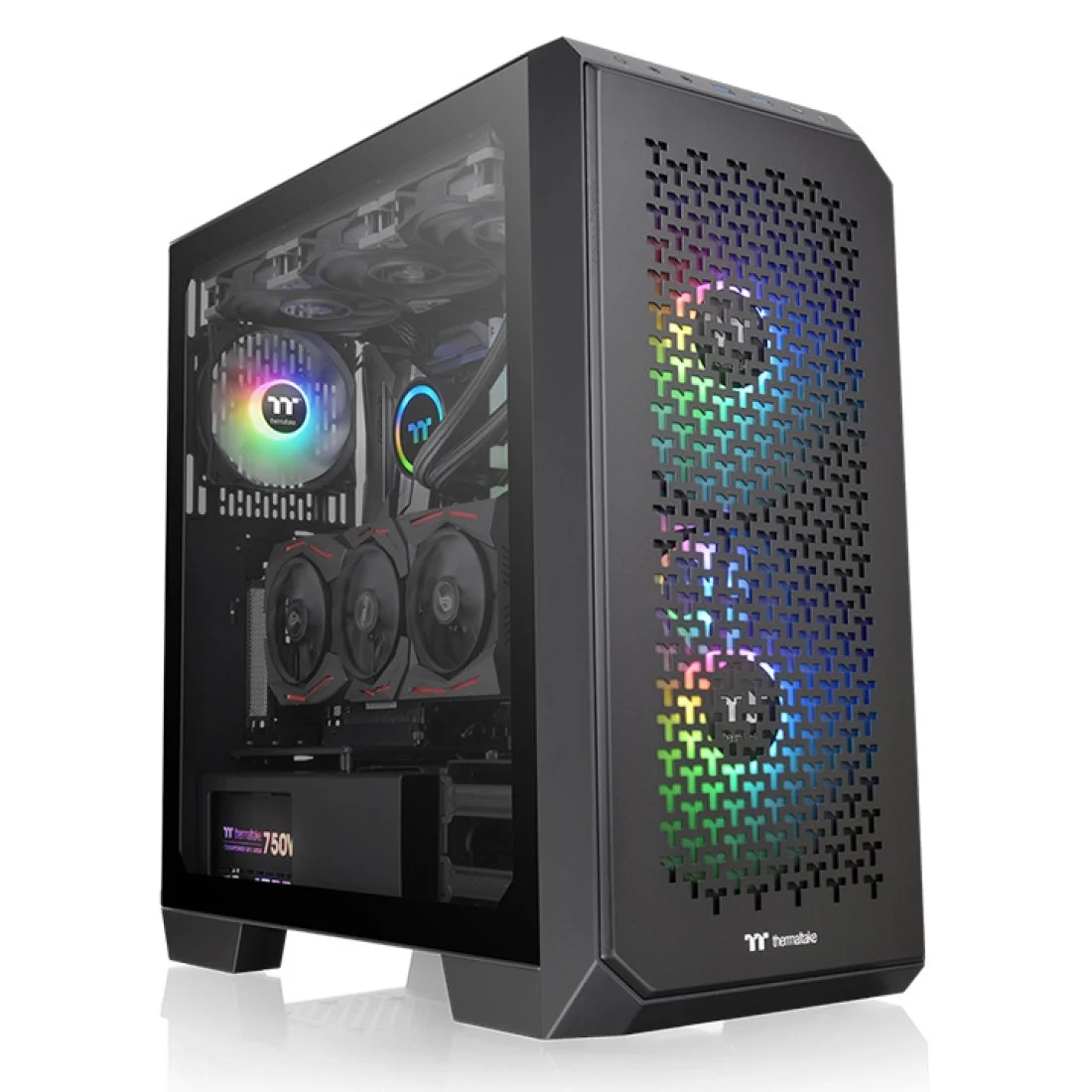

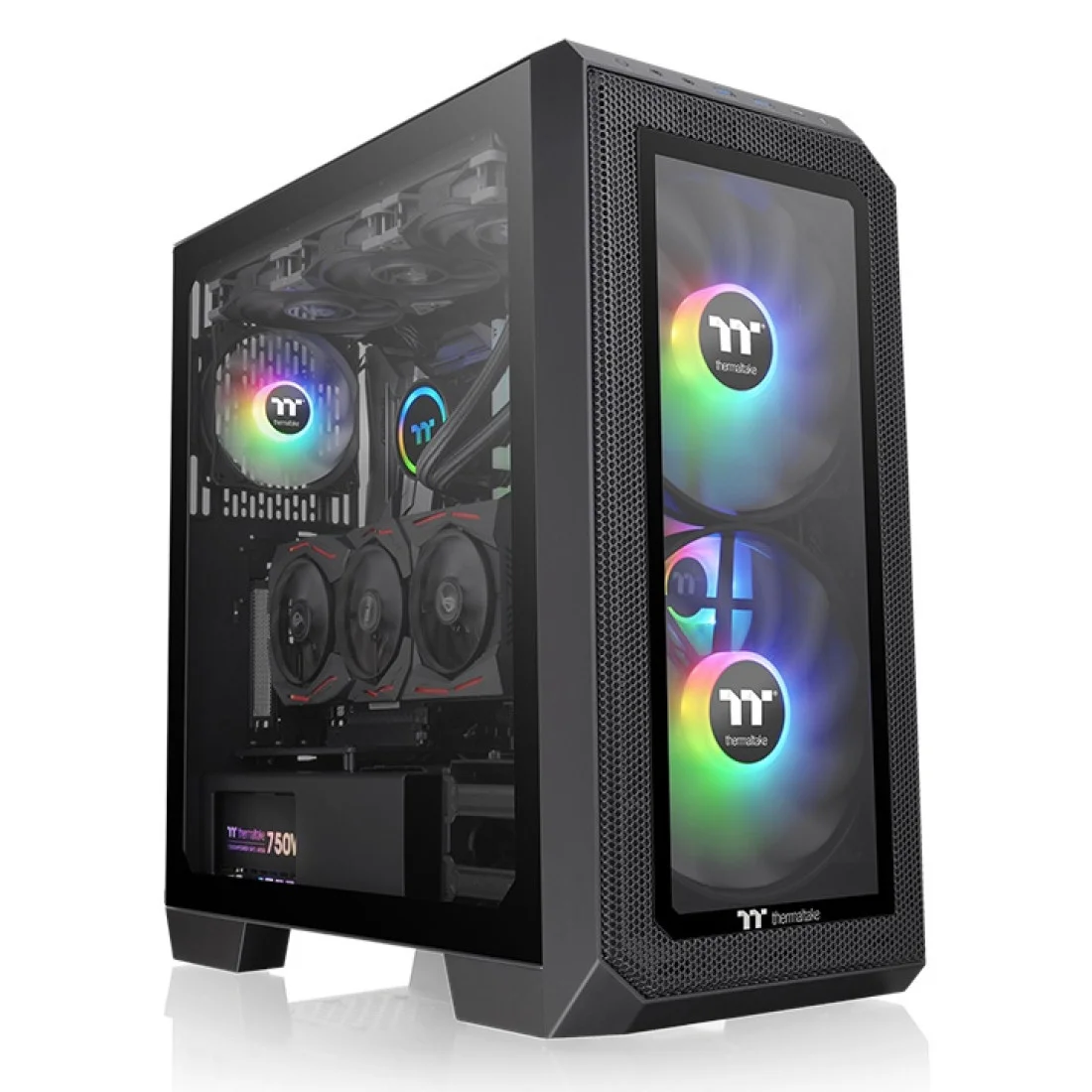

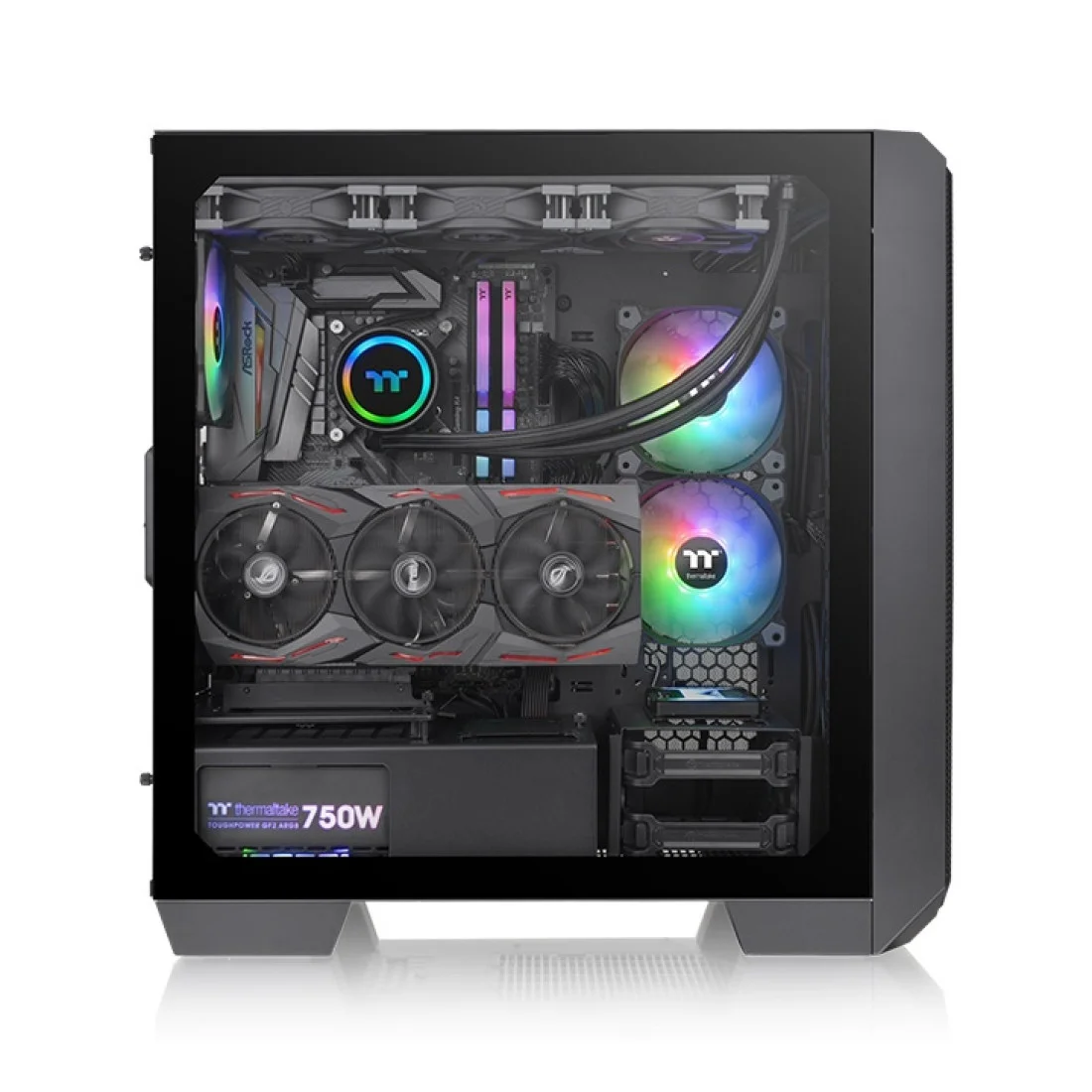

Thermaltake View 300 MX Mid Tower Chassis

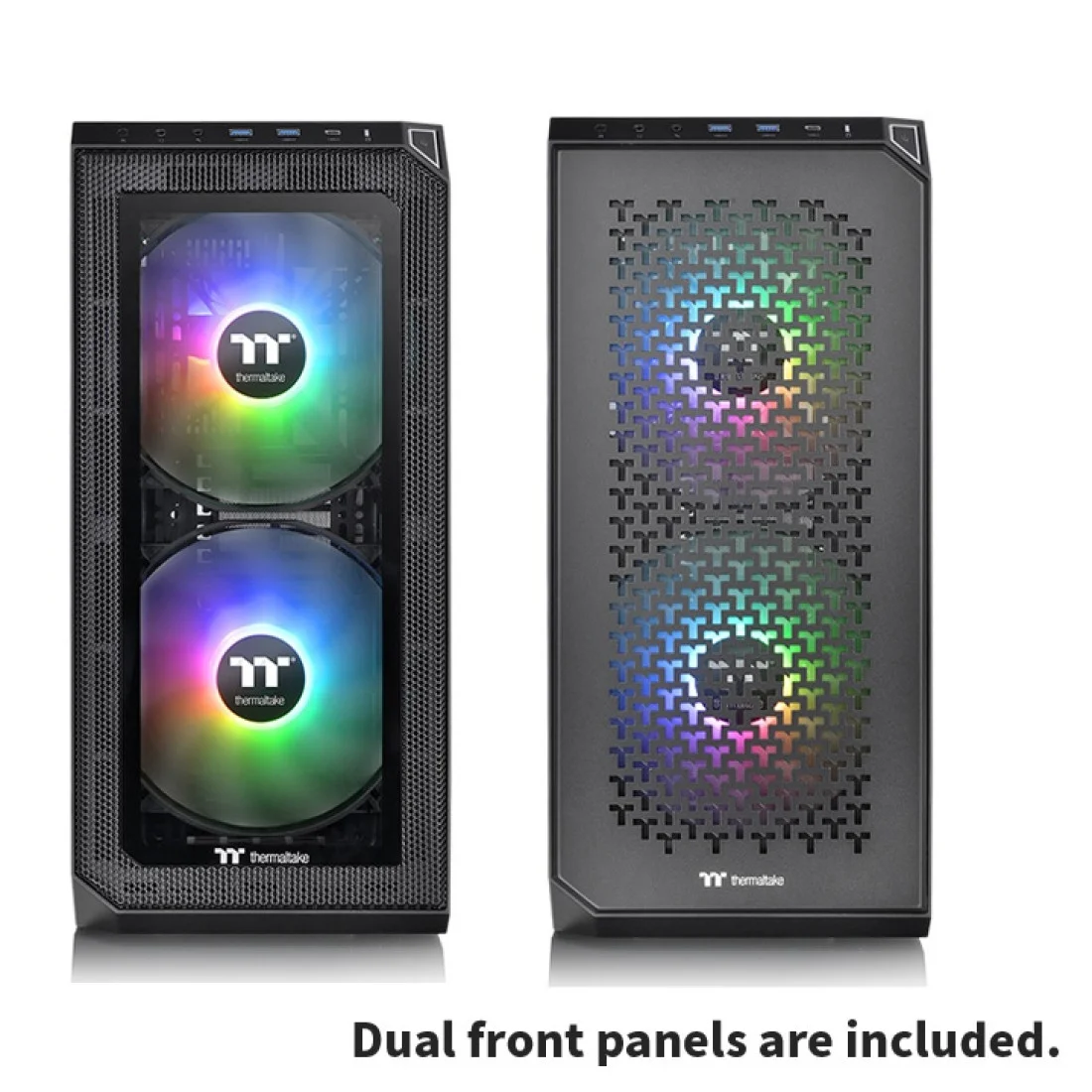

Designed with dual front panels and featuring two pre-installed 200mm ARGB PWM fans at the front and one 120mm ARGB PWM fan at the rear, the View 300 MX Mid-Tower Chassis provides optimal cooling performance while allowing you to choose your own style and front panel design. Designed to push the beloved View Series lineup to another level, the View 300 MX Mid-Tower Chassis features two pre-installed 200mm ARGB PWM fans in the front and one 120mm ARGB PWM fan at the rear to provide optimal cooling performance. Noteworthy, the View 300 MX series is the first chassis of the Thermaltake collection that comes with dual front panels, including a tempered glass panel and a perforated metal panel featuring the TT Logo, allowing users to choose their own style. Moreover, the View 300 MX features rotational PCI-E Slots, removable filters, a removable PSU cover, and supports up to E-ATX motherboards (12” x 13”), up to a 360mm Radiator on the front, top and M/B side. These merits make the View 300 MX an eye-catching chassis that is ideal for you to make your next build epic, high-performing, and one of a kind. Two 200mm ARGB PWM fans and one 120mm ARGB PWM fan are pre-installed, efficiently moving a considerable amount of air through the chassis with minor noise thanks to the fan speed control and through the PWM function. Furthermore, the LED lighting effect can be manipulated with a physical button or motherboard supported software. There are two front panels that come in the box: one tempered glass mesh panel for an outstanding look, and the other is a perforated steel panel with TT logo cutouts for better airflow. Two styles for users to choose, display your PC build the way you want. View 300 MX features exceptional cooling support, besides the two pre-installed 200mm ARGB PWM fans at the front and one pre-installed 120mm ARGB PWM fan at the rear, the View 300 MX can also house dual 360mm AIO radiators at the same time. Users can choose to place them at the front, top, and motherboard side, giving users opportunities to build their desired high-end system!
