Specification
| Brand | Noctua | |
| Fan Speed | Max. rotational speed (+/- 10%) : 1500 RPM
Max. rotational speed with L.N.A. (+/- 10%) : 1200 RPM Min. rotational speed (PWM, +/-20%) : 300 RPM |
|
| Fan Airflow | Max. airflow : 140,2 m³/h
Max. airflow with L.N.A. : 115,5 m³/h |
|
| Noise | Max. acoustical noise : 24,6 dB(A)
Max. acoustical noise with L.N.A. : 19,2 dB(A) |
|
| Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating | |
| Others | Input power: 1,56 W
Voltage range: 12 V MTTF: >150.000 h |
|
| Physical Specification | ||
| Dimension | Height (without fan) : 160 mm
Width (without fan) : 150 mm Depth (without fan) : 135 mm Height (with fan) : 160 mm Width (with fan) : 150 mm Depth (with fan) : 135 mm |
|
| Weight | Weight (without fan) : 980 g
Weight (with fan) : 1150 g |
|
| Supported Sockets | ||
| Intel | Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA1700 | |
| AMD | AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4 | |
| Warranty Information | ||
| Warranty | 06 Years Warranty | |
Description

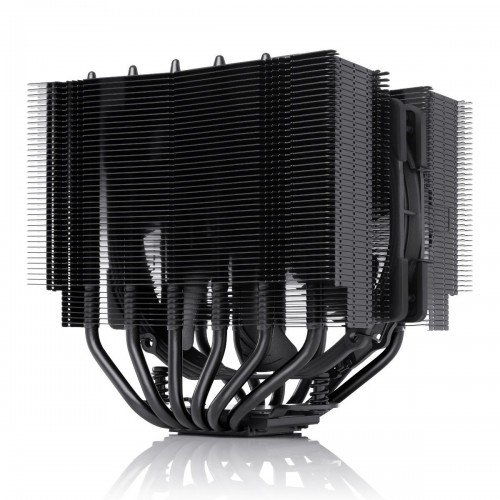

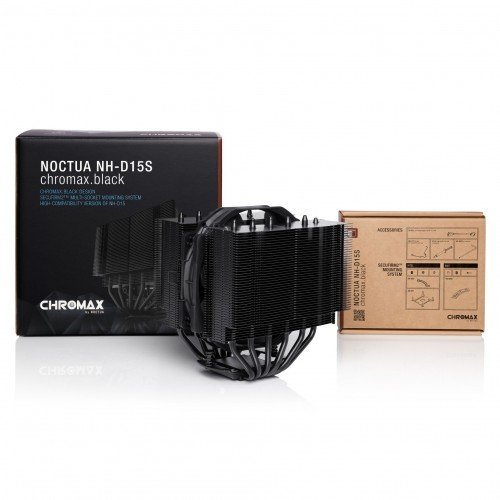

Noctua NH-D15S chromax.black Premium Dual-Tower CPU Cooler
The Noctua NH-D15S chromax.black is an all-black version of Noctua award-winning NH-D15S premium-quality quiet CPU cooler. The NH-D15S chromax.black is black from head to toe: featuring a black coated heatsink, black fans with black anti-vibration-pads, black fan clips, and black mounting parts, it right at home in all-black builds and easy to integrate with other color schemes. Thanks to the same asymmetrical dual-tower heatsink design and single NF-A15 PWM fan, it stays true to the NH-D15S successful formula of fusing dual-tower performance with excellent RAM, case, and PCIe compatibility. At the same time, the chromax.black version with its black fan and black coated heatsink combines these assets with a sleek stealth look. Topped off with the renowned SecuFirm2 multi-socket mounting system, the NH-D15S chromax.black is a premium choice for customers who seek a highly compatible dual-tower heatsink that looks just as great as it cools. The NH-D15S provides 65mm clearance for RAM with tall heatspreaders or RGB illumination, making it compatible with most high-end modules on the market. As the lower fins are recessed on both sides of the heatsink, compatibility is excellent not only on LGA115x and AMD but also on LGA20xx where there are RAM slots on both sides of the socket. The NH-D15S can be upgraded with either a second round-frame 140mm fan with 120mm mounting holes (such as the NF-A15) for maximum performance or a common 120mm fan (such as the NF-F12) for improving performance while maintaining compatibility with RAM modules of up to 45mm height. The NF-A15 premium fan supplied with the NH-D15S supports PWM for convenient automatic speed control through the motherboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor for even quieter operation. The Noctua NH-D15S chromax.black comes with 6 years of warranty.
