Netac Basic DDR3 4GB 1600MHZ Desktop RAM

Specification

Description

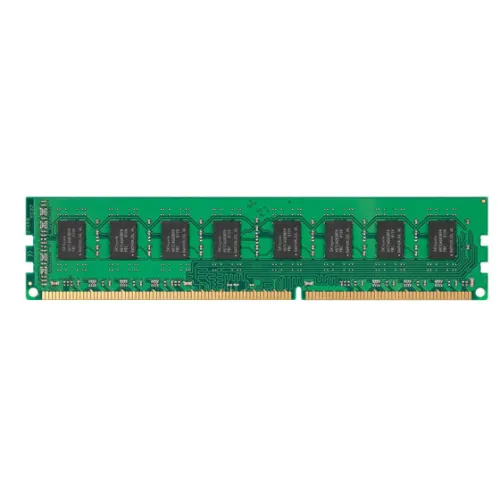

Netac Basic DDR3 4GB 1600MHZ Desktop RAM

The Netac Basic DDR3 4GB 1600MHZ Desktop RAM is a high-speed memory module that utilizes DDR3 SDRAM devices for low-power consumption. This Unbuffered DDR3 SDRAM DIMM has a 240-pin design with gold contact fingers, and its SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.5V. The RAM is equipped with 8 independent internal banks and an 8-bit prefetch for fast and efficient data transfer. It also features programmable CAS Latency and Additive Latency, which can be set to values ranging from 6 to 11. The Burst Length can be set to 8 or 4, and it has a bi-directional differential data strobe. This Unbuffered DIMM is intended for use as the main memory in systems such as PCs. It has a PCB height of 1.18″ (30mm) and is RoHS-compliant and halogen-free. The RAM also features on-die termination using an ODT pin, internal self-calibration through a ZQ pin, and adjustable data-output drive strength. The average refresh period of the Netac Basic DDR3 4GB 1600MHZ Desktop RAM is 7. 8us at lower than TCASE 85°C and 3.9us at 85°C < TCASE < 95°C, with asynchronous reset and fly-by topology. It has a power supply of VDD=1.5V (1.425V to 1.575V) and VDDQ=1.5V (1.425V to 1.575V) and supports 800MHz fCK for 1600Mb/sec/pin.
