Specification
| Brand | MSI | |
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold, and Celeron Processors
LGA 1700 |
|
| Chipset | INTEL Z790 | |
| Form Factor | ATX Form Factor
243.84mmx304.8mm |
|
| Audio | Realtek ALC897 Codec
7.1-Channel High-Definition Audio |
|
| Expansion Slots | ||
| PCI | 3x PCI-E x16 slot
1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 PCIe 3.0 supports up to x1 (From Chipset) |
|
| M.2 Socket | 4x M.2 slot | |
| Memory | ||
| Type | DDR4 | |
| Supported Memory | 4x DDR4, Maximum Memory Capacity 128GB
Max. overclocking frequency: 1DPC 1R Max speed up to 5333+ MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1x HDMI
1x DisplayPort Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, the maximum resolution of 4K 60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| Display Port (s) | 1x DisplayPort 1.4 | |
| USB (s) | 4x USB 2.0 (Rear)
4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
|
| LAN Port (s) | Intel 2.5Gbps LAN | |
| Wireless Communication module | Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA |
|
| Supported Storage | 4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G port |
|
| Audio | 1x Front Audio (JAUD) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 4x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | LED FEATURE: 4x EZ Debug LED | |
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |
Description

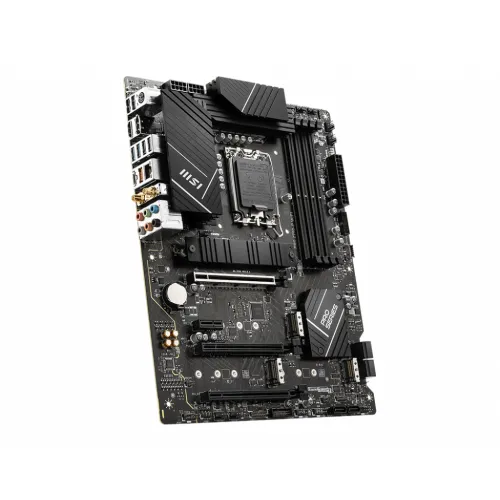

MSI PRO Z790-P WIFI DDR4 ATX Motherboard
The MSI PRO Z790-P WIFI DDR4 LGA 1700 ATX Motherboard offers sufficient connection and performance. This 14th Gen motherboard, which uses the Intel Z790 chipset and the LGA 1700 socket, has four DDR4 RAM slots that allow dual-channel memory and can be overclocked to 5333 MHz. Six SATA III and four M.2 connections offer storage space and enable RAID 0, 1, 5, and 10. Install GPUs or other adaptor cards through PCIe 5.0 x16, PCIe 4.0 x16, PCIe 3.0 x16, and PCIe 3.0 x1 slots. Take advantage of speedy networking with a 2.5 GbE Intel LAN and Wi-Fi 6E; connect to wireless peripherals in a flash with Bluetooth 5.2. The Realtek ALC897 audio codec offers 7.1 channel surround sound, including rear analog output connectors. Connect connected peripherals through a USB 3.2 Gen 2×2 Type-C connector, two USB 3.2 Gen 1 ports, and four USB 2.0 Type-A connections. There is also a PS/2 port for connecting to older devices. DisplayPort and HDMI are used to output video. A Flash BIOS button is also located on the rear I/O panel, and internal headers support front-panel USB 3.2 Gen 2 Type-C and USB 3.2 Gen 1 and 2.0 Type-A ports, RGB connections, chassis intrusion, a TPM module, and other features. The MSI PRO Z790-P WIFI DDR4 ATX Motherboard comes with a 03-year warranty.
