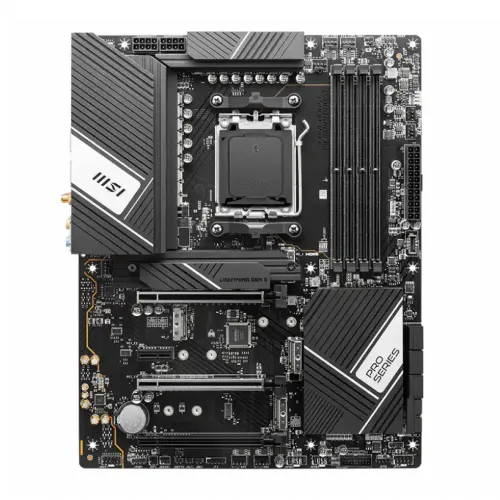

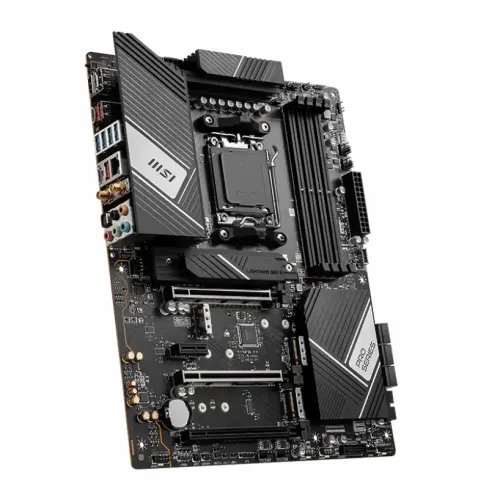

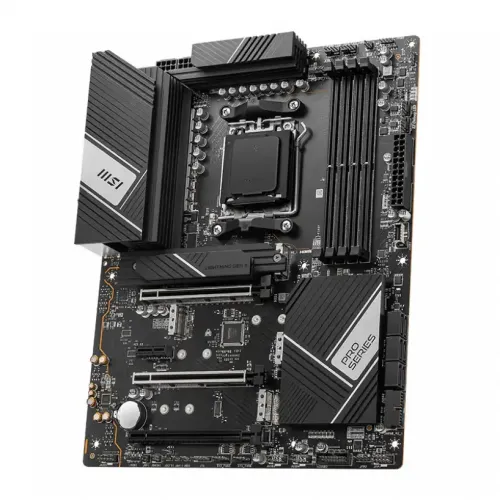

MSI PRO X670-P WIFI DDR5 AMD AM5 ATX Motherboard

Key Features
Model: PRO X670-P WIFI
Supported RAM: 4x DDR5, Max 128GB
Features: 2.5G LAN with Wi-Fi 6E Solution
Graphics Output: 1x HDMI, 1x Display Port, 1x Type-C Display port
Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5

Out of stock

Add to compare

Add to wishlist

20 People watching this product now!

Specification and Description

Specification

*Brand*	*MSI*
*Supported CPU*	*Supports AMD Ryzen 8000 & 7000 Series Desktop Processors* *Socket AM5*
*Chipset*	*AMD X670*
*Form Factor*	*ATX* *243.84mmx304.8mm*
*Audio*	*Realtek ALC4080 Codec* *7.1-Channel High Definition Audio* *Supports S/PDIF output* *Supports up to 32-Bit/384 kHz playback on front panel*
*Expansion Slots*
*PCI*	*3x PCI-E x16 slot* *Supports x16/x4/x2* *1x PCI-E x1 slot* *PCI_E1 PCIe 4.0 supports up to x16 (From CPU)* *PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)* *PCI_E3 PCIe 4.0 supports up to x4 (From CPU)* *PCI_E4 PCIe 4.0 supports up to x2 (From Chipset)*
*Memory*
*Type*	*DDR5*
*Slots*	*4 DIMMs*
*Supported Memory*	*Dual Channel DDR5*
*Maximum Memory*	*128GB*
*Graphics*
*Graphics*	*1x HDMI* *Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz* *1x Display Port* *Supports DP1.4, maximum resolution of 4K 60Hz* *1x Type-C Display port* *Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz*

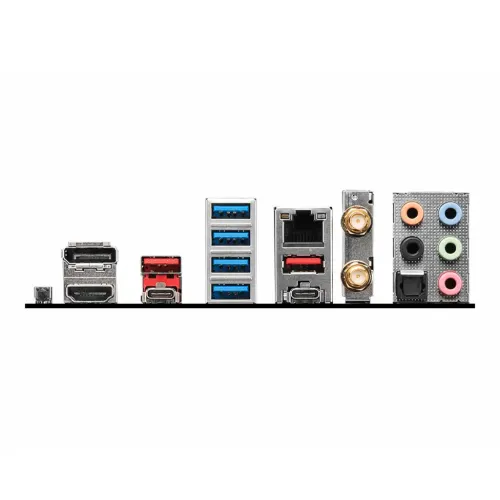

*Connector & Ports*
*HDMI*	*1x HDMI*
*Display Port (s)*	*1x Display Port*
*USB (s)*	*4x USB 2.0 ports (Front)* *4x USB 3.2 Gen1 Type A ports (Rear)* *4x USB 3.2 Gen1 Type A ports (Front)* *2x USB 3.2 Gen2 Type A ports (Rear)* *1x USB 3.2 Gen2 Type C ports (Rear)* *1x USB 3.2 Gen2 Type C ports (Front)* *1x USB 3.2 Gen2x2 Type C ports (Rear)*
*LAN Port (s)*	*Realtek RTL8125BG 2.5G LAN*
*Wireless Communication module*	*AMD Wi-Fi 6E* *The Wireless module is pre-installed in the M.2 (Key-E) slot* *Supports MU-MIMO TX/RX* **Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands* Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2**
*Supported Storage*	*4x M.2 slot* *M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices* *M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices* *M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices* *M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices* *6x SATA 6G port*
*RAID*	*Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices* *Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
*Internal I/O Ports*	*1x Power Connector(ATX_PWR)* *2x Power Connector(CPU_PWR)* *1x CPU Fan* *1x Pump Fan* *6x System Fan* *2x Front Panel (JFP)* *1x Chassis Intrusion (JCI)* *1x Front Audio (JAUD)* *1x Tuning Controller connector(JDASH)* *2x Addressable V2 RGB LED connector (JARGB_V2)* *2x RGB LED connector(JRGB)* *4x USB 2.0 ports* *4x USB 3.2 Gen1 Type A ports* *1x USB 3.2 Gen2 Type C ports*
*Warranty Information*
*Manufacturing Warranty*	*3 Years*

Description

MSI PRO X670-P WIFI DDR5 AMD AM5 ATX Motherboard

The MSI PRO X670-P WIFI Motherboard supports AMD’s Ryzen 8000 & 7000-series processors with up to 16 Zen 4 cores as well as dual-channel DDR5 memory, with a Maximum Memory Capacity of up to 128GB. It features a 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost. It has an extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and Double-sided M.2 Shield Frozr are built for a high-performance system and a non-stop gaming experience. The motherboard is made of an 8-layer PCB made of 2oz thickened copper and server-grade level material. The MSI PRO X670-P WIFI Motherboard offers onboard and exclusive M.2 XPANDER-Z GEN5 DUAL PCI-Express card offer totally sextuple M.2 connectors for maximum storage performance. It can deliver a lightning-fast game experience with PCIe 4.0 slots, Lightning Gen 5 x4 M.2, and USB 3.2 Gen 2×2. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster. The rear I/O panel now offers easy ways of directly entering the safe boot, a one-click toggle for all RGB lights, and directly activating Turbo mode. The MSI PRO X670-P WIFI offers 2x PCIe Gen 5 x16 slots and 4x M.2 slots. The MEG series offers a stacked fin array heatsink and a heatpipe along with a MOSFET baseplate for effective heat dissipation from the VRMs. The MSI PRO X670-P WIFI Motherboard comes with 3 years of warranty.
