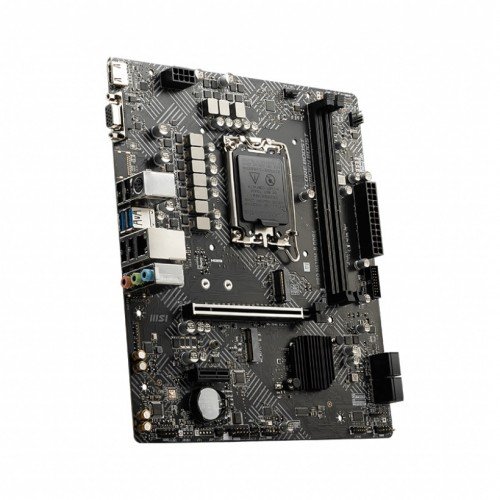

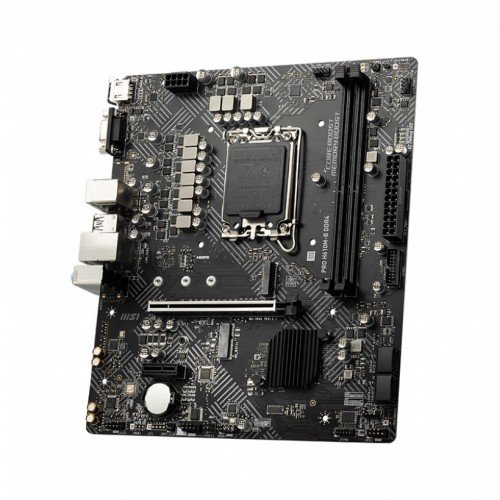

MSI PRO H610M-B DDR4 Micro-ATX Motherboard

Key Features
Model: PRO H610M-B DDR4
Lightning Fast Experience: PCIe 4.0
Core Boost, Memory Boost, Audio Boost
Supports DDR4 Memory, up to 3200(MAX) MHz
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)

Out of stock

Add to compare

Add to wishlist

10 People watching this product now!

Specification and Description

Specification

Brand	MSI
Supported CPU	Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package
Chipset	Intel H610 Chipset
Form Factor	M-ATX Form Factor 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)
Audio	Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio
*Expansion Slots*
PCI	1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot Supports PCIe 3.0 x1 1x M.2 slot with E-key for PCIe WiFi module only (M2_WIFI1)
*Memory*
Type	DDR4
Slots	2x DDR4 memory slots
Supported Memory	3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	Support up to 64GB
*Graphics*
Graphics	1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed.

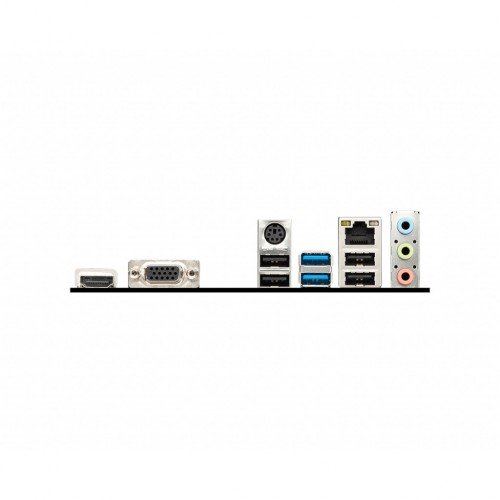

*Connector & Ports*
HDMI	1x HDMI 2.1
VGA (s)	1x VGA port
USB (s)	Intel H610 Chipset: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
LAN Port (s)	1x Intel I219V 1Gbps LAN controller
Supported Storage	1x M.2 slot (Key M, from chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core processors
Internal I/O Ports	POWER CONNECTORS: 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector FAN CONNECTORS: 1x 4-pin CPU fan connector 1x 4-pin system fan connector SYSTEM CONNECTORS: 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector JUMPERS: 1x Clear CMOS jumper LED FEATURES: 4x EZ Debug LED
TPM (Trusted Platform Module )	1x TPM module connector
*Warranty Information*
Manufacturing Warranty	3 years

Description

MSI PRO H610M-B DDR4 Micro-ATX Motherboard

The MSI PRO H610M-B DDR4 features LGA1700 socket support for 14th, 13th, and 12th generation Intel Core, Pentium Gold, and Celeron Processors. It comes with dual-channel non-ECC unbuffered DDR4 and 2 DIMMs. It has a 6+1+1 hybrid digital VRM design. Solid capacitors to improve transient response and minimize oscillation. It is equipped with a Realtek 8118 LAN, a high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It features solid-plated ATX 12V 8-pin power connectors to offer a stable power supply during CPU overloading. It has Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with Fan Stop. It is designed with HDMI and D-Sub ports for multiple displays. The MSI PRO H610M-B DDR4 motherboard comes with a 3-year warranty.
