Specification
| Basic Information | ||
| Brand | MSI | |
| Chipset | INTEL B760 | |
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA 1700 |
|
| Audio | Realtek ALC897 Codec
7.1-Channel High-Definition Audio |
|
| Form Factor | mATX
220mmx243.84mm |
|
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot
1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 4.0 supports up to (From Chipset) |
|
| Memory | ||
| Slots | 2 | |
| Type | DDR5 | |
| Supported Memory | DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
|
| Maximum Memory | 96GB | |
| Graphics | ||
| Graphics | 1x HDMI
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz |
|
| Connector & Ports | ||
| Display Port (s) | 1x DisplayPort | |
| HDMI | 1x HDMI | |
| VGA (s) | 1x VGA | |
| USB (s) | 2x USB 2.0 (Rear)
4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
|
| Supported Storage | 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| LAN Port (s) | Realtek RTL8125B 2.5Gbps LAN | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | 4x EZ Debug LED | |
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |
Description

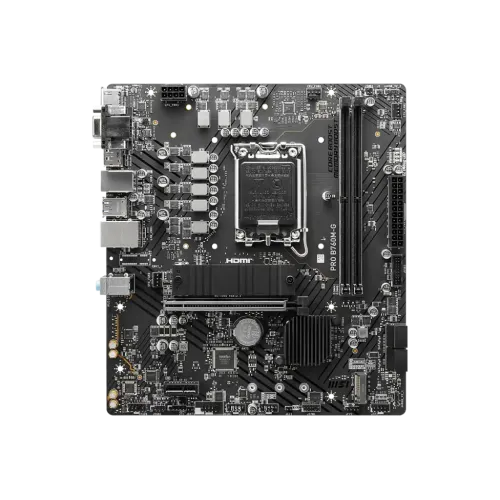

MSI PRO B760M-G mATX Motherboard
The MSI PRO B760M-G is a micro-ATX motherboard with an LGA 1700 socket that supports 14th, 13th and 12th-generation Intel Core, Pentium Gold, and Celeron CPUs. For quicker performance, it supports DDR5 memory and has Dual-channel DDR5 6400+(OC) capabilities. Core Boost, a premium layout, and a digital power architecture enable the motherboard to accommodate more cores and give higher performance. Memory Boost, an innovative technology that produces pure data signals for the highest performance, stability, and compatibility, is also incorporated. The 14th Gen Motherboard has PCIe 4.0 and Lightning Gen4 x4 M.2 for a lightning-fast experience. This enables faster data transmission rates and enhanced performance for gaming and other high-performance applications. It comes with an upgraded network solution for professional and multimedia use. Delivers a secure, stable, and fast network connection. The motherboard has AUDIO BOOST, which delivers studio-quality sound for the most immersive gaming experience. Steel Armor is also incorporated to prevent VGA cards from bending and EMI, resulting in improved performance, stability, and strength.
