| Specification | |
| Brand | MSI |
| Supported CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold And Celeron Processors LGA 1700 |
| Mainboard | |
| Chipset | INTEL Z790 |
| Memory | |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 192GB
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. Overclocking Frequency: • 1DPC 1R Max Speed Up To 7800+ MHz • 1DPC 2R Max Speed Up To 6600+ MHz • 2DPC 1R Max Speed Up To 6400+ MHz • 2DPC 2R Max Speed Up To 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel Mode Supports Non-ECC, Un-Buffered Memory |
| Storage | |
| Supported Storage | 5x M.2
M.2_1 Source (From CPU) Supports Up To PCIe 5.0 X4 , Supports 22110/2280/2260 Devices M.2_2 Source (From Chipset) Supports Up To PCIe 4.0 X4 , Supports 2280/2260 Devices M.2_3 Source (From Chipset) Supports Up To PCIe 4.0 X4 / SATA Mode, Supports 2280/2260/2242 Devices M.2_4 Source (From Chipset) Supports Up To PCIe 4.0 X4 , Supports 2280/2260/2242 Devices M.2_5 Source (From Chipset) Supports Up To PCIe 4.0 X4 , Supports 2280/2260 Devices 8x SATA 6G |
| Graphics | |
| Graphics | 1x HDMI Support HDMI™ 2.1, Maximum Resolution Of 4K 60Hz*
1x DisplayPort Support DP 1.4, Maximum Resolution Of 8K 60Hz* |
| Audio & Microphone | |
| Audio | Realtek ALC4080 Codec
7.1-Channel USB High Performance Audio Supports Up To 32-Bit/384 KHz Playback On Front Panel |
| Networking & Connectivity | |
| LAN | Intel 2.5Gbps LAN |
| Bluetooth | Supports Bluetooth 5.4**, MLO, 4KQAM |
| Ports | |
| Slots | 2x PCI-E X16 Slot
1x PCI-E X1 Slot PCI_E1 Gen PCIe 5.0 Supports Up To X16 (From CPU) PCI_E2 Gen PCIe 3.0 Supports Up To X1 (From Chipset) PCI_E3 Gen PCIe 4.0 Supports Up To X4 (From Chipset) |
| Internal I/O Ports | 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT Connector (JTBT, Supports RTD3) 1x Tuning Controller Connector(JDASH) 3x Addressable V2 RGB LED Connector (JARGB_V2) 1x RGB LED Connector(JRGB) 1x TPM Pin Header(Support TPM 2.0) 4x USB 2.0 Ports 2x USB 3.2 Gen1 Type A Ports 1x USB 3.2 Gen2 Type C Ports 1x ARGB+FAN Header (JAF_1) 1x USB4 Card Connector (JTBT_U4_1, Supports RTD3) |
| USB | 4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| Technical Info | |
| BIOS | Clear CMOS
Flash BIOS |
| Special Features | |
| Special Features | 4x EZ Debug LED
1x EZ LED Control Switch |
| Physical Specification | |
| Form Factor | ATX
243.84mmx304.8mm |
| Warranty Information | |
| Warranty | 3 Years |
Description

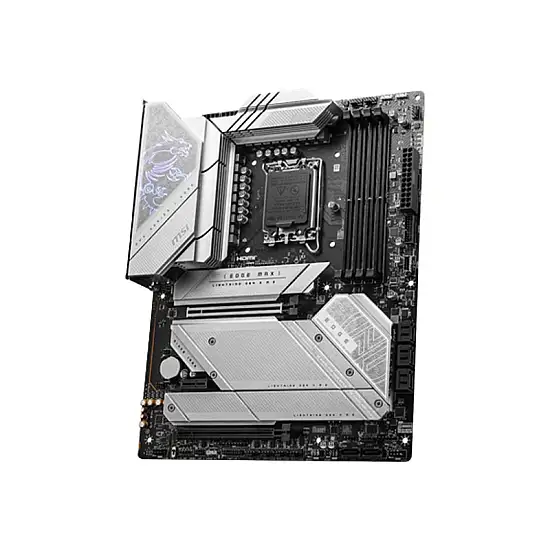

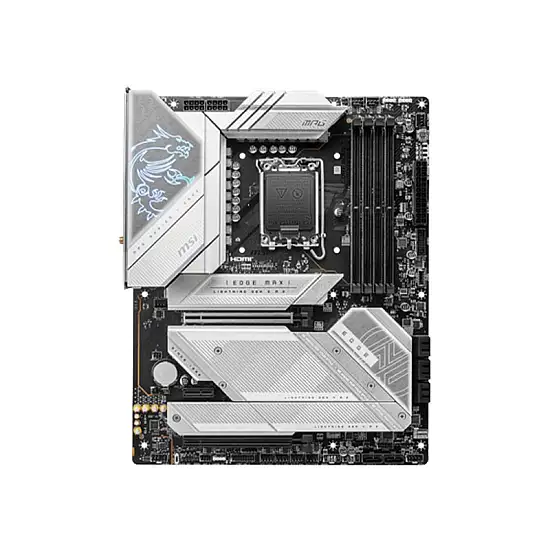

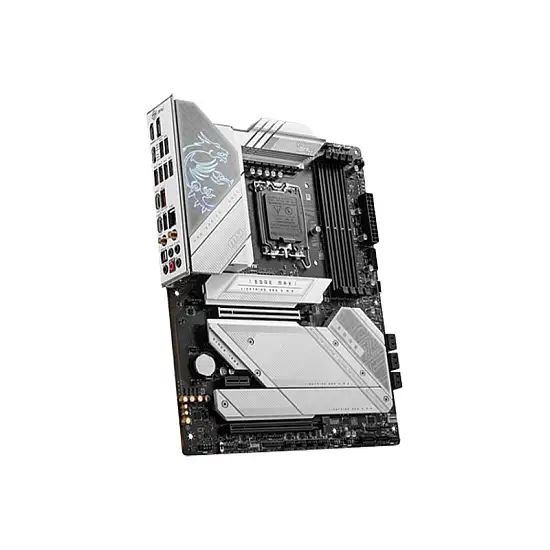

Msi MMPG Z790 EDGE TI MAX WIFI Motherboard
The MSI MPG Z790 EDGE TI MAX WIFI motherboard is a feature-rich, high-performance motherboard made to meet the needs of professionals, gamers, and enthusiasts. It is powered by the Intel Z790 chipset and supports a wide range of Intel processors, including the most recent 14th, 13th, and 12th generation Core processors, as well as Intel Pentium Gold and Celeron processors. With its LGA 1700 socket, this motherboard offers a strong base for building a potent PC. This motherboard provides outstanding memory support with four DDR5 UDIMM slots and a maximum memory capacity of 192GB. It is ideal for memory-intensive tasks and applications because it can handle memory speeds that go up to 7800 MHz (OC). Memory performance is further improved by support for Intel XMP3.0 OC and dual-controller dual-channel mode. The motherboard has graphics ports for DisplayPort 1.4 and HDMI 2.1, which provide 4K 60Hz and 8K 60Hz resolutions, respectively (available with processors featuring integrated graphics). It ensures stunning visuals and high-quality display capabilities for gaming and content creation. Expansion slots include two PCIe x16 slots and one PCIe x1 slot, allowing for multiple graphics cards and other expansion cards. Notably, the PCIe 5.0 support in the first slot provides high-speed data transfer rates, and the many M.2 slots and SATA ports offer abundant storage options. The motherboard can handle various RAID configurations for each SATA and M.2 NVMe storage devices. Networking is top-notch, with an Intel 2.5Gbps LAN and a Wi-Fi 7 solution that supports Wi-Fi 6GHz (320MHz) for ultra-fast wireless connectivity. likewise, the Realtek ALC4080 audio codec provides 7.1-channel USB high-performance audio, ensuring an immersive audio experience. The MSI MPG Z790 EDGE TI MAX WIFI motherboard comes with a user-friendly internal I/O layout, multiple fan headers for efficient cooling, and support for addressable RGB LEDs for customizable lighting effects. It also features an EZ-Debug LED for easy troubleshooting. This motherboard is a powerhouse of performance and versatility, making it an excellent choice for those looking to build a high-end PC. Its support for the latest Intel processors, fast memory, advanced connectivity options, and extensive storage capabilities make it a go-to option for gaming, content creation, and demanding professional tasks. Elevate your computing experience with this feature-packed motherboard from MSI.
