MSI MPG Z790 CARBON WIFI ATX Motherboard

Name: MSI MPG Z790 CARBON WIFI ATX Motherboard
SKU: 21877
Availability: InStock

Original price was: 57,200.00 ৳ .Current price is: 52,700.00 ৳ .

Key Features
Model: MPG Z790 CARBON WIFI
Graphics Output: 1x HDMI
Supported RAM: 4x DDR5, Max 128GB, 7600+(OC) MHz
Features: 2.5G LAN and Intel Wi-Fi 6E Solution
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)

Add to compare

Add to wishlist

15 People watching this product now!

Specification and Description

Specification

*Brand*	*MSI*
*Chipset*	*INTEL Z790*
*Supported CPU*	*Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors* *LGA 1700*
*Form Factor*	*ATX* *243.84mmx304.8mm*
*Audio*	*Realtek ALC4080 Codec* *7.1-Channel USB High Performance Audio* *Supports up to 32-Bit/384 kHz playback on front panel*
*Expansion Slots*
*PCI*	*2x PCI-E x16 slot* *1x PCI-E x1 slot* *PCI_E1 PCIe 5.0 supports up to x16 (From CPU)* *PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)* *PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)*
*Memory*
*Slots*	*4 x DIMM*
*Type*	*DDR5*
*Supported Memory*	*7600+(OC)/ 7400 (OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC) /4800(JEDEC) MHz* *Max. overclocking frequency:* *• 1DPC 1R Max speed up to 7600+ MHz* *• 1DPC 2R Max speed up to 6600+ MHz* *• 2DPC 1R Max speed up to 6400+ MHz* *• 2DPC 2R Max speed up to 5600+ MHz* *Supports Intel XMP3.0 OC* *Supports Dual-Controller Dual-Channel mode* *Supports non-ECC, un-buffered memory*
*Maximum Memory*	*128GB*
*Graphics*
*Graphics*	*1x HDMI* *Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz*
*Connector & Ports*
*HDMI*	*1x HDMI*

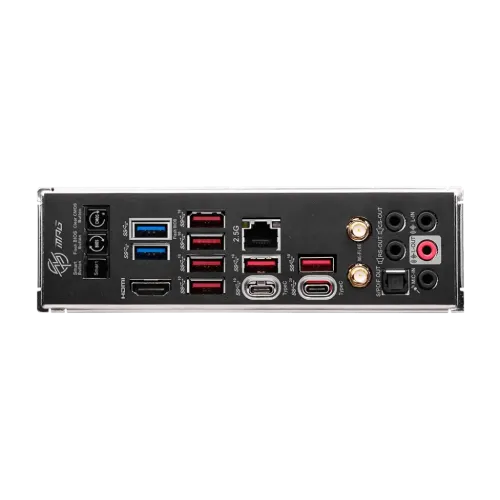

*USB (s)*	*4x USB 2.0 (Front)* *2x USB 3.2 Gen1 Type A (Rear)* *2x USB 3.2 Gen1 Type A (Front)* *6x USB 3.2 Gen2 Type A (Rear)* *1x USB 3.2 Gen2 Type C (Rear)* *1x USB 3.2 Gen2x2 Type C (Rear)* *1x USB 3.2 Gen2x2 Type C (Front)*
*LAN Port (s)*	*Intel 2.5Gbps LAN*
*Wireless Communication module*	*Intel Wi-Fi 6E* *The Wireless module is pre-installed in the M.2 (Key-E) slot* **Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps* Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA**
*Supported Storage*	*5x M.2 slot* *M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices* *M.2_2 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices* *M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices* *M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices* *M.2_5 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices* *6x SATA 6G port*
*RAID*	*Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices* *Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices* * SATA_A1~A2 do not support RAID function.
*Audio*	*Audio Connectors*
*Internal I/O Ports*	*1x Power Connector(ATX_PWR)* *2x Power Connector(CPU_PWR)* *1x CPU Fan* *1x Pump Fan* *5x System Fan* *2x Front Panel (JFP)* *1x Chassis Intrusion (JCI)* *1x Front Audio (JAUD)* *1x TBT connector (JTBT, supports RTD3)* *1x Tuning Controller connector(JDASH)* *2x Addressable V2 RGB LED connector (JARGB_V2)* *1x RGB LED connector(JRGB)* *4x USB 2.0* *2x USB 3.2 Gen1 Type A* *1x USB 3.2 Gen 2×2 Type C*
*TPM (Trusted Platform Module )*	*1x TPM pin header(Support TPM 2.0)*
*Others*
*Special Features*	*1x EZ LED Control switch* *1x 2-Digit Debug Code LED* *4x EZ Debug LED*
*Warranty Information*
*Manufacturing Warranty*	*3 years*

Description

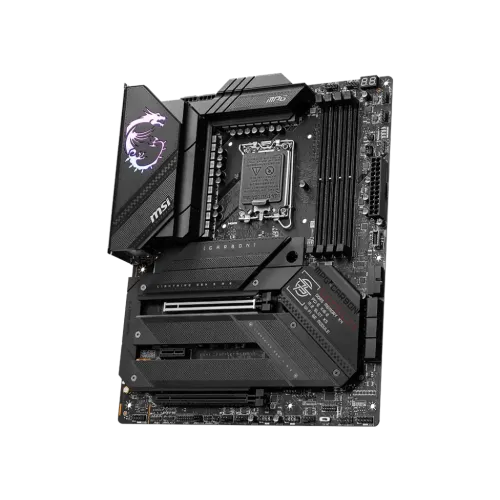

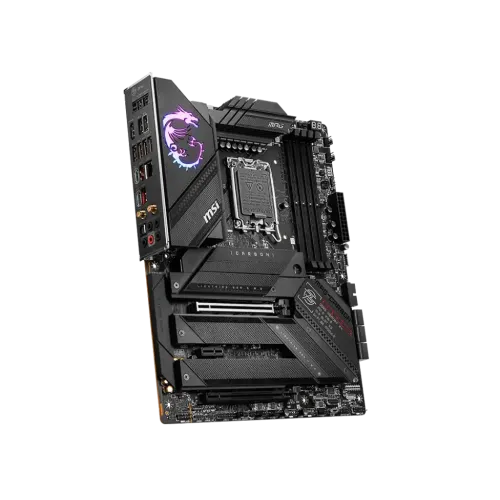

MSI MPG Z790 CARBON WIFI ATX Motherboard

The MSI MPG Z790 CARBON WIFI Motherboard supports 14th/13th /12th Gen Intel Core / Pentium / Celeron processors for LGA 1700 socket. This ATX motherboard, which uses the Intel Z790 chipset and the LGA 1700 socket, has four DDR4 RAM slots that allow twin-channel memory and speeds up to 7600+(OC) MHz. It comes with PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2×2. It also enables RAID 0, 1, 5, and 10 through SATA or 0, 1, and 5 via M.2. GPUs and other adaptor cards may be installed through PCIe 5.0 x16, PCIe 4.0 x16, PCIe 3.0 x16, and PCIe 3.0 x1 slots. It comes with an enlarged heatsink with a heat pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads, and M.2 Shield Frozr are built for a high-performance system and non-stop gaming experience. The 14th Gen Motherboard is equipped with 2.5 GbE Intel LAN and Wi-Fi 6E; quickly connects to wireless peripherals with Bluetooth 5.2. Upgraded network solution for professional and multimedia use. Delivers a secure, stable, and fast network connection. The Realtek ALC4080 audio codec offers 7.1 channel surround sound, and the rear ports can be used for analog or digital output. Connect connected peripherals through two USB 2.0, two USB 3.2 Gen 1, and three USB 3.2 Gen 2×2 Type-A ports, or a USB 3.2 Gen 2×2 Type-C port. DisplayPort and HDMI are used to output video. A Flash BIOS button is also located on the rear I/O panel, and internal headers support front-panel USB 3.2 Gen 2 Type-C and USB 3.2 Gen 1 and 2.0 Type-A ports, RGB connections, chassis intrusion, a TPM module, and other features. The MSI MPG Z790 CARBON WIFI 14th Gen Motherboard comes with a 03-year warranty.
