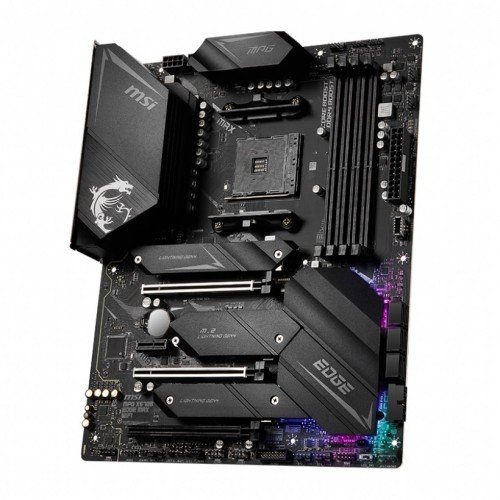

MSI MPG X570S EDGE MAX WIFI AMD AM4 ATX Motherboard - Image 1

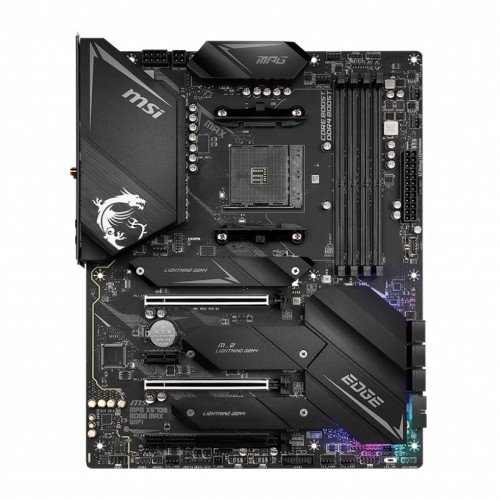

MSI MPG X570S EDGE MAX WIFI AMD AM4 ATX Motherboard - Image 2

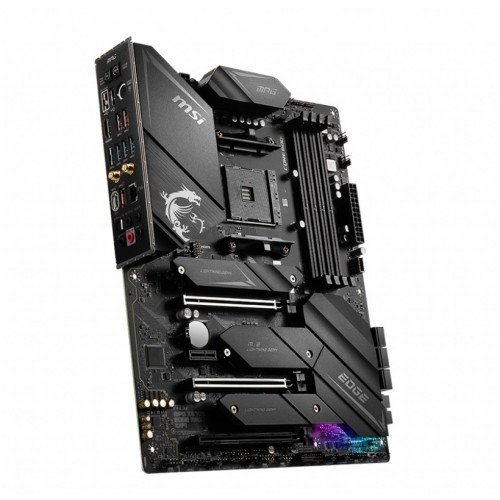

MSI MPG X570S EDGE MAX WIFI AMD AM4 ATX Motherboard

Key Features
Model: MPG X570S EDGE MAX WIFI
Supports DDR4 Memory, up to 5300+(OC) MHz
PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution
Supports Ryzen 5000, 5000 G, 4000 G, 3000, 3000 G, 2000 & 2000 G-series processors

Out of stock

Add to compare

Add to wishlist

10 People watching this product now!

Specification and Description

Specification

*Brand*	*MSI*
*Supported CPU*	*Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors* *Supports Socket AM4*
*Chipset*	*AMD X570 Chipset*
*Form Factor*	*ATX Form Factor* *12 in. x 9.6 in. (30.5 cm x 24.4 cm)*
*Audio*	*Realtek ALC4080 Codec* *7.1-Channel High Definition Audio* *Supports S/PDIF output*
*Expansion Slots*
*PCI*	*Supports PCIe 4.0 / PCIe 3.0* *PCIe 4.0 is available only on AMD Ryzen 5000 Series and 3000 Series desktop processors* *1x PCIe x16 slot (From processor)* *PCI_E1 supports x16 for AMD Ryzen 5000 Series,5000 G-Series, 4000 G-Series, 3000 Series and 2000 Series desktop processors* *PCI_E1 supports x8 for AMD Ryzen 2000 G-Series and 3000 G-Series desktop processors* *2x PCIe x16 slots (From X570 chipset)* *PCI_E3 supports x4* *PCI_E4 supports 3.0 x1 only* *1x PCIe 3.0 x1 slot (From X570 chipset)*
*Memory*
*Type*	*DDR4*
*Slots*	*4x DDR4 memory slots*
*Supported Memory*	*Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC* *Max frequency by A-XMP OC mode:* *For Ryzen 5000 G-Series & 4000 G-Series processors* *1DPC 1R Max speed up to 5300 MHz* *1DPC 2R Max speed up to 4266 MHz* *2DPC 1R Max speed up to 4400 MHz* *2DPC 2R Max speed up to 3600 MHz* *For Ryzen 5000 Series & 3000 Series processors* *1DPC 1R Max speed up to 5100 MHz* *1DPC 2R Max speed up to 4000 MHz* *2DPC 1R Max speed up to 4000 MHz* *2DPC 2R Max speed up to 3600 MHz* *Supports Dual-Channel mode* *Supports non-ECC, un-buffered memory*
*Maximum Memory*	*128GB*
*Graphics*
*Graphics*	*1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz* *Supports AMD CrossFire Technology*
*Connector & Ports*
*HDMI*	*1x HDMI 2.1 with HDR port*

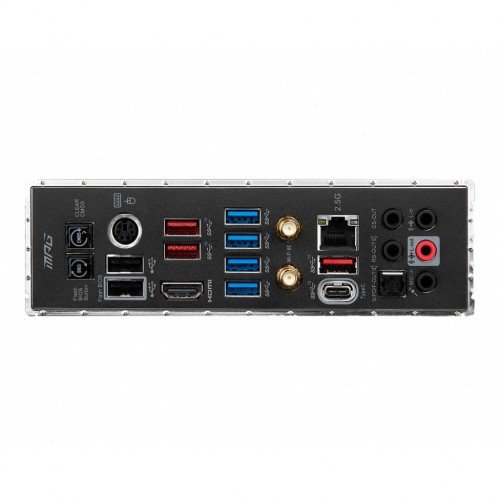

*USB (s)*	*AMD X570 Chipset* *1x USB 3.2 Gen 2 10Gbps Type-C internal connector* *4x USB 3.2 Gen 1 5Gbps ports are available through internal USB connectors* *2x USB 2.0 ports on the back panel* *Asmedia 1074 Chipset* *4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel* *GL850G Hub* *4x USB 2.0 ports are available through the internal USB connectors* *AMD Processor* *4x USB 3.2 Gen 2 10Gbps ports (3 Type-A ports and 1 Type-C port on the back panel)*
*LAN Port (s)*	*1x Realtek RTL8125B 2.5 Gbps LAN controller*
*Wireless Communication module*	*Intel Wi-Fi 6E AX210* *The Wireless module is pre-installed in the M.2 (Key-E) slot* *Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps* *Supports 802.11 a/ b/ g/ n/ ac/ ax* *Supports Bluetooth 5.2, FIPS, FISMA*
*Supported Storage*	*6x SATA 6Gb/s ports (From X570 chipset)* *3x M.2 slots (Key M)* *Supports PCIe 4.0 / PCIe 3.0* *PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors* *Support SATA 6Gbps* *M2_1 (From processor)* *Supports 2242/ 2260/ 2280/ 22110 storage devices* *M2_2 (From X570 chipset)* *Supports 2242/ 2260/ 2280 storage devices* *M2_3 (From X570 chipset)* *Supports 2242/ 2260/ 2280 storage devices*
*Internal I/O Ports*	*1x 24-pin ATX main power connector* *1x 8-pin ATX 12V power connector* *1x 4-pin ATX 12V power connector* *6x SATA 6Gb/s connectors* *3x M.2 slots (M-Key)* *2x USB 2.0 connectors (support additional 4 USB ports)* *2x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB ports)* *1x USB 3.2 Gen 2 10Gbps Type-C connector* *1x 4-pin CPU fan connector* *1x 4-pin water-pump connector* *6x 4-pin system fan connectors* *1x Front panel audio connector* *2x System panel connectors* *1x Chassis Intrusion connector* *1x 2-pin Thermal sensors connector* *1x Tuning Controller connector*
*TPM (Trusted Platform Module )*	*1x TPM module connector*
*Warranty Information*
*Manufacturing Warranty*	*03 years warranty*

Description

MSI MPG X570S EDGE MAX WIFI AMD AM4 ATX Motherboard

The MSI MPG X570S EDGE MAX WIFI Motherboard Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, and 2000 G-Series desktop processors for Socket AM4. It comes with 4x DDR4 memory slots and supports up to 128GB. It offers lightning Fast Game experience with PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2. It comes with an Enhanced Power Design. It is equipped with 12+2 Duet Rail Power System, 8-pin plus 4-pin CPU power connectors, Core Boost, and DDR4 Boost. The MSI MPG X570S EDGE MAX WIFI has a Premium Thermal Solution. Aluminum cover, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and 3x M.2 Shield Frozr is built for a high-performance system and non-stop gaming experience. The motherboard supports 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip. It features a 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution with an upgraded network solution for professional and multimedia use. Delivers a secure, stable, and fast network connection. It features a 6-layer PCB made of 2oz thickened copper and server grade-level material. The MSI MPG X570S EDGE MAX WIFI comes with 3 years of warranty.
