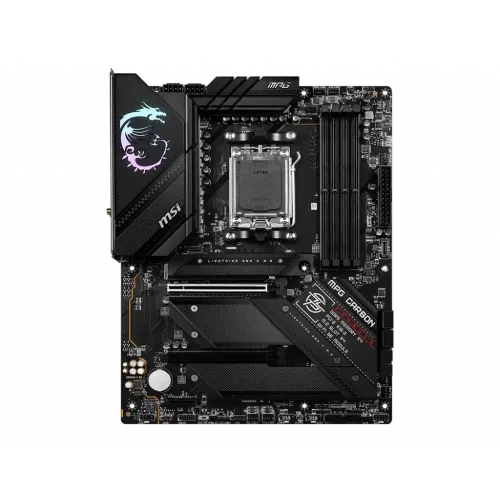

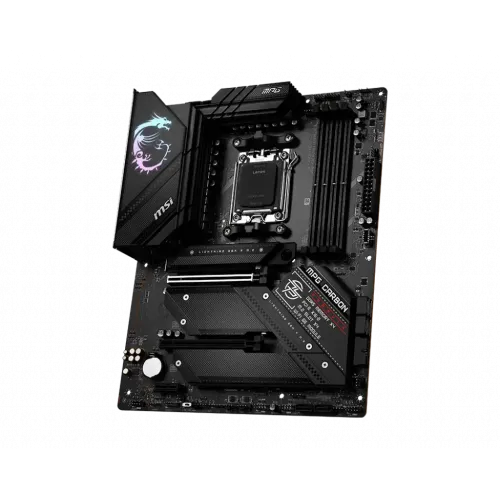

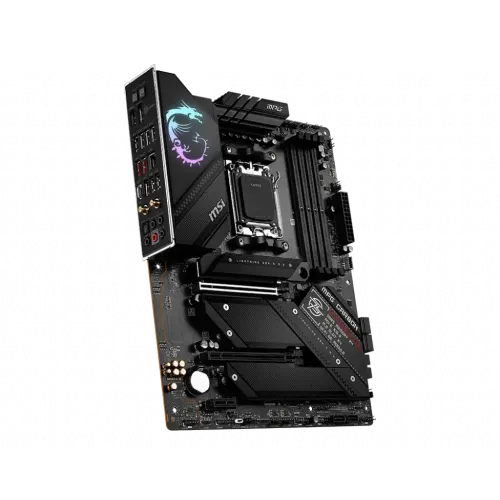

MSI MPG B650 CARBON WIFI DDR5 AMD AM5 ATX Motherboard

Key Features
Model: MPG B650 CARBON WIFI
Graphics Output: 1x HDMI, 1x Display Port
Supported RAM: 4x DDR5, up to 6600+(OC) MHz
Features: 2.5G LAN and AMD Wi-Fi 6E Solution
Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5

Out of stock

Add to compare

Add to wishlist

16 People watching this product now!

Specification and Description

Specification

*Brand*	*MSI*
*Supported CPU*	*Supports AMD Ryzen 8000 & 7000 Series Desktop Processors* *Socket AM5*
*Chipset*	*AMD B650*
*Form Factor*	*ATX* *243.84mmx304.8mm*
*Audio*	*Realtek ALC4080 Codec* *7.1-Channel USB High Performance Audio* *Supports up to 32-Bit/384 kHz playback on front panel*
*Expansion Slots*
*PCI*	*2x PCI-E x16 slot* *1x PCI-E x1 slot* *PCI_E1 PCIe 4.0 supports up to x16 (From CPU)* *PCI_E2 PCIe 4.0 supports up to x4 (From CPU)* *PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)*
*Memory*
*Type*	*DDR5*
*Slots*	*4 DIMMs*
*Supported Memory*	*Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz* *Max. overclocking frequency:* *• 1DPC 1R Max. speed up to 6600+ MHz* *• 1DPC 2R Max. speed up to 6000+ MHz* *• 2DPC 1R Max. speed up to 6400+ MHz* *• 2DPC 2R Max. speed up to 4000+ MHz* *Support Dual-Channel mode* *Supports non-ECC, un-buffered memory* *Supports AMD EXPO*
*Maximum Memory*	*128GB*
*Graphics*
*Graphics*	*1x HDMI* *1x DisplayPort* *Support HDMI 2.1, maximum resolution of 4K 60Hz* *Supports DP1.4, maximum resolution of 4K 60Hz*
*Connector & Ports*
*HDMI*	*1x HDMI*
*Display Port (s)*	*1x DisplayPort*
*USB (s)*	*2x USB 2.0 (Rear)* *4x USB 2.0 (Front)* *2x USB 3.2 Gen1 Type A (Front)* *7x USB 3.2 Gen2 Type A (Rear)* *1x USB 3.2 Gen2 Type C (Front)* *1x USB 3.2 Gen2x2 Type C (Rear)*
*LAN Port (s)*	*Realtek RTL8125 2.5Gbps LAN*
*Wireless Communication module*	*AMD Wi-Fi 6E* *The Wireless module is pre-installed in the M.2 (Key-E) slot* *Supports MU-MIMO TX/RX* *Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands* *Supports 802.11 a/ b/ g/ n/ ac/ ax* *Supports Bluetooth 5.2*
*Supported Storage*	*4x M.2 slot* *M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices* *M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices* *M.2_3 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices* *M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices* *6x SATA 6G port*
*RAID*	*Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices* *Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices*
*Audio*	*Audio Connectors*
*Internal I/O Ports*	*1x Power Connector(ATX_PWR)* *2x Power Connector(CPU_PWR)* *1x CPU Fan* *1x Pump Fan* *5x System Fan* *2x Front Panel (JFP)* *1x Chassis Intrusion (JCI)* *1x Front Audio (JAUD)* *1x Tuning Controller connector(JDASH)* *3x Addressable V2 RGB LED connector (JARGB_V2)* *1x RGB LED connector(JRGB)* *4x USB 2.0* *2x USB 3.2 Gen1 Type A* *1x USB 3.2 Gen2 Type C*
*TPM (Trusted Platform Module )*	*1x TPM pin header(Support TPM 2.0)*
*Others*
*Special Features*	*4x EZ Debug LED* *1x EZ LED Control switch*
*Warranty Information*
*Manufacturing Warranty*	*3 Years*

Description

MSI MPG B650 CARBON WIFI DDR5 AMD AM5 ATX Motherboard

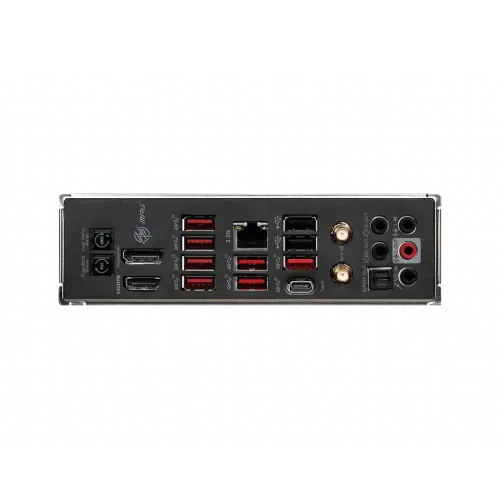

The MSI MPG B650 CARBON WIFI Motherboard supports AMD’s Ryzen 8000 & 7000-series processors with up to 16 Zen 4 cores as well as dual-channel DDR5 memory, with a Maximum Memory Capacity of up to 128GB and a bus speed of up to 6600+(OC) MHz. It features a Core Boost technology that combines MSI’s premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supports multi-core CPUs, but also creates the perfect conditions for your CPU overclocking. It has an extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and a Double-sided M.2 Shield Frozr built for a high-performance system and a non-stop gaming experience. The motherboard is made of a 6-layer PCB made of 2oz thickened copper and server-grade level material. It can deliver a lightning-fast game experience with PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster. The rear I/O panel now offers easy ways of directly entering the safe boot, a one-click toggle for all RGB lights, and directly activating Turbo mode. The MSI MPG B650 CARBON WIFI offers Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1. It comes with an upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. The MAG B650 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C. The MSI MPG B650 CARBON WIFI comes with 3 years of warranty.
