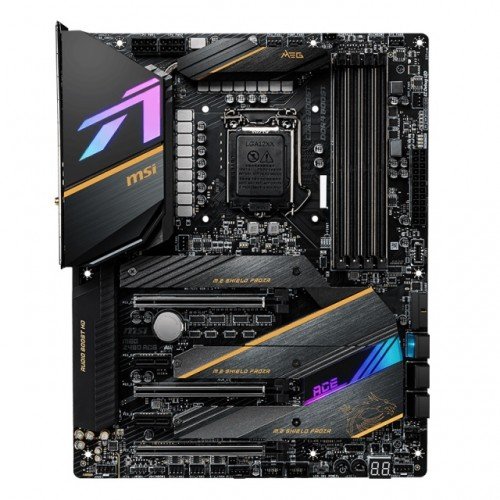

MSI MEG Z490 ACE 10th Gen ATX Gaming Motherboard

Key Features
Model: MSI MEG Z490 ACE
Extreme Power Design
Outstanding Cooling Solution
Baseplate and M.2 Shield Frozr
Supports 10th Gen Intel Processors for LGA 1200 socket

Out of stock

Add to compare

Add to wishlist

18 People watching this product now!

Specification and Description

Specification

*Brand*	*MSI*
*Supported CPU*	*Supports 10th Gen Intel Core and Pentium Gold /Celeron processors for LGA 1200 socket*
*Chipset*	*Intel Z490 Chipset*
*Form Factor*	*12 in. x 9.6 in. (30.5 cm x 24.4 cm)* *ATX Form Factor*
*Expansion Slots*
*PCI*	*3x PCIe 3.0 16 slots (2 from CPU, 1 from PCH, support 16/0/4, 8/8/4)* *2x PCIe x1 slots (from PCH)*
*M.2 Socket*	*M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices* *M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices* *M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices*
*Memory*
*Type*	*Dual channel memory architecture*
*Slots*	*4 x DDR4 memory slots*
*Supported Memory*	*Supports 1R 2133/2666/2933 MHz* *1DPC 1R Max speed up to 4800+ MHz* *1DPC 2R Max speed up to 4266+ MHz* *2DPC 1R Max speed up to 4400+ MHz* *2DPC 2R Max speed up to 4000+ MHz*
*Maximum Memory*	*128GB*
*Graphics*
*Graphics*	*Supports 2-Way NVIDIA SLI Technology* *Supports 3-Way AMD CrossFire Technology*
*Connector & Ports*

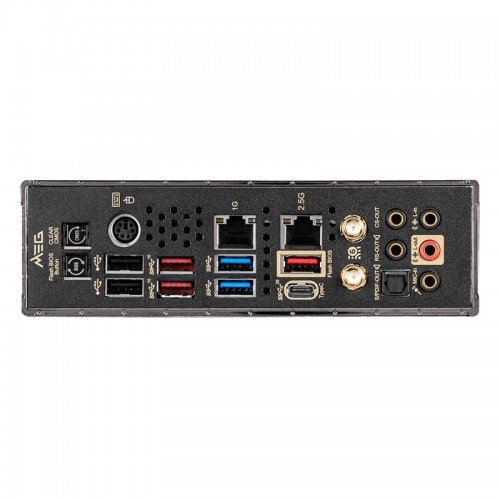

*USB (s)*	*Intel Z490 Chipset* *4x USB 3.2 Gen 2 10Gbps ports (3 Type-A ports on the back panel, 1 Type-C internal connector)* *4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal USB connector)* *6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)* *ASMedia 3241 chipset* *1x USB 3.2 Gen 2×2 20Gbps Type-C port on the back panel*
*LAN Port (s)*	*1x Realtek 8125B 2.5G LAN controller* *1x Intel I219V 1G LAN controller* *WIFI & BLUETOOTH* *Intel AX201* *Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps* *WiFi 6 Pre-Certified* *Supports Bluetooth 5.1 , FIPS, FISMA* *The Wireless module is pre-install in the M2 (Key-E) slot*
*Supported Storage*	*Intel Z490 Chipset* *6x SATA 6Gb/s ports* *3x M.2 slots (Key M)* *M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices* *M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices* *M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices* *Intel Optane Memory Ready* *Supports Intel Smart Response Technology for Intel Core processors*
*Audio*	*Realtek ALC1220 Codec + ESS SABRE9018Q2C combo DAC* *7.1-Channel High Definition Audio* *Supports Optical S/PDIF output*
*Internal I/O Ports*	*1x 24-pin ATX main power connector* *2x 8-pin ATX 12V power connectors* *6x SATA 6Gb/s connectors* *3x M.2 slots (M-Key)* *1x USB 3.2 Gen 2 10Gbps Type-C port* *1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)* *2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)* *1x 4-pin CPU fan connector* *1x 4-pin water-pump connector* *6x 4-pin system fan connectors* *1x front panel audio connector* *2x system panel connectors* *1x Chassis Intrusion connector* *1x slow mode jumper* *1x power button* *1x reset button* *1x 4-pin RGB LED connector* *2x 3-pin RAINBOW LED connectors* *1x 3-pin CORSAIR LED connector* *1x RTD3 connector* *1x TBT connector*
*TPM (Trusted Platform Module )*	*N/A*
*Warranty Information*
*Manufacturing Warranty*	*03 years*

Description

MSI MEG Z490 ACE 10th Gen ATX Gaming Motherboard

The MEG series seeks to transcend current gaming products, the flagship model designed to push the limits of what an extreme gaming series can be. Combining the strengths of our existing arsenal with new innovative technology; this results in significant improvements in operational and gaming efficiency. With the MEG series, take complete control of performance and personalization with the ultimate gaming series for enthusiasts who want it all. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill, and many more to optimize memory modules, configurations, and even improve overclocking. MEG Z490 ACE features high-bandwidth and low-latency 2.5G plus Gigabit LAN for power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.
