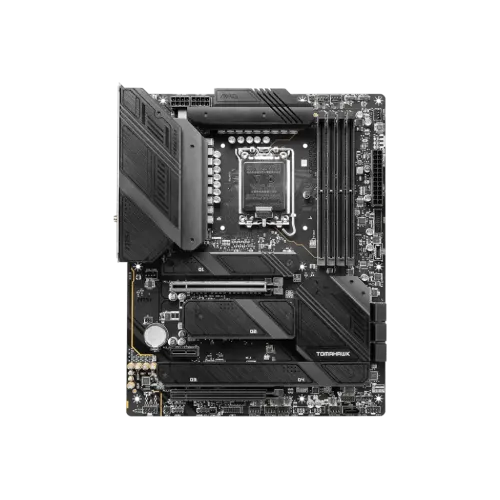

MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard - Image 1

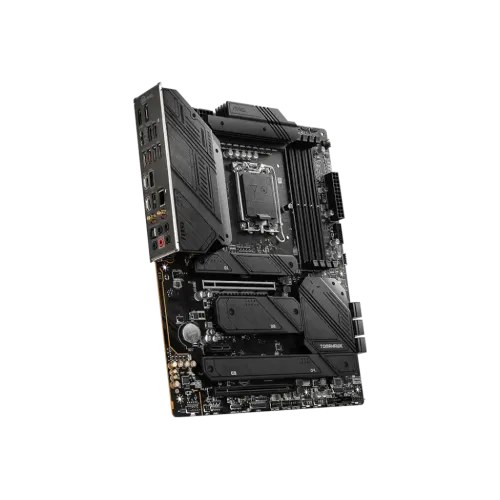

MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard - Image 2

MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard

Key Features
Model: MAG Z790 TOMAHAWK WIFI
Graphics Output: 1x HDMI, 1x DisplayPort
Features: 2.5G LAN with Wi-Fi 6E Solution
Supported RAM: 4x DDR5, 7200+(OC), Max 192GB
Supported CPU: 14th/13th/12th Gen Core, Pentium Gold & Celeron Processor (LGA 1700)

Out of stock

Add to compare

Add to wishlist

14 People watching this product now!

Specification and Description

Specification

*Brand*	*MSI*
*Supported CPU*	*Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold, and Celeron Processors* *Processor socket LGA1700*
*Chipset*	*Intel Z690 Chipset*
*Form Factor*	*ATX* *243.84mmx304.8mm*
*Audio*	*Realtek ALC4080 Codec* *7.1-Channel USB High Performance Audio* *Supports S/PDIF output* *Supports up to 32-Bit/384 kHz playback on front panel*
*Expansion Slots*
*PCI*	*2x PCI-E x16 slot* *Supports x16/x4* *1x PCI-E x1 slot* *PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)* *PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)* *PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)*
*M.2 Socket*	*4x M.2 slots*
*Memory*
*Type*	*DDR5*
*Slots*	*4 x DIMM*
*Supported Memory*	*Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz* *Max. overclocking frequency:* *• 1DPC 1R Max speed up to 7200+ MHz* *• 1DPC 2R Max speed up to 6600+ MHz* *• 2DPC 1R Max speed up to 6400+ MHz* *• 2DPC 2R Max speed up to 5600+ MHz* *Supports Intel XMP3.0 OC* *Supports Dual-Controller Dual-Channel mode* *Supports non-ECC, un-buffered memory*
*Maximum Memory*	*192GB*
*Graphics*
*Graphics*	*1x HDMI* *Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* *1x DisplayPort* Support DP 1.4, maximum resolution of 8K 60Hz*
*Connector & Ports*
*HDMI*	*1x HDMI 2.1*
*Display Port (s)*	*1x DisplayPort 1.4*

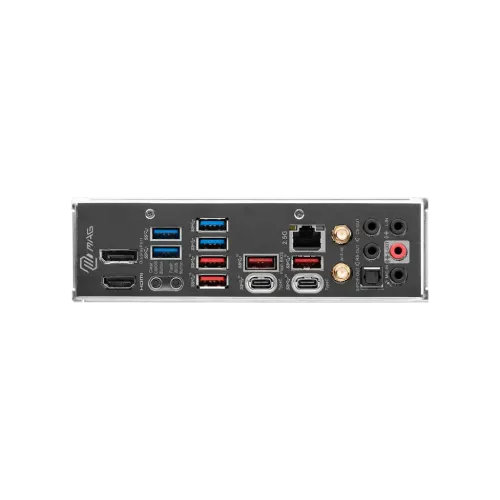

*USB (s)*	*4x USB 2.0 (Front)* *4x USB 3.2 Gen1 Type A (Rear)* *2x USB 3.2 Gen1 Type A (Front)* *4x USB 3.2 Gen2 Type A (Rear)* *1x USB 3.2 Gen2 Type C (Rear)* *1x USB 3.2 Gen2 Type C (Front)* *1x USB 3.2 Gen2x2 Type C (Rear)*
*LAN Port (s)*	*Intel 2.5Gbps LAN*
*Wireless Communication module*	*Intel Wi-Fi 6E* *The Wireless module is pre-installed in the M.2 (Key-E) slot* **Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps* Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA**
*Supported Storage*	*4x M.2* *M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices* *M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices* *M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices* *M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices* *7x SATA 6G*
*RAID*	*Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices* *Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices*
*Audio*	*1x Front Audio (JAUD)*
*Internal I/O Ports*	*1x Power Connector(ATX_PWR)* *2x Power Connector(CPU_PWR)* *1x CPU Fan* *1x Pump Fan* *6x System Fan* *2x Front Panel (JFP)* *1x Chassis Intrusion (JCI)* *1x Front Audio (JAUD)* *1x TBT connector (JTBT, supports RTD3)* *1x Tuning Controller connector(JDASH)* *3x Addressable V2 RGB LED connector (JARGB_V2)* *1x RGB LED connector(JRGB)* *4x USB 2.0 ports* *2x USB 3.2 Gen1 Type A ports* *1x USB 3.2 Gen2 Type C ports*
*TPM (Trusted Platform Module )*	*1x TPM pin header(Support TPM 2.0)*
*Others*
*Special Features*	*LED FEATURE: 4x EZ Debug LED*
*Warranty Information*
*Manufacturing Warranty*	*3 years*

Description

MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard

MSI MAG Z790 TOMAHAWK WIFI 14th Gen Motherboard is equipped with an Intel Z790 chipset and LGA 1700 socket. This 14th-generation motherboard has four DDR5 RAM slots supporting dual channel memory and speeds up to 7200 MHz when overclocked. Seven SATA III and four M.2 interfaces provide ample room for storage and support RAID 0, 1, 5, and 10. Install GPUs or other adapter cards via PCIe 5.0 x16, PCIe 4.0 x16, and PCIe 3.0 x1 slots. Take advantage of fast networking with a 2.5 GbE Intel LAN and Wi-Fi 6E; connect to wireless peripherals with ease using Bluetooth 5.2. The Realtek ALC4080 audio codec supports 7.1 channel surround sound, while rear ports allow for analog or digital output. Connect wired peripherals via four USB 3.2 Gen 1 and four Gen 2 Type-A ports, or via USB 3.2 Gen 2 and 2×2 Type-C ports. Output video via DisplayPort and HDMI. The rear I/O panel also sports Clear CMOS and Flash BIOS buttons. Internal headers provide support for front-panel USB 3.2 Gen 2 Type-C and USB 3.2 Gen 1 and 2.0 Type-A ports, RGB connectors, chassis intrusion, a TPM module, and more. Wi-Fi 6E supports the 6 GHz spectrum, MU-MIMO, and BSS color technology and delivers speeds up to 2400 Mb/s.
