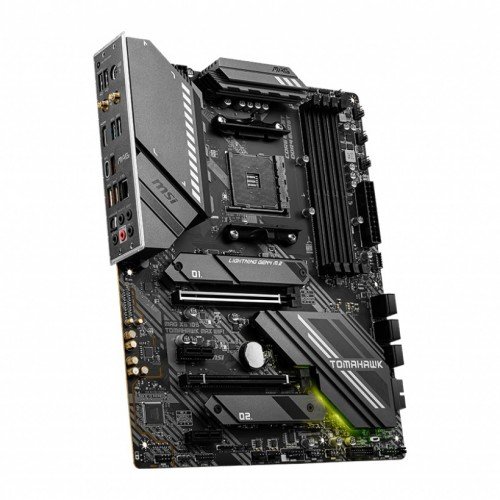

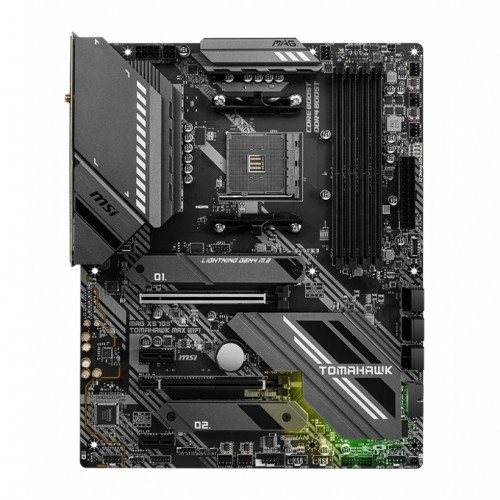

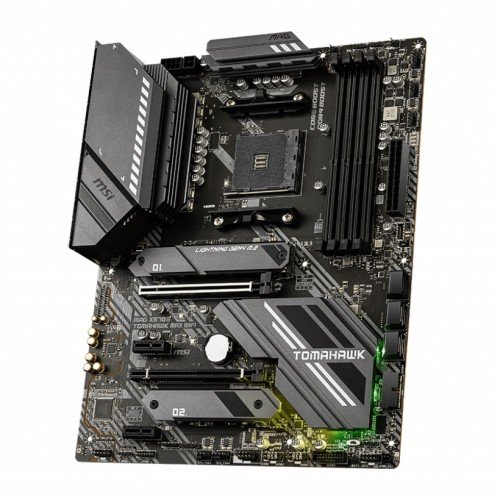

MSI MAG X570S TOMAHAWK MAX WIFI AMD AM4 ATX Motherboard

Key Features
Model: MAG X570S TOMAHAWK MAX WIFI
Supports 2-Way AMD Crossfire
2.5G LAN and Intel Wi-Fi 6E Solution
Supports DDR4 Memory, up to 5100(OC) MHz
Supports Ryzen 5000, 5000 G, 4000 G, 3000, 3000 G, 2000 & 2000 G-Series processors

Out of stock

Add to compare

Add to wishlist

20 People watching this product now!

Specification and Description

Specification

*Brand*	*MSI*
*Supported CPU*	*Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors* *Supports Socket AM4*
*Chipset*	*AMD X570 Chipset*
*Form Factor*	*ATX Form Factor* *12 in. x 9.6 in. (30.5 cm x 24.4 cm)*
*Audio*	*Realtek ALC4080 Codec* *7.1-Channel High Definition Audio* *Supports S/PDIF output*
*Expansion Slots*
*PCI*	*Supports PCIe 4.0 / PCIe 3.0 specification* *PCIe 4.0 is available only on AMD Ryzen 5000 Series and 3000 Series desktop processors* *1x PCIe x16 slot (From processor)* *PCI_E1 supports PCIe 4.0/ 3.0 x16* *1x PCIe x16 slot (From X570 chipset)* *PCI_E3 supports PCIe 4.0/ 3.0 x4* *2x PCIe 3.0 x1 slots (From X570 chipset)*
*Memory*
*Type*	*DDR4*
*Slots*	*4 x DDR4 memory slots*
*Supported Memory*	*Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC1* *Max overclocking frequency by A-XMP OC mode:* *For Ryzen 5000 G-Series & 4000 G-Series processors* *1DPC 1R Max speed up to 5100 MHz* *1DPC 2R Max speed up to 4000 MHz* *2DPC 1R Max speed up to 4266 MHz* *2DPC 2R Max speed up to 3600 MHz* *For Ryzen 5000 Series & 3000 Series processors* *1DPC 1R Max speed up to 5100 MHz* *1DPC 2R Max speed up to 3866 MHz* *2DPC 1R Max speed up to 4000 MHz* *2DPC 2R Max speed up to 3600 MHz* *Supports Dual-Channel mode* *Supports non-ECC, un-buffered memory*
*Maximum Memory*	*Up to 128GB*
*Graphics*
*Graphics*	*1x HDMI 2.1 port, supports a maximum resolution of 4K 60Hz* *Supports AMD CrossFire Technology*
*Connector & Ports*
*HDMI*	*1 x HDMI 2.1*

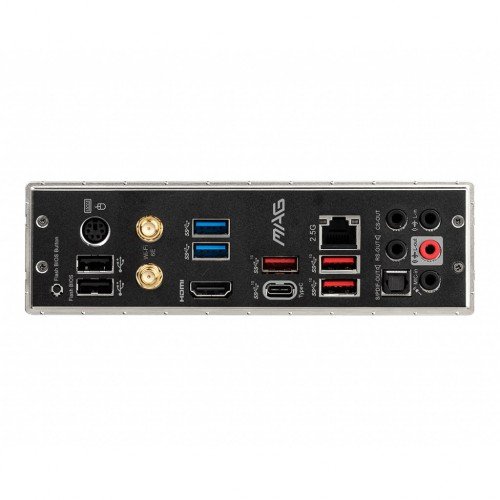

*USB (s)*	*AMD X570 Chipset* *3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector)* *4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors* *6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)* *AMD Processor* *2x USB 3.2 Gen 2 10Gbps ports on the back panel (Type-A & Type-C)* *2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel*
*LAN Port (s)*	*1x Realtek 8125B 2.5Gbps LAN Controller*
*Wireless Communication module*	*Intel® Wi-Fi 6E AX210* *The Wireless module is pre-installed in the M.2 (Key-E) slot* *Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps* *Supports 802.11 a/ b/ g/ n/ ac/ ax* *Supports Bluetooth 5.2, FIPS, FISMA*
*Supported Storage*	*6x SATA 6Gb/s ports (from AMD X570 Chipset)* *2x M.2 slots (Key M)* *Support up to PCIe 4.0 for AMD Ryzen 5000 Series and 3000 Series desktop processors* *Support up to PCIe 3.0 for AMD Ryzen 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processor* *Supports up to SATA 6Gb/s* *M2_1 slot (from Processor)* *Support 2280/22110 storage devices* *M2_2 slot (from AMD X570 Chipset)* *Supports 2242/ 2260/ 2280 storage devices*
*Internal I/O Ports*	*1x 24-pin ATX main power connector* *1x 8-pin ATX 12V power connector* *1x 4-pin ATX 12V power connector* *6x SATA 6Gb/s connectors* *2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)* *2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)* *1x USB 3.2 Gen 2 10Gbps Type-C port* *1x 4-pin CPU fan connector* *1x 4-pin water-pump connector* *4x 4-pin system fan connectors* *1x Front panel audio connector* *2x System panel connectors* *1x Chassis Intrusion connector* *1x TPM module connector* *1x Serial port connector* *1x Chassis Intrusion connector*
*TPM (Trusted Platform Module )*	*1x TPM module connector*
*Warranty Information*
*Manufacturing Warranty*	*3 Years*

Description

MSI MAG X570S TOMAHAWK MAX WIFI AMD AM4 ATX Motherboard

The MSI MAG X570S TOMAHAWK MAX WIFI Motherboard supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, and 2000 G-Series desktop processors. It supports DDR4 Memory, up to 5100(OC) MHz. It features Premium Thermal Solution. Extended Heatsink Design and M.2 Shield Frozr are built for high-performance systems and non-stop works. It is equipped with 2.5G LAN and Intel Wi-Fi 6E Solution. Upgraded network solution for professional and multimedia use. Delivers a secure, stable, and fast network connection. Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs. Reward your ears with the studio-grade sound quality for the most immersive gaming experience with AUDIO BOOST 5. It comes with ith Steel armor PCIe slots. It also supports 2-Way AMD Crossfire. The MSI MAG X570S TOMAHAWK MAX WIFI comes with 3 years of warranty.
