Specification
| Case Type | ||
| Type | Mid-Tower | |
| Brand | MSI Cassing | |
| Motherboard Support | ATX / Micro-ATX / Mini-ITX | |
| External Features | ||
| Weight | 5.64 kg | |
| Color(s) | Black | |
| Dimensions | 421(D) x 210(W) x 499(H) mm
17.05(D) x 8.27(W) x 19.65(H) inch |
|
| Radiator Support | Front: Up to 240 mm
Top: Up to 240 mm Rear: Up to 120 mm |
|
| Expansion Slots | 7 | |
| Pre- Installed Fans | Front: 2 x 120 mm addressable RGB LED Fan included
Rear: 1 x 120 mm System Fan included |
|
| Fan Support | Front: Up to 3 x 120 mm / 2 x 140 mm
Top: Up to 2 x 120 mm / 2 x 140 mm Rear: Up to 1 x 120 mm |
|
| Drive Bays | 2 x 3.5” (compatible with 2.5”) + 3 x 2.5” | |
| I/O Port | 2 x USB 3.2 Gen1 Type-A / 1 x HD Audio / 1
x Mic |
|
| Additional Feature | ||
| Cooling System | Front: Up to 3 x 120 mm / 2 x 140 mm
Top: Up to 2 x 120 mm / 2 x 140 mm Rear: Up to 1 x 120 mm |
|
| Side Panel | 4mm Tempered Glass | |
| PSU | Standard ATX 160 mm, max to 200 mm (without 3.5” HDD case installed) | |
| Clearance Space | ||
| Maximum Graphics Card Length | 330 mm | |
| Maximum CPU Cooler Height | 160 mm | |
| Warranty | ||
| Warranty | No Warranty | |
Description

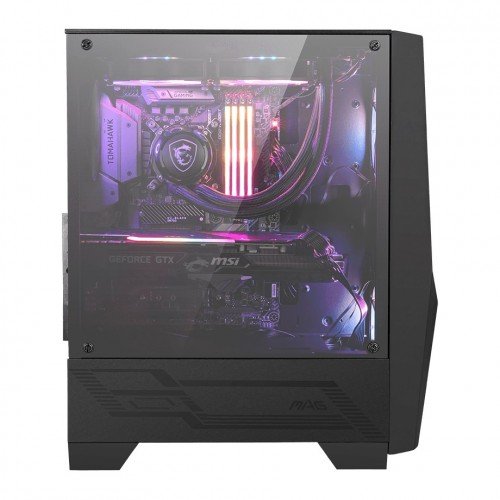

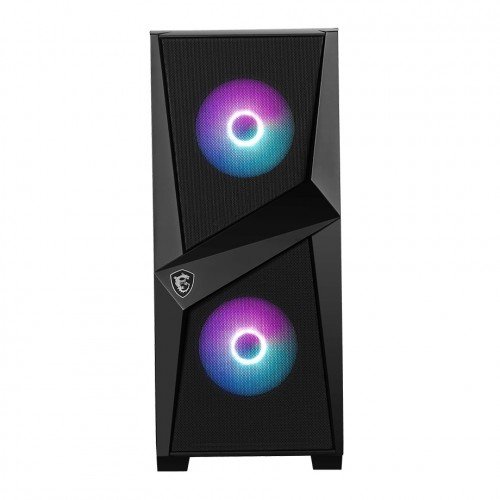

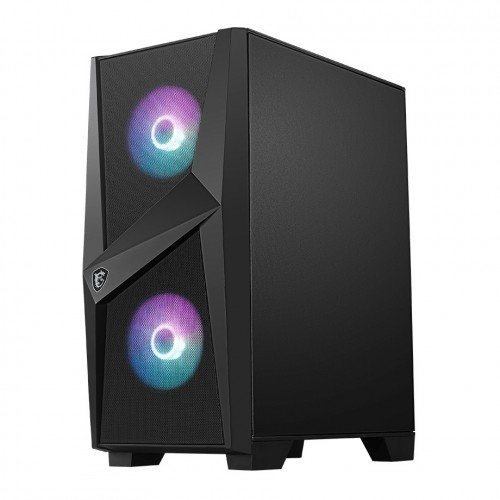

MSI MAG FORGE 100R TG MID TOWER ARGB Gaming Case Black
The MSI MAG FORGE 100R features two 120mm fans aligned vertically on the front to draw in air evenly across the entire face of the enclosure. It has been designed with multiple easy installation mechanisms and accommodated an up to ATX motherboard. It supports ATX / mATX / Mini-ITX motherboards. It has 2 x 3.5 (compatible with 2.5 + 3 x 2.5 drive bays and 7 expansion slots. It has a 4mm tinted tempered glass side panel, making it ideal for showcasing your build with (RGB) lighting. It comes with 2 x 120 mm addressable RGB LED Fan at the front and a 1 x 120 mm System Fan included at the rear. It features a 1 to 6 ARGB LED Control Board. You can intuitively control & switch 9 lighting effects through the LED switch button. The case has a magnetic filter on the top side that is designed to give users the best experience in un-installing and cleaning. It has no warranty.
