Specification
| Basic Information | ||
| Brand | MSI | |
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA 1700 |
|
| Chipset | INTEL B760 | |
| Form Factor | mATX
243.84mmx243.84mm |
|
| Audio | Realtek ALC897 Codec
7.1-Channel High-Definition Audio |
|
| Expansion Slots | ||
| PCI | 2x PCI-E x16 slot
Supports x16/x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 | |
| Supported Memory | Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
|
| Maximum Memory | 192GB | |
| Graphics | ||
| Graphics | Support HDMITM 2.1 with HDR, the maximum resolution of 4K 60Hz
Support DP 1.4, the maximum resolution of 4K 60Hz |
|

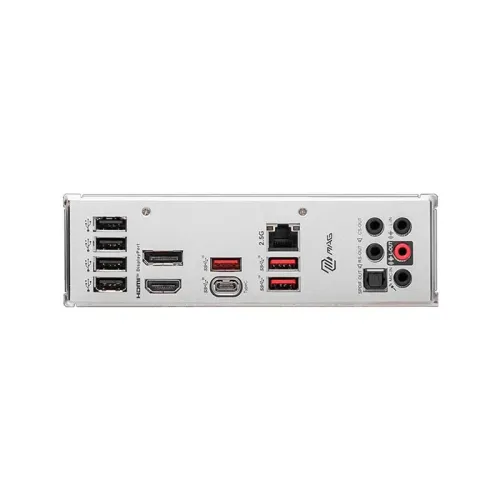

| Connector & Ports | ||
| Display Port (s) | 2x DisplayPort | |
| HDMI | 1x HDMI | |
| USB (s) | 4x USB 2.0 (Rear)
4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
|
| LAN Port (s) | Realtek 2.5Gbps LAN | |
| Supported Storage | 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| Audio | 1x Front Audio (JAUD) | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | 4x EZ Debug LED | |
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |
Description

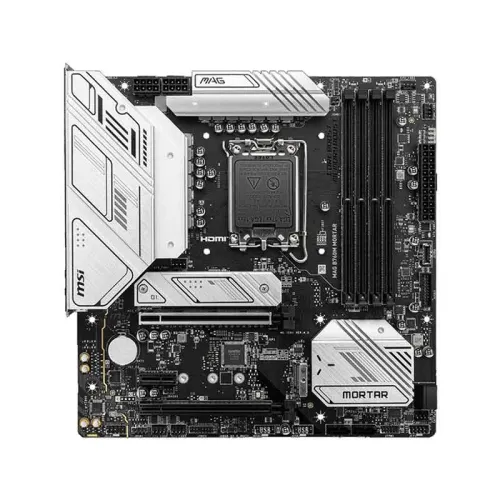

MSI MAG B760M MORTAR DDR5 mATX Motherboard
The MSI MAG B760M MORTAR DDR5 motherboard is an excellent choice for both gamers and power users. It supports Intel Core processors from the 12th and 13th generations, as well as Pentium Gold and Celeron CPUs for the LGA 1700 socket. This motherboard also supports DDR5 memory, which can be overclocked to rates of up to 7000+ MHz. This 14th Gen motherboard’s upgraded power architecture is a crucial feature, with a 12+1+1 duet rail power system, two 8-pin CPU power connections, Core Boost, and Memory Boost. These characteristics guarantee that the motherboard can easily manage high-performance processing needs. The MSI MAG B760M MORTAR DDR5 motherboard delivers a lightning-fast gaming experience for gamers. It has a PCIe 5.0 slot, a Lightning Gen 4 x 4 M.2 slot, and a USB 3.2 Gen 2×2 port for quick data transmission and connection. This motherboard has a premium thermal solution, which incorporates an expanded heatsink design and M.2 Shield Frozr to avoid overheating. Its design assures that the system can operate at peak performance for extended periods without failure. The MSI MAG B760M MORTAR DDR5 motherboard also has an audio boost for studio-quality sound and a high-quality PCB constructed with 2oz thicker copper and server-grade level material. These qualities ensure that the motherboard is long-lasting and sturdy. This MSI MAG B760M MORTAR DDR5 motherboard is a strong and efficient choice for individuals looking for a high-performance system with quick connectivity and excellent audio quality.
