Specification
| Brand | MSI | |
| Supported CPU | Supports 14th, 13th & 12th Gen Intel Core, Pentium Gold, and Celeron
Processor socket LGA1700 |
|
| Chipset | Intel B660 Chipset | |
| Form Factor | Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
|
| Audio | Realtek ALC1200 Codec
7.1-Channel High Definition Audio Supports S/PDIF output |
|
| Expansion Slots | ||
| PCI | 2x PCIe x16 slots
PCI_E1 slot (From CPU) Supports PCIe 4.0 x16 PCI_E3 slot (From B660 Chipset) Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4x DDR5 memory slots | |
| Supported Memory | Supports 1R 4800 MHz (by JEDEC & POR)
Max overclocking frequency: 1DPC 1R Max speed up to 6200+ MHz 1DPC 2R Max speed up to 5200+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
|
| Maximum Memory | support up to 128GB | |
| Graphics | ||
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz Supports 2-Way AMD CrossFire Technology |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 with HDR port | |
| Display Port (s) | 1x DisplayPort 1.4 port with HBR3 | |
| USB (s) | Intel B660 Chipset

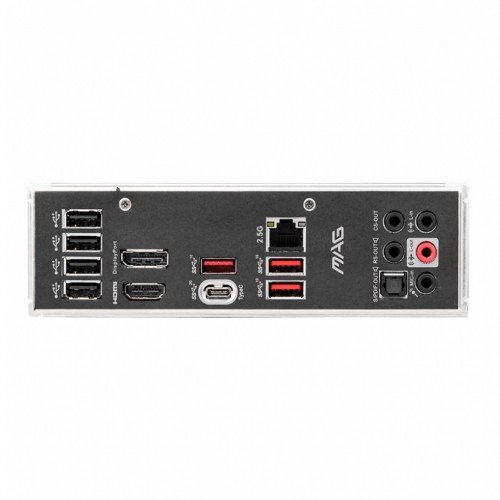

1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector 4x USB 2.0 ports on the back panel USB Hub-GL3590 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel USB Hub-GL850G 4x USB 2.0 ports available through internal connectors |
|
| LAN Port (s) | 1x Realtek 8125BG 2.5Gbps LAN controller | |
| Supported Storage | 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset)
2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Optane™ Memory |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector |
|
| TPM (Trusted Platform Module ) | 1x TPM module connector | |
| Others | ||
| Special Features | 4x EZ Debug LED
1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years warranty | |
Description

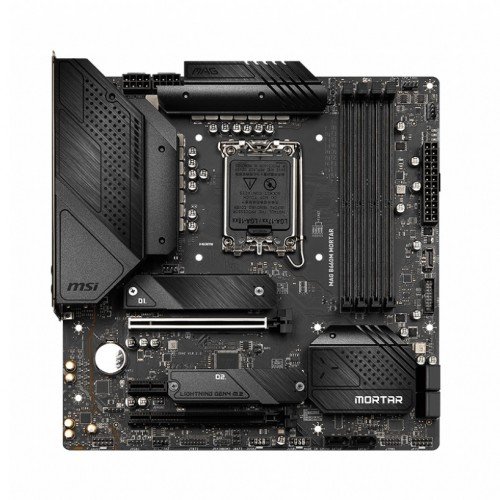

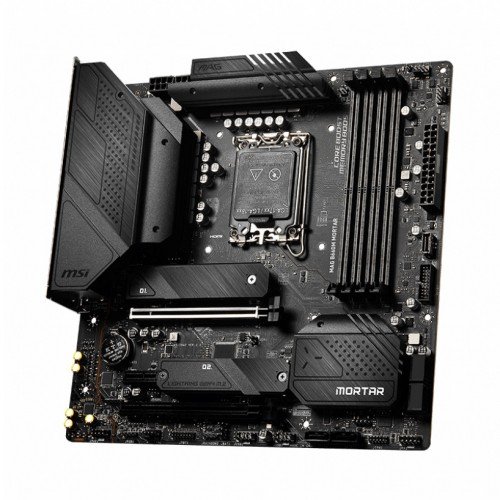

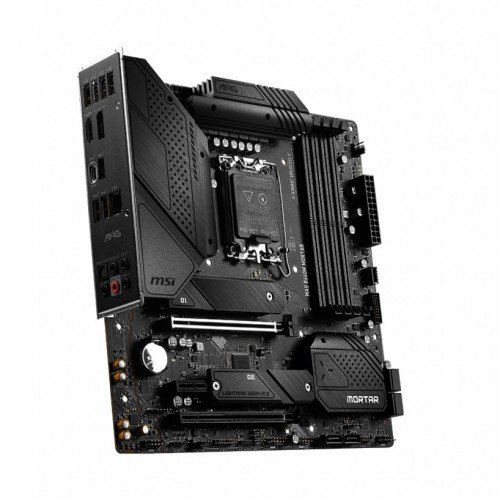

MSI MAG B660M MORTAR DDR5 Micro-ATX Motherboard
The MSI MAG B660M MORTAR DDR4 Motherboard supports 14th, 13th & 12th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1700 socket, DDR5 Memory, up to 6200+(OC) MHz. This motherboard comes with a Premium Thermal Solution so that Extended Heatsink Design and M.2 Shield Frozr are built for a high-performance system. Delivers a secure, stable, and fast network connection. By Utilizing 12th Gen Intel processors, the MSI B660 motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. This motherboard is designed with Lightning M.2, which helps to run at PCIe Gen 4 and maximizes performance for NVMe-based SSDs. It also has a Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1, and also has steel armor PCIe slots, that support AMD Crossfire. Here, the 2.5Gbps LAN provides incredible data transfer speed faster than a general Gigabit LAN. This is a premium solution for Gamers. The latest MSI MAG B660M MORTAR DDR5 motherboard comes with 03 years of warranty.
