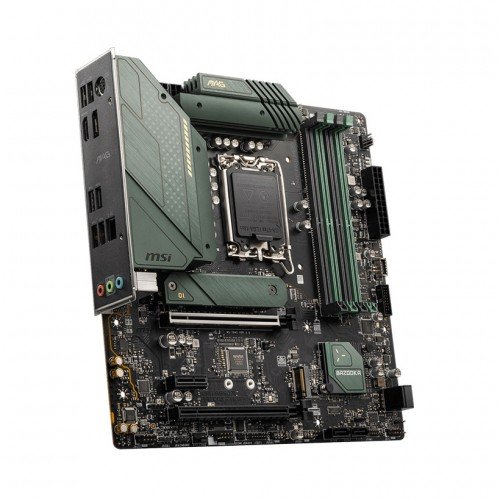

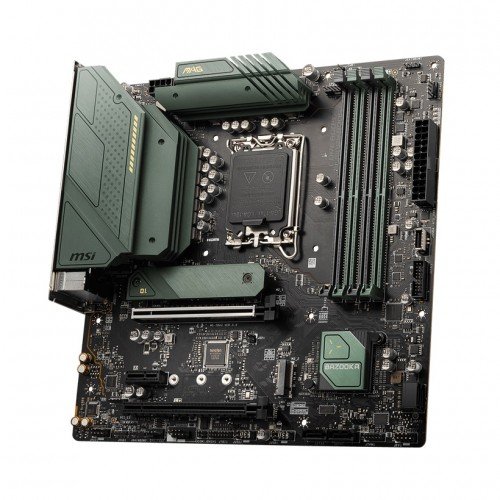

MSI MAG B660M BAZOOKA DDR4 Micro-ATX Motherboard

Key Features
Model: MAG B660M BAZOOKA DDR4
4x SATA 6Gb/s ports, 2x M.2 slots
Onboard 2.5G LAN plus Gigabit LAN
Supports DDR4 Memory, up to 4800+(OC) MHz
Supports 14th, 13th & 12th Gen Intel processors for LGA 1700 socket

Out of stock

Add to compare

Add to wishlist

12 People watching this product now!

Specification and Description

Specification

*Brand*	*MSI*
*Supported CPU*	*Supports 14th, 13th & 12th Gen Intel Core Processors* *Processor socket LGA1700*
*Chipset*	*Intel B660 Chipset*
*Form Factor*	*Micro-ATX Form Factor* *9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)*
*Audio*	*Realtek ALC897 Codec* *7.1-Channel High Definition Audio*
*Expansion Slots*
*PCI*	*2x PCIe x16 slots* *PCI_E1 slot (From CPU)* *Supports PCIe 4.0 x16* *PCI_E3 slot (From B660 Chipset)* *Supports PCIe 3.0 x4* *1x PCIe 3.0 x1 slot (From B660 chipset)*
*Memory*
*Type*	*DDR4*
*Slots*	*4x DDR4 memory slots*
*Supported Memory*	*4x DDR4 memory slots, support up to 128GB* *Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)* *Max overclocking frequency:* *1DPC 1R Max speed up to 4800+ MHz* *1DPC 2R Max speed up to 4000+ MHz* *2DPC 1R Max speed up to 4000+ MHz* *2DPC 2R Max speed up to 3600+ MHz* *Supports Dual-Channel mode* *Supports non-ECC, un-buffered memory* *Supports Intel Extreme Memory Profile (XMP)*
*Maximum Memory*	*Support up to 128GB*
*Graphics*
*Graphics*	*1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz* *1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz*

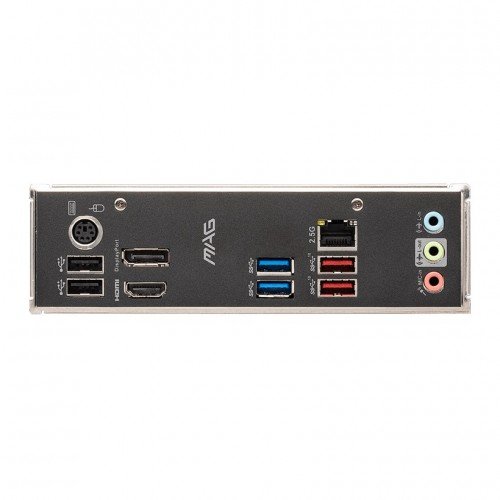

*Connector & Ports*
*HDMI*	*1x HDMI 2.1 with HDR port*
*Display Port (s)*	*1x DisplayPort 1.4 port with HBR3*
*USB (s)*	*Intel B660 Chipset* *2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel* *3x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 1 Type-C available through the internal connector)* *6x USB 2.0 ports (2 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors)* *Asmedia ASM1074* *2x USB 3.2 Gen 1 5Gbps Type-A ports through the internal connector*
*LAN Port (s)*	*1x Realtek 8125BG 2.5Gbps LAN controller*
*Supported Storage*	*4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset)* *2x M.2 slots (Key M)* *M2_1 slot (From CPU)* *Supports PCIe 4.0 x4* *Supports 2242/ 2260/ 2280 storage devices* *M2_2 slot (From B660 Chipset)* *Supports PCIe 4.0 x4* *Supports SATA 6Gb/s* *Supports 2242/ 2260/ 2280 storage devices* *Supports Intel Optane Memory* *Supports Intel Smart Response Technology for Intel Core processors* *Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices*
*Internal I/O Ports*	*1x 24-pin ATX main power connector* *1x 8-pin ATX 12V power connector* *1x 4-pin ATX 12V power connector* *4x SATA 6Gb/s connectors* *2x M.2 slots (M-Key)* *1x USB 3.2 Gen 1 5Gbps Type-C port* *1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)* *2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)* *1x 4-pin CPU fan connector* *1x 4-pin water-pump fan connector* *2x 4-pin system fan connectors* *1x Front panel audio connector* *2x System panel connectors* *1x Chassis Intrusion connector* *1x Clear CMOS jumper* *1x TBT connector (supports RTD3)* *1x Serial port* *1x Tuning Controller connector*
*TPM (Trusted Platform Module )*	*1x TPM module connector*
*Others*
*Special Features*	*Supports 2-Way AMD® CrossFire Technology*
*Warranty Information*
*Manufacturing Warranty*	*3 years*

Description

MSI MAG B660M BAZOOKA DDR4 Micro-ATX Motherboard

The MSI MAG B660M BAZOOKA DDR4 Motherboard supports 14th, 13th & 12th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1700 socket. It supports DDR4 Memory, up to 4800+(OC) MHz. This motherboard comes with Premium Thermal Solution. It is equipped with an extended heatsink design and M.2 Shield Frozr for high-performance system and non-stop works and also this motherboard has 2.5G LAN so that it helps to Upgraded network solutions for professional and multimedia use. Delivers a secure, stable, and fast network connection. By Utilizing 12th Gen Intel processors, the MSI MAG B660M BAZOOKA DDR4 motherboard features the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. This motherboard is designed with Lightning M.2, which helps to run at PCIe Gen 4 and maximizes performance for NVMe-based SSDs. It also has Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1, and also With Steel armor PCIe slots. Supports AMD Crossfire. Here, the 2.5Gbps LAN provides incredible data transfer speed faster than a general Gigabit LAN. This is a premium solution for Gamers. The latest MSI MAG B660M BAZOOKA DDR4 motherboard comes with 03 years of warranty.
