Specification
| Brand | MSI | |
| Supported CPU | Supports 14th, 13th & 12th Gen Intel Core, Pentium Gold and Celeron
Processor socket LGA1700 |
|
| Form Factor | ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
|
| Audio | 7.1-Channel High Definition Audio
Supports S/PDIF output |
|
| Expansion Slots | ||
| PCI | 2x PCIe x16 slots
PCI_E1 (From CPU) Support up to PCIe 4.0 PCI_E2 (From B660 chipset) Support up to PCIe 3.0 x4 1x PCIe 3.0 x1 slot (From B660 chipset) |
|
| M.2 Socket | 3x M.2 slots (Key M) | |
| Memory | ||
| Type | DDR4 | |
| Slots | 4x DDR4 memory slots | |
| Supported Memory | Supports 1R 2133 / 2666 / 3200 MHz (by JEDEC & POR)
Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz Supports AMD CrossFire Technology |
|

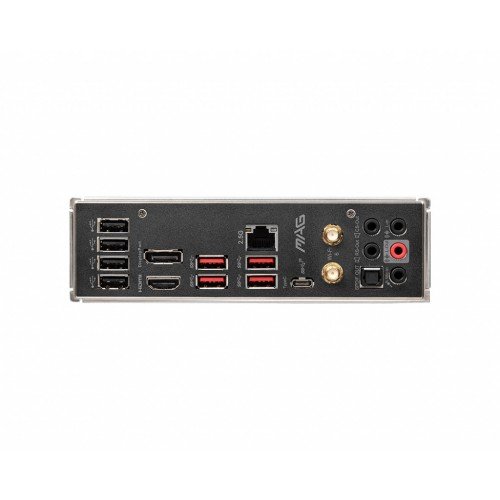

| Connector & Ports | ||
| HDMI | HDMI 2.1 Port | |
| Display Port (s) | DisplayPort 1.4 | |
| USB (s) | 1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
|
| LAN Port (s) | 1x Realtek RTL8125B-CG 2.5Gbps LAN controller | |
| Wireless Communication module | The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2 |
|
| Supported Storage | 6x SATA 6Gb/s ports
SATA5~8 (From B660 chipset) SATAA~B (From ASM1061) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 & M2_3 slots (From B660 chipset) M2_2 supports up to PCIe 4.0 x4 M2_3 supports up to PCIe 4.0 x2 1 Supports SATA up to 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory |
|
| Audio | HD Audio Connectors
1x Front panel audio connector |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 5x 4-pin system fan connectors 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector |
|
| TPM (Trusted Platform Module ) | 1x TPM module connector | |
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |
Description

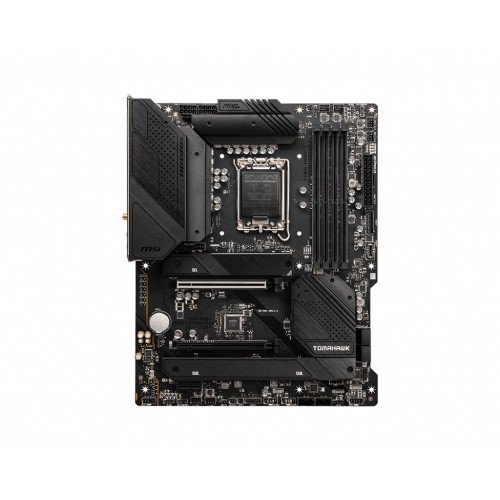

MSI MAG B660 TOMAHAWK WIFI DDR4 ATX Motherboard
MSI MAG B660 TOMAHAWK WIFI DDR4 ATX Motherboard Supports with 14th, 13th & 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket, DDR4 Memory, up to 4800+(OC) MHz. With more cores processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPUs run at full speed with MSI motherboards. Here, Utilizing 12th Gen Intel processors. This motherboard has a Premium Thermal Solution so that Extended Heatsink Design and M.2 Shield Frozr are built for a high-performance system and non-stop work. With the 2.5G LAN and Intel Wi-Fi Solution, it helps to Upgrade network solutions for professional and multimedia use. Delivers a secure, stable, and fast network connection. This motherboard also comes with Running at PCIe Gen 4 maximizes performance for NVMe-based SSDs. Here, Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1. This latest MSI MAG B660 TOMAHAWK WIFI DDR4 motherboard has 03 years warranty.
