Specification
| Brand | MSI | |
| Supported CPU | Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket | |
| Chipset | Intel B460 | |
| BIOS | 1x 128 Mb flash
UEFI AMI BIOS Multi-language |
|
| Form Factor | Miro-ATX Form Factor
9.3 in. x 7.6 in. (23.6 cm x 19.2 cm) |
|
| Expansion Slots | ||
| PCI | 1x PCIe 3.0 x16 slot
2x PCIe 3.0 x1 slots |
|
| M.2 Socket | 1x M.2 slot (Key M)
Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices |
|
| Memory | ||
| Type | Dual-Channel Architecture | |
| Slots | 2x DDR4 memory slots | |
| Supported Memory | Intel Core i7/ i9
Supports up to DDR4 2933 MHz Intel Core i5 and below Supports up to DDR4 2666 MHz Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
|
| Maximum Memory | 64GB | |
| Graphics | ||
| Graphics | 1x DVI-D port, supports a maximum resolution of 1920×1200 @60Hz
1x HDMI 1.4 port, supports a maximum resolution of 4096×2160 @30Hz |
|
| Max Shared Memory | 1GB | |

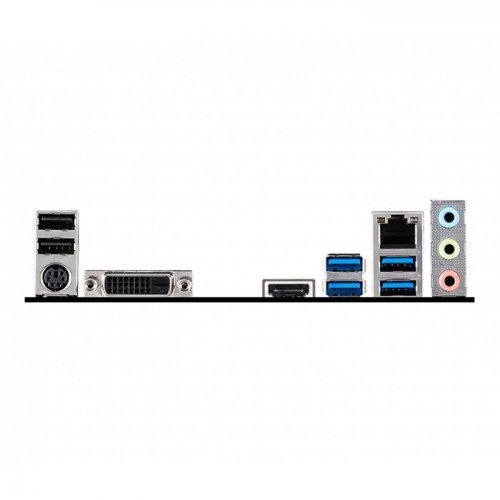

| Connector & Ports | ||
| HDMI | 1x HDMI 1.4 port, maximum resolution of 4096×2160 @30Hz | |
| DVI-D (s) | 1x DVI-D port, maximum resolution of 1920×1200 @60Hz | |
| USB (s) | Intel B460 Chipset
6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) |
|
| LAN Port (s) | 1x Realtek 8111H Gigabit LAN controller | |
| Supported Storage | Intel B460 Chipset
6x SATA 6Gb/s ports 1x M.2 slot (Key M) Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors |
|
| Audio | Realtek ALC892 Codec
7.1-Channel High Definition Audio |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x Front panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 4x EZ Debug LED |
|
| TPM (Trusted Platform Module ) | 1x TPM module connector | |
| Others | ||
| Special Features | Intel B460 Chipset
Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 Years Warranty | |
Description

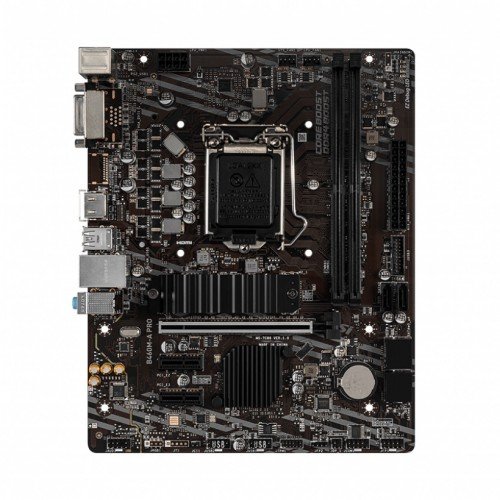

MSI Intel B460M-A Pro 10th Gen Intel Motherboard
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. The world fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. MSI PRO Series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel Optane Memory device. Intel Optane technology provides an unparalleled combination of high throughput, low latency, high quality of service, and high endurance. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill, and many more to optimize memory modules and configurations. Core Boost technology combines MSI’s premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Creating a perfect condition to support multi-core CPU running at full speed.
