Specification
| Video Memory Specifications | ||
| Brand | MSI | |
| Type | GDDR6 | |
| Size | 8GB | |
| Core Clock | Extreme Performance: 2610MHz (MSI Center)
Boost: 2595 MHz |
|
| Resolution | 7680×4320 | |
| Memory Clock | 17 Gbps | |
| BUS Type | 128-bit | |
| Memory Interface | PCI Express Gen 4 x16 (uses x8) | |
| CUDA Cores | 3072 Units | |
| Interface | ||
| HDMI | HDMI x 1 | |
| Display Port | DisplayPort x 3 (v1.4a) | |
| HDCP | Yes | |
| Power Specifications | ||
| Connectors | 8-pin x 1 | |
| Consumption | 115 W | |
| Recommended PSU | 550 W | |
| Display Option | ||
| Multi Display | 4 | |
| Application Programming Interfaces | ||
| DirectX | 12 Ultimate | |
| OpenGL | 4.6 | |
| Physical Specifications | ||
| Dimensions | 247 x 130 x 42 mm | |
| Others | Weight: 587 g | |
| Warranty | ||
| Manufacturing Warranty | 3 years | |
Description

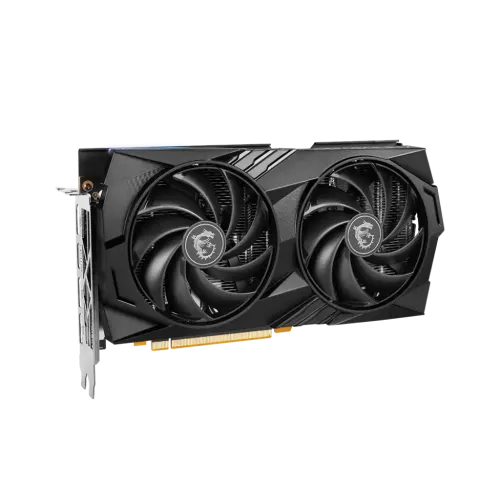

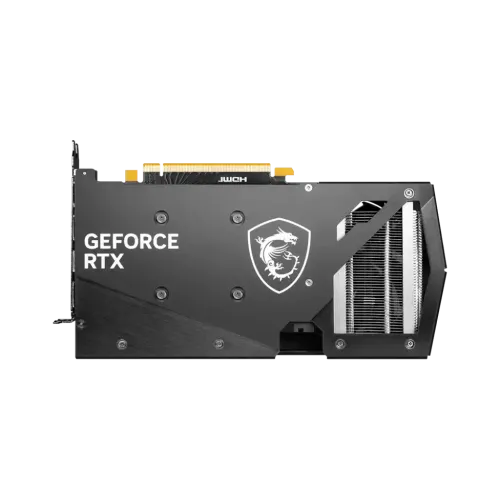

MSI GeForce RTX 4060 GAMING X 8GB GDDR6 Graphics Card
The MSI GeForce RTX 4060 GAMING X is a high-performance graphics card designed for gaming, streaming, and creative tasks. It is powered by the NVIDIA Ada Lovelace architecture, providing efficient and powerful performance for the latest games and applications. With ray tracing and DLSS 3 support, the GeForce RTX 4060 delivers immersive, AI-accelerated gaming experiences. It enables realistic lighting, reflections, and shadows, enhancing the visual quality of games. The card also supports DLSS 3, which uses AI to upscale lower-resolution images to higher resolutions, improving performance without sacrificing image quality. The GeForce RTX 4060 is optimized for creative workloads with NVIDIA Studio. It enables artists, designers, and content creators to supercharge their creative process and boost productivity. The graphics card features 8GB of GDDR6 memory with a speed of 17 Gbps, ensuring smooth and fast performance in demanding applications. It has three DisplayPort 1.4a ports and one HDMI port that supports 4K at 120Hz HDR, 8K at 60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a. The MSI GeForce RTX 4060 GAMING X is equipped with TORX Fan 5.0 technology, featuring fan blades linked by ring arcs and a fan cowl to stabilize and maintain high-pressure airflow. This cooling solution helps keep the GPU temperature in check during intense gaming sessions. The graphics card also includes a copper baseplate that efficiently captures heat from the GPU and memory modules, transferring it rapidly to Core Pipes. The Core Pipes, which consist of square-shape heat pipes, make maximum contact with the GPU and spread the heat to the heatsink for effective cooling. To customize and optimize the graphics card’s performance, MSI provides two software options. Afterburner is a widely recognized and widely used graphics card overclocking software that allows users to take full control over their GPU settings. MSI Center is an exclusive software that provides real-time monitoring, tweaking, and optimization of MSI products, including the GeForce RTX 4060 GAMING X. The MSI GeForce RTX 4060 GAMING X 8GB GDDR6 Graphics Card offers extreme performance, advanced cooling technology, and software tools for gamers, content creators, and professionals seeking a powerful and reliable graphics solution.
