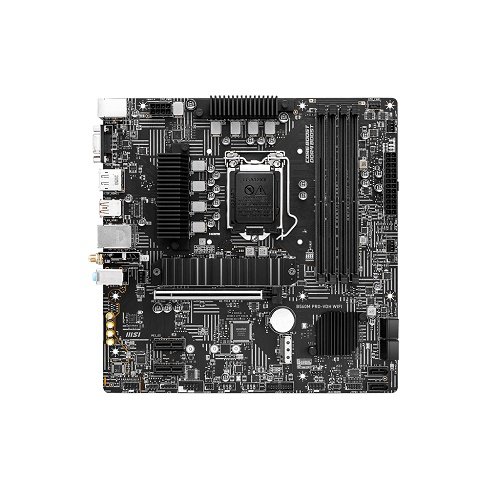

MSI B560M PRO-VDH WIFI Intel 10th and 11th Gen Micro ATX Motherboard (Global) - Image 1

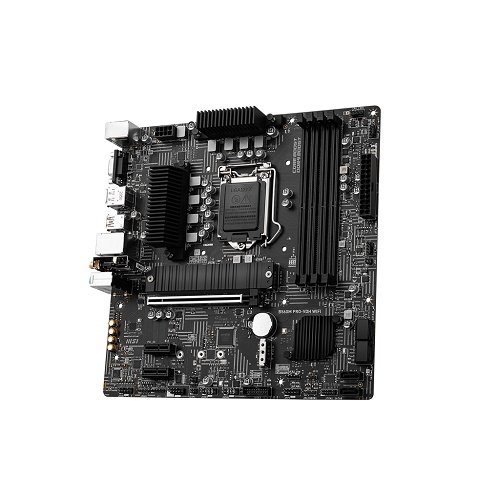

MSI B560M PRO-VDH WIFI Intel 10th and 11th Gen Micro ATX Motherboard (Global) - Image 2

MSI B560M PRO-VDH WIFI Intel 10th and 11th Gen Micro ATX Motherboard (Global)

Key Features
Model: B560M PRO-VDH WIFI
Supports DDR4, up to 5066(OC) MHz
2.5G LAN, Lightning Fast Experience
Socket: LGA 1200, Form Factor: Micro ATX
Supports 10th and 11th Gen, Pentium Gold and Celeron processors

Out of stock

Add to compare

Add to wishlist

18 People watching this product now!

Specification and Description

Specification

*Brand*	*MSI*
*Supported CPU*	*Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors* *Processor socket LGA1200*
*Chipset*	*Intel B560 chipset*
*BIOS*	*1x 256 Mb flash* *UEFI AMI BIOS* *ACPI 6.2, SMBIOS 3.0* *Multi-language*
*Form Factor*	*Micro-ATX Form Factor* *9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)*
*Audio*	*7.1-Channel High Definition Audio*
*Expansion Slots*
*PCI*	*1x PCIe x16 slot (From CPU)* *PCI_E1 (From CPU)* *Support up to PCIe 4.0 for 11th Gen Intel CPU* *Support up to PCIe 3.0 for 10th Gen Intel CPU* *2x PCIe 3.0 x1 slots (From B560 chipset)*
*M.2 Socket*	*2x M.2 slot (Key M)*
*Memory*
*Type*	*DDR4*
*Slots*	*4x DDR4 memory slots*
*Supported Memory*	*Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)* *Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)* *Max overclocking frequency:* *1DPC 1R Max speed up to 5066 MHz* *1DPC 2R Max speed up to 4600+ MHz* *2DPC 1R Max speed up to 4266+ MHz* *2DPC 2R Max speed up to 4000+ MHz* *Supports Dual-Channel mode* *Supports non-ECC, un-buffered memory* *Supports Intel Extreme Memory Profile (XMP)*
*Maximum Memory*	*up to 128GB*
*Graphics*
*Graphics*	*1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz12* *1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz12* *1x VGA port, supports the maximum resolutions of 2048×1536 @50Hz, 2048×1280 @60Hz and 1920×1200 @60Hz*
*Connector & Ports*
*HDMI*	*1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz*
*Display Port (s)*	*1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz*

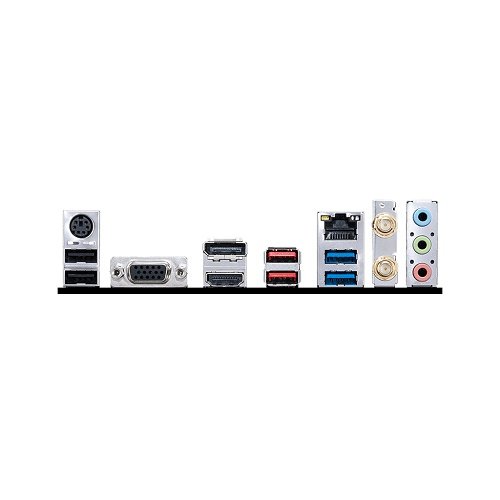

*USB (s)*	*2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel* *4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)* *2x USB 2.0 Type-A ports on the back panel* *USB Hubs GL850G* *4x USB 2.0 ports are available through the internal USB 2.0 connectors*
*LAN Port (s)*	*1x Realtek 8125B 2.5Gbps LAN controller*
*Supported Storage*	*– 6x SATA 6Gb/s ports (From B560 chipset)* *– 2x M.2 slot (Key M)* *– M2_1 slot* *– Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU)* *– Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)1* *– Supports 2242/ 2260/ 2280/ 22110 storage devices* *– M2_2 slot2 (from B560 chipset)* *– Supports up to PCIe 3.0 x4* *– Supports 2242/ 2260/ 2280 storage devices* *– Intel Optane Memory Ready* *– Supports Intel Smart Response Technology for Intel Core processors*
*Audio*	*Realtek AL897 Codec* *7.1-Channel High Definition Audio* *1x Front panel audio connector*
*Internal I/O Ports*	*1x 24-pin ATX main power connector* *1x 8-pin ATX 12V power connector* *6x SATA 6Gb/s connectors* *2x M.2 slots (M-Key)* *1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports)* *2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)* *1x 4-pin CPU fan connector* *1x 4-pin water-pump fan connector* *2x 4-pin system fan connectors* *1x Front panel audio connector* *2x System panel connectors* *1x Chassis Intrusion connector* *1x Clear CMOS jumper* *1x Serial port connector* *1x Tuning Controller Connector*
*TPM (Trusted Platform Module )*	*1 x TPM module connector*
*Warranty Information*
*Manufacturing Warranty*	*03 years warranty*

Description

MSI B560M PRO-VDH WIFI Intel 10th and 11th Gen Micro ATX Motherboard (Global)

The MSI motherboards comes with tons of convenient and smart design for DIY users. In this motherboard, countless system tuning and troubleshooting tools are push the system to new height and satisfy even the most demanding tweaker.

The latest MSI B560M PRO-VDH WIFI Motherboard supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket, DDR4 Memory, up to 5066(OC) MHz. This motherboard featured with Core Boost with premium layout and digital power design to support more cores and provide better performance. Here used Advanced technology to deliver pure data signals for the best performance and stability. This motherboard has PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr that provides you Lightning Fast Experience. By 2.5G LAN you can Upgraded network solution for professional and multimedia use that delivers a secure, stable and fast network connection. Here, Audio Boost, reward your ears with studio grade sound quality. This motherboard has Steel Armor that Protecting VGA cards against bending for better performance, stability and strength.

This latest MSI PRO series motherboards are designed for professional and satisfy workflow. The MSI B560M PRO-VDH WIFI Intel 10th and 11th Gen mATX Motherboard has 03 years of warranty.
