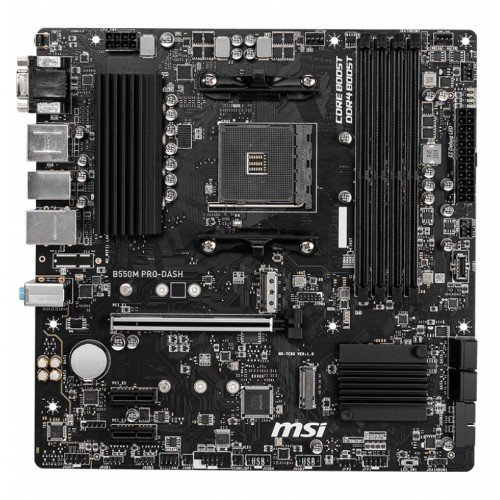

MSI B550M PRO-DASH AM4 Micro-ATX Motherboard

Key Features
Model: B550M PRO-DASH
Premium Thermal Solution
Lightning Fast Experience
Supports DDR4, up to 2933 MHz
Supports Ryzen 5000 & 3000 Series and Ryzen 4000 G-Series processors

Out of stock

Add to compare

Add to wishlist

10 People watching this product now!

Specification and Description

Specification

*Brand*	*MSI*
*Supported CPU*	*Supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors*
*Chipset*	*AMD B550 Chipset*
*Form Factor*	*Micro-ATX Form Factor* *9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)*
*Expansion Slots*
*PCI*	*1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) 1* *2x PCIe 3.0 x1 slots*
*M.2 Socket*	*2x M.2 slots (Key M)* *M2_1 slot (from AMD processor)* *Supports PCIe 4.0/ 3.0 x4* *Supports SATA 6Gb/s* *Supports 2242/ 2260/ 2280 storage devices* *M2_2 slot (from AMD B550 chipset)* *Supports PCIe 3.0×4* *Supports 2242/ 2260/ 2280 storage devices*
*Memory*
*Type*	*DDR4*
*Slots*	*4x DDR4 memory slots*
*Supported Memory*	*Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933 MHz by JEDEC* *Dual channel memory architecture* *Supports non-ECC UDIMM memory* *Supports ECC UDIMM memory* *Supports un-buffered memory*
*Maximum Memory*	*128GB*
*Graphics*
*Graphics*	*1x VGA port, supports resolution of 2048 x 1536 50Hz, 2048 x 1280 60Hz, 1920×1200 60Hz* *1x DisplayPort, supports a maximum resolution of 4096 x 2160 60Hz* *1x HDMI 2.1 port, supports a maximum resolution of 4096 x 2160 60Hz* *Support HDCP 1.4 & 2.3*
*Max Shared Memory*	*16GB*
*Connector & Ports*
*HDMI*	*1x HDMI 2.1 port, supports a maximum resolution of 4096×2160 60Hz*
*Display Port (s)*	*1x DisplayPort, supports a maximum resolution of 4096×2160 60Hz*
*VGA (s)*	*1x VGA port, supports resolution of 2048×1536 @50Hz, 2048 x 1280 60Hz, 1920 x 1200 @60Hz*
*USB (s)*	*AMD A520 Chipset:* *2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector* *6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)* *AMD Processor:* *4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel*
*LAN Port (s)*	*1x Realtek RTL8111EPV 1Gbps LAN controller*
*Supported Storage*	*AMD B550 Chipset* *4x SATA 6Gb/s ports* *2x M.2 slots (Key M)* *M2_1 slot (from AMD processor)* *Supports PCIe 4.0/ 3.0 x4* *Supports SATA 6Gb/s* *Supports 2242/ 2260/ 2280 storage devices* *M2_2 slot (from AMD B550 chipset)* *Supports PCIe 3.0×4* *Supports 2242/ 2260/ 2280 storage devices*
*Audio*	*Realtek ALC892/ ALC897 Codec* *7.1-Channel High Definition Audio*
*Internal I/O Ports*	*1x 24-pin ATX main power connector* *1x 8-pin ATX 12V power connector* *4x SATA 6Gb/s connectors* *2x M.2 slots (M-Key)* *1x USB 3.2 Gen 1 5Gbps Type-C port* *1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)* *2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)* *1x 4-pin CPU fan connector* *1x 4-pin water-pump fan connector* *3x 4-pin system fan connectors* *1x Front panel audio connector* *2x System panel connectors* *1x Serial port connector* *1x Chassis Intrusion connector* *2x 4-pin RGB LED connectors* *2x 3-pin RAINBOW LED connectors* *1x Clear CMOS jumper*
*TPM (Trusted Platform Module )*	*1 x TPM module connector*
*Warranty Information*
*Manufacturing Warranty*	*03 Years Warranty*

Description

MSI B550M PRO-DASH AM4 Micro-ATX Motherboard

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

STABILITY & RELIABILITY

Secure boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, and the operating system. The PC boots while the signatures are valid. The TPM (Trusted Platform Module) enhances security above and beyond the capabilities of consumer software, which is also used to keep your PC running well. MSI PRO series motherboards support TPM to enable a deeper and broader level of security coverage.

CONNECTIVITY

B550M PRO-DASH equips Realtek 8111EPV Gigabit LAN, a security network solution combines a triple-speed IEEE 802.3 compatible Media Access Controller (MAC) with a triple-speed Ethernet transceiver and PCI Express bus controller. With state-of-the-art DSP technology and mixed-mode signal technology, the RTL8111EPV offers functions such as Crossover Detection and Auto-Correction, polarity correction, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, and error correction are implemented to provide robust transmission and reception capability at high speeds.

EXPERIENCE MORE

An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking. MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design and server grade PCB, you can enjoy next-gen devices without any compromise. Core Boost technology combines MSI’s premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
