Specification
| Brand | Maxsun |
| Supported CPU | Support for LGA1700 slots
The 12th ,13th and14t generation processors TDP: 75W |
| Mainboard | |
| Chipset | INTEL B760 High-speed chipset |
| Memory | |
| Memory | 2x DIMM DDR5 memory slots
Maximum support in total is 128GB Support for dual-channel memory technology Support for 4800/5200/5600/OC + memory frequency Supports Intel XMP Technology |
| Storage | |
| Storage | 1x M.2 slots (2242 / 2280 PCIE X4 / X2 channel SSD supported only)
3x SATA 3.0 ports |
| Display | |
| Display | HDMI 1.4: 4096×2160 @30Hz (HDCP2.2)
VGA: 1920×1080 @60Hz |
| Graphics | |
| Graphics | 1x VGA
*Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz 1x HDMI port *HDMI port supports up to 4K@30Hz *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
| Audio & Microphone | |
| Audio | Integrated REALTEK ALC 897 sound chip |
| Networking & Connectivity | |
| Networks | Integrated REALTEK 8111H card chip (10 / 100 / 1000 / 2500 Mbit)
1x onboard R]45 port Support network arousal Support PXE no disk, UEFI no disk guide Support for Bluetooth 5.2 |
| Software | |
| Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
| Technical Info | |
| LED Type | 4x Distributed Debug LED |
| Ports | |
| Slots | 1x PCIE X16 4.0 slot
3.0 sl Support for AMD and NVIDIA and INTEL graphics cards Support for PCIE resizable bar technology(Requires CPU and GPU to support synchronous compatibility) |
| Internal I/O Ports | 1x 24-PIN motherboard ATX power supply
1x 8-PIN motherboard ATX 12V power supply port, 12V input, 1x sets of system fan pins and 1x group of CPU fan pins 1x group of PUMP fan pins lx group chassis front control panel pin (F PANEL) One 12V N RGB pin and two 5V ARGB pins |
| USB | *On-board rear port: 2x USB 3.2 GEN 2 ports, 6x USB2.0 ports
Plate insert: 1x group (2 double rows) USB2.0 pins, 1x group (single row) USB2.0 pin, 1xgroup (2 rows) USB 3.2 GEN 1 pin, 1x TYPE C(USB 3.2 GEN 2X2) ports |
| Physical Specification | |
| Form Factor | Micro ATX 225mm x 195mm |
| Warranty | 3 Years |
Description

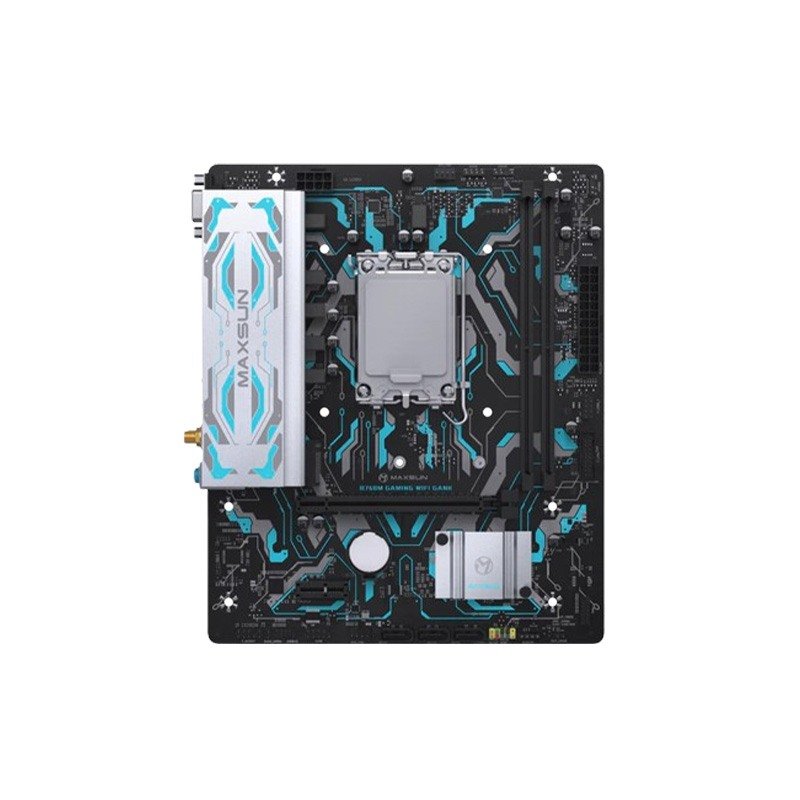

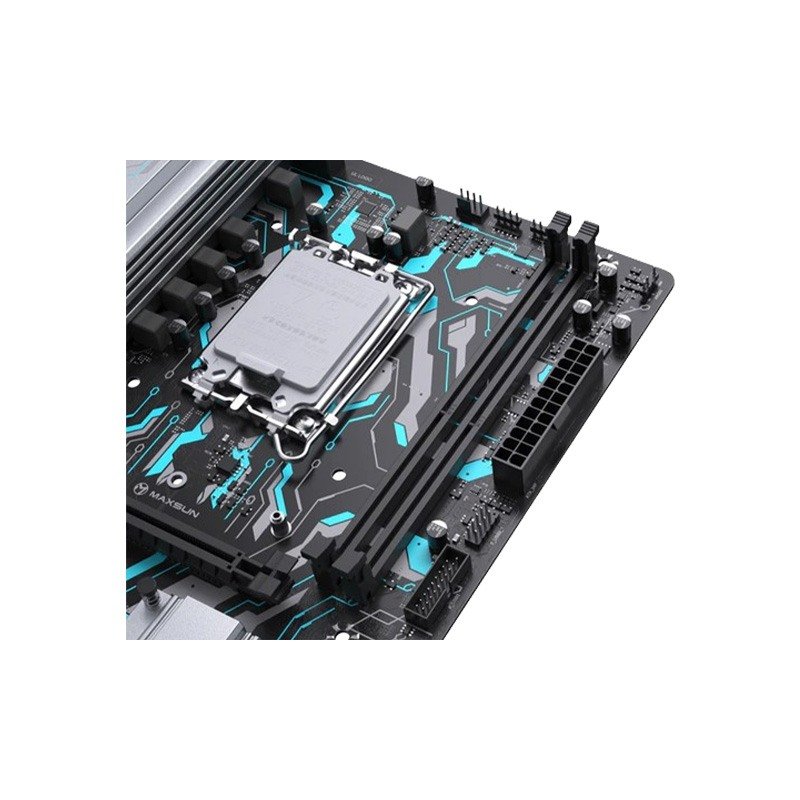

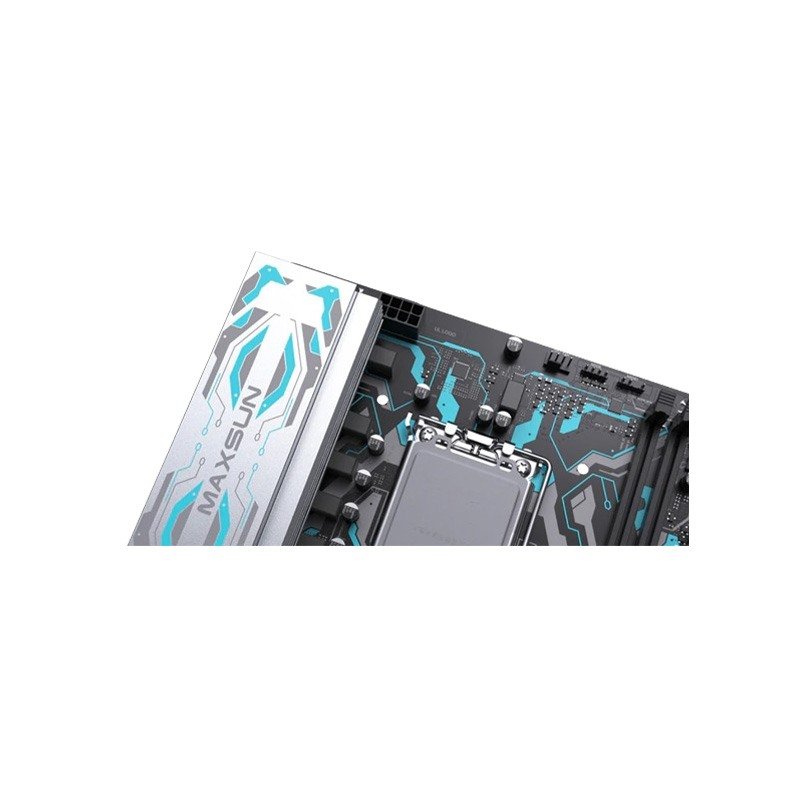

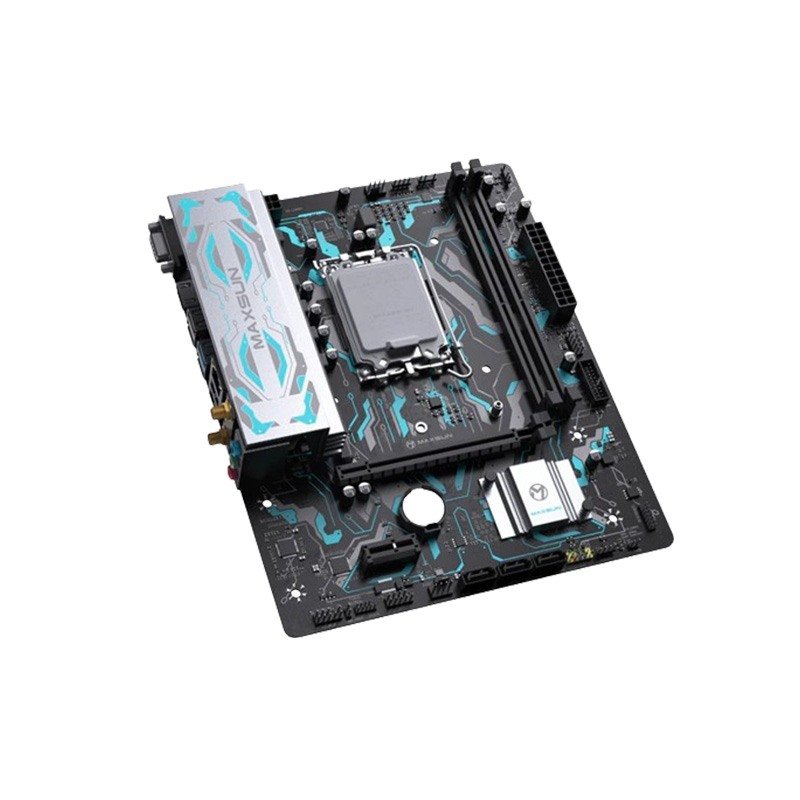

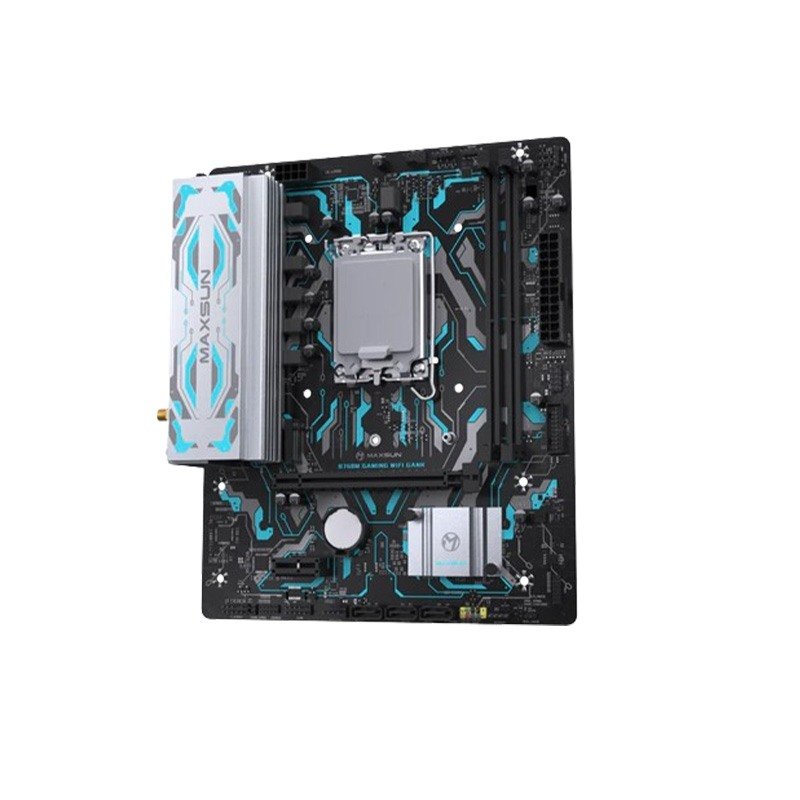

Maxsun B760M Gaming Gank Wifi DDR5 Micro ATX Motherboard in Bangladesh
The Maxsun B760M Gaming Gank Wifi DDR5 Micro ATX Motherboard, available designed to elevate your gaming experience with exceptional performance and reliability. Powered by the INTEL B760 High-speed chipset, this motherboard supports LGA1700 slots and the 12th, 13th, and 14th generation processors with a TDP of 75W, ensuring seamless compatibility and efficient operation. With 2x DIMM DDR5 memory slots supporting up to 128GB of total memory capacity and dual-channel memory technology, coupled with support for memory frequencies up to 5600/OC + and Intel X MP Technology, this motherboard delivers lightning-fast responsiveness for smooth gaming sessions. The onboard graphics feature 1x VGA and 1x HDMI™ port with resolutions of up to 4K@30Hz, while the expansion slots include 1x PCIE X16 4.0 slot and 3.0 slots, providing extensive support for AMD, NVIDIA, and INTEL graphics cards. Storage options include 1x M.2 slots and 3x SATA 3.0 ports, offering ample space for your gaming library. With an integrated REALTEK 8111H card chip for network connectivity and a REALTEK ALC 897 sound chip for immersive audio, this motherboard ensures seamless communication and crystal-clear sound quality. The Micro ATX form factor and comprehensive internal I/O options make installation and customization hassle-free, while the 3-year warranty provides peace of mind for long-term reliability. Elevate your gaming rig with the Maxsun B760M Gaming Gank Wifi DDR5 Micro ATX Motherboard and experience unparalleled performance and stability. Maxsun B760M Motherboard price in BD ensures affordability without compromising on quality, making it the ideal choice for gamers in Bangladesh.
