Specification
| Brand | Gigabyte | |
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series/ AMD Ryzen 3000 Series/ AMD Ryzen 3000 G-Series/ AMD Ryzen 2000 Series/ AMD Ryzen 2000 G-Series Processors
(Please refer to “CPU Support List” for more information.) |
|
| Chipset | AMD X570 | |
| BIOS | 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek ALC1220-VB codec
(The back panel line out jack supports DSD audio.) High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| Expansion Slots | ||
| PCI | Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 5000 G-Series/4000 G-Series/2000 Series Processors support PCIe 3.0 x16 mode AMD Ryzen 3000 G-Series/2000 G-Series Processors support PCIe 3.0 x8 mode For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 4.0(Note)/3.0 x4 mode 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: Supporting PCIe 4.0(Note)/3.0 x2 mode The PCIEX4 slot shares bandwidth with the PCIEX2 slot. When the PCIEX2 slot is populated, the PCIEX4 slot operates at up to x2 mode. (Note) For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only. |
|
| M.2 Socket | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280/22110 SSDs:
AMD Ryzen 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 2 x M.2 connectors (M2B_SB/M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2260/2280/22110 SSDs: Supporting SATA and PCIe 4.0(Note)/3.0 x4/x2 SSDs 6 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors. (Note) For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only. |
|
| Memory | ||
| Type | Dual channel memory architecture | |
| Slots | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Supported Memory | Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules ECC memory (ECC mode) support varies by CPU Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer to “Memory Support List” for more information.) |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | Integrated Graphics Processor:
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR. |
|
| Max Shared Memory | 16 GB | |
| Connector and Ports | ||
| HDMI | 1 x HDMI port | |
| USB (s) | CPU:
4 x USB 3.2 Gen 1 ports on the back panel Chipset+ASMedia USB 3.2 Gen 2×2 Controller: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2×2 support Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless Communication module | AMD Wi-Fi 6E RZ608 (MT7921K)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate (Actual data rate may vary depending on environment and equipment.) |
|
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280/22110 SSDs:
AMD Ryzen 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 2 x M.2 connectors (M2B_SB/M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2260/2280/22110 SSDs: Supporting SATA and PCIe 4.0(Note)/3.0 x4/x2 SSDs 6 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors. (Note) For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only. |
|
| Internal I/O Ports | Internal I/O Connectors
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Thunderbolt add-in card connector 1 x Clear CMOS jumper I/O Controller: iTE I/O Controller Chip |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) | |
| Others | ||
| Special Features | Support for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
|
| Bundled Software | Norton Internet Security (OEM version)
Realtek 8125 Gaming LAN Bandwidth Control Utility |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |
Description

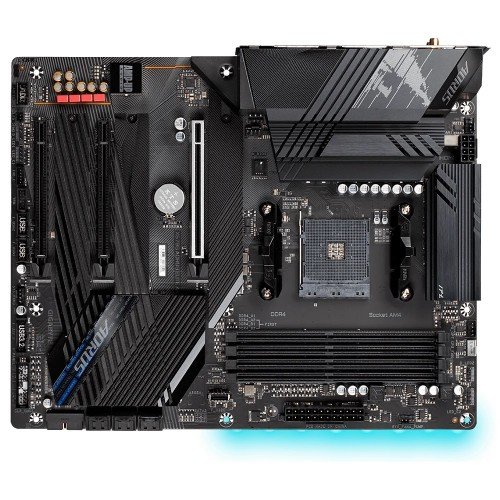

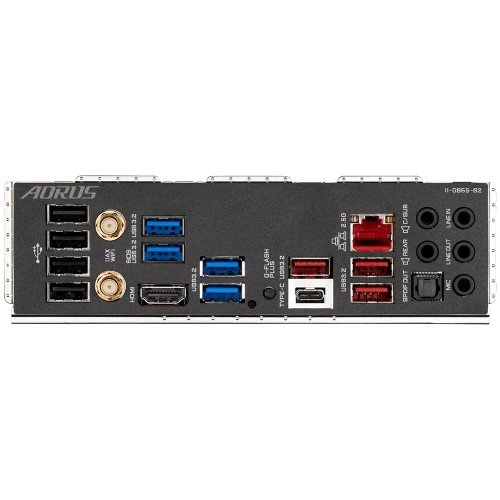

GIGABYTE X570S AORUS ELITE AX AMD Motherboard
GIGABYTE X570S AORUS ELITE AX motherboard features upgraded power solution, passive and silent thermal design, and PCIe 4.0 components, that helps to keep your gaming system up to fast and powerful, even under heavy workloads. GIGABYTE X570S AORUS ELITE AX AMD Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 Series/ Ryzen 3000 G-Series/ Ryzen 2000 Series/ Ryzen 2000 G-Series Processors. This motherboard comes with Dual Channel ECC/ Non-ECC Unbuffered DDR4, ATX Form Factor; 30.5cm x 24.4cm, 4 DIMMs, Twin 12+2 Phases Digital VRM, Solution with 60A DrMOS, Fully Covered Thermal Design with High Coverage MOSFET Heatsinks and AMD WiFi 6E 802.11ax (WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate) & Bluetooth 5.2. the motherboard has Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards, Fast 2.5GbE LAN with Bandwidth Management, SuperSpeed USB 3.2 Gen 2×2 TYPE-C delivers up to 20Gb/s transfer speeds, AMP-UP Audio with ALC1220-VB and WIMA Audio Capacitors, Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. This motherboard is also designed with RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED and RGB LED Strips, Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card. The Latest GIGABYTE X570S AORUS ELITE AX comes with a 03 years warranty.
