GIGABYTE UD1000GM PG5 1000W 80+ Gold Full Modular Power Supply
Key Features
Model: UD1000GM PG5
120mm smart hydraulic bearing (HYB) fan
Support PCIe Gen 5.0 graphics card
80 PLUS Gold certified
Fully modular design
Out of stock
Specification and Description
Specification
| Brand | Gigabyte | |
| Efficiency (Approx.) | 90% at typical load | |
| Certification | 80 PLUS Gold | |
| Fan Size | 120mm Hydraulic Bearing(HYB)fan | |
| Input | ||
| Voltage | 100-240 Vac (full range) | |
| Frequency Range | 60-50 Hz | |
| Current | 1‎2-6 A | |
| Output | ||
| Modular Type | Fully Modular | |
| Total Power | 1000W | |

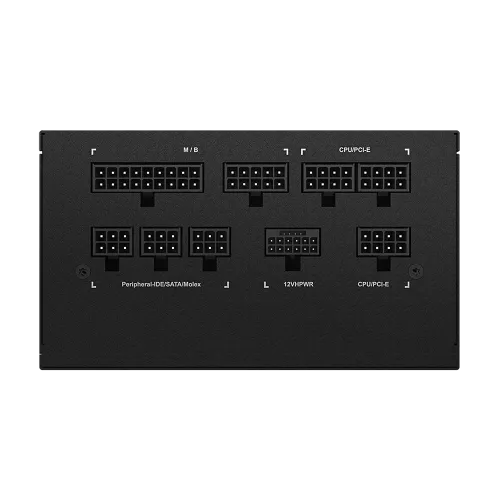

| Connector | ||
| Main Power | ATX/MB 20+4 Pin x 1 : 610mm*1 | |
| CPU | CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1 | |
| PCI-E | PCI-e 12+4 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2 |
|
| SATA | SATA x 8 :
600mm+150mm+150mm+150mm*2 |
|
| Floppy | 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1 | |
| Warranty Information | ||
| Manufacturing Warranty | 10-Year | |
Description
GIGABYTE UD1000GM PG5 1000W 80+ Gold Full Modular Power Supply
The GIGABYTE UD1000GM PG5 1000W Power supply features a wide range of high-quality materials and designs. Ultra Durable has high-quality Japanese primary capacitors, an improved thermal solution, a 120mm smart hydraulic bearing (HYB) fan, and six circuit safety designs. It provides users with a high-quality, reliable power source that may be utilized for an extended period. The primary capacitors are made of high-quality Japanese capacitors to ensure efficient performance and long-term durability. In comparison to the standard thermal solution, we increased the heatsink size by 200% or more and optimized the airflow. The heat dissipation performance is improved by more than 10%, extending the component’s service life. When the system is idle or under a low load (less than 20% load), the fan speed is automatically regulated and ceases. The hydraulic bearing fan has a longer and more reliable life cycle. The GIGABYTE UD1000GM PG5 1000W Ultra Durable 80+ Gold Full Modular Power Supply comes with a 10-Year Warranty.
