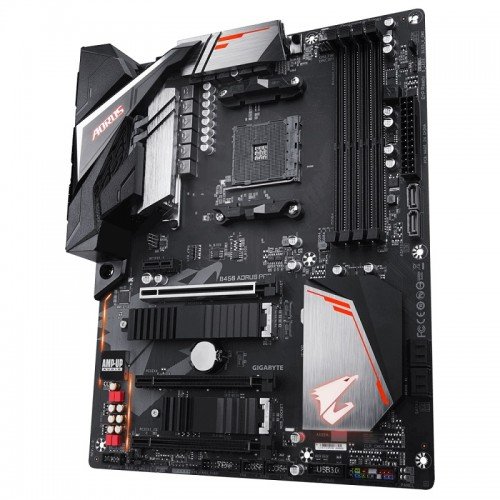

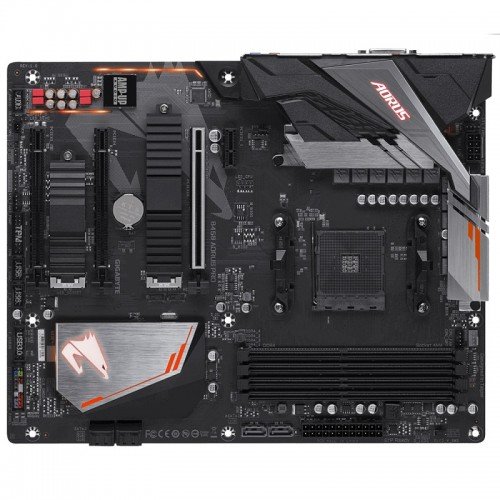

Gigabyte B450 AORUS PRO AM4 AMD ATX Motherboard

Key Features
Model: B450 AORUS PRO
Brand: GIGABYTE
Memory: 4 x DDR4, Max 64 GB
4 x PCI Express slots
Supports Up to AMD Ryzen 5000 series Processors
Chipset: AMD B450

Out of stock

Add to compare

Add to wishlist

10 People watching this product now!

Specification and Description

Specification

*Brand*	*GIGABYTE*
*Supported CPU*	*AMD Ryzen™ 2nd Generation processors* *AMD Ryzen™ with Radeon™ Vega Graphics processors* *AMD Ryzen™ 1st Generation processors*
*Chipset*	*AMD B450*
*BIOS*	*2 x 128 Mbit flash* *Use of licensed AMI UEFI BIOS* *Support for Dual BIOS™* *PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0*
*Form Factor*	*ATX Form Factor; 30.5cm x 24.4cm*
*Expansion Slots*
*PCI*	*1 x PCI Express x16 slot, running at x16 (PCIEX16)* * Actual support may vary by CPU. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. *(The PCIEX16 slot conforms to PCI Express 3.0 standard.)* *1 x PCI Express x16 slot, running at x4 (PCIEX4)* * The PCIEX4 slot shares bandwidth with the PCIEX1_1 and PCIEX1_2 slots. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_1/PCIEX1_2 slot is populated. The PCIEX4 slot operates at up to x4 mode when both of the PCIEX1_1 and PCIEX1_2 slots are empty. *1 x PCI Express x16 slot, running at x1 (PCIEX1_2)* *1 x PCI Express x1 slot (PCIEX1_1)* *(The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)*
*M.2 Socket*	*1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET)* *1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET)*
*Memory*
*Type*	*Dual Channel DDR4 Memory Technology*
*Slots*	*4 x DDR4 DIMM*
*Supported Memory*	*Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules* *Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)* *Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules* *Support for Extreme Memory Profile (XMP) memory modules*
*Maximum Memory*	*64 GB*
*Graphics*
*Graphics*	*Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies*

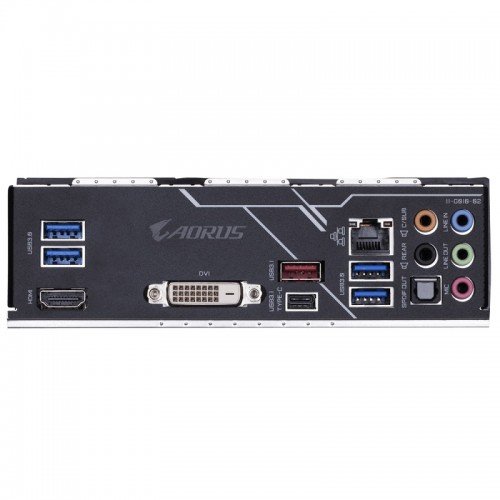

*Connector and Ports*
*HDMI*	*1 x HDMI port*
*USB (s)*	*Chipset:* *1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support* *1 x USB 3.1 Gen 2 Type-A port (red) on the back panel* *2 x USB 3.1 Gen 1 ports available through the internal USB header* *4 x USB 2.0/1.1 ports available through the internal USB headers* *CPU:* *4 x USB 3.1 Gen 1 ports on the back panel*
*LAN Port (s)*	*Intel® GbE LAN chip (10/100/1000 Mbit)*
*Supported Storage*	*1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET)* *1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET)* *6 x SATA 6Gb/s connectors* *Support for RAID 0, RAID 1, and RAID 10* * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
*Audio*	*Realtek® ALC1220-VB codec* *High Definition Audio* *2/4/5.1/7.1-channel* *Support for S/PDIF Out*
*Internal I/O Ports*	*1 x 24-pin ATX main power connector* *1 x 8-pin ATX 12V power connector* *2 x M.2 Socket 3 connectors* *6 x SATA 6Gb/s connectors* *1 x CPU fan header* *1 x water cooling CPU fan header* *2 x system fan headers* *1 x system fan/water cooling pump header* *1 x CPU cooler LED strip/RGB LED strip header* *2 x digital LED strip headers* *2 x digital LED strip power select jumpers* *1 x RGB (RGBW) LED strip header* *1 x front panel header* *1 x front panel audio header* *1 x S/PDIF Out header* *1 x USB 3.1 Gen 1 header* *2 x USB 2.0/1.1 headers* *1 x Clear CMOS jumper*
*TPM (Trusted Platform Module )*	*1 x Trusted Platform Module (TPM) header (2×10 pin, for the GC-TPM2.0 module only)*
*Warranty Information*
*Manufacturing Warranty*	*03 years*

Description

Gigabyte B450 AORUS PRO ATX AMD AM4 socket Ryzen series CPU supported Dual Channel DDR4 maximum 64GB memory motherboard has the capability of Dual Ultra-Fast NVMe PCIe Gen3 M.2 with Dual Thermal Guards and 4 PCIe slots. Considering the graphics, it will support AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies. This exclusive motherboard has the facility of USB Type-C, USB 3.1 Gen 2, Intel® GbE LAN with cFosSpeed Internet Accelerator Software and RealtekÂ® ALC1220-VB codec HD Audio connectivity with . This Hybrid Digital PWM board is Intel® GbE LAN with cFosSpeed and CEC 2019 ready.

Purchase Gigabyte B450 AORUS PRO board with 3 years of warranty facility at best price from in Dhaka, Rangpur, Chattagram, Khulna and Sylhet. Order the latest AMD board from an online store and have the delivery at any location in Bangladesh.
