Specification
| Brand | GIGABYTE | |
| Supported CPU | AMD Ryzen™ 2nd Generation processors
AMD Ryzen™ with Radeon™ Vega Graphics processors AMD Ryzen™ 1st Generation processors |
|
| Chipset | AMD B450 | |
| BIOS | 2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS Support for Dual BIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* Actual support may vary by CPU. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.) |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) | |
| Memory | ||
| Type | Dual Channel DDR4 Memory Technology | |
| Slots | 4 x DIMM | |
| Supported Memory | Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 64 GB | |
| Graphics | ||
| Graphics | 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.2. * Actual support may vary by CPU. |
|
| Max Shared Memory | 16 GB | |

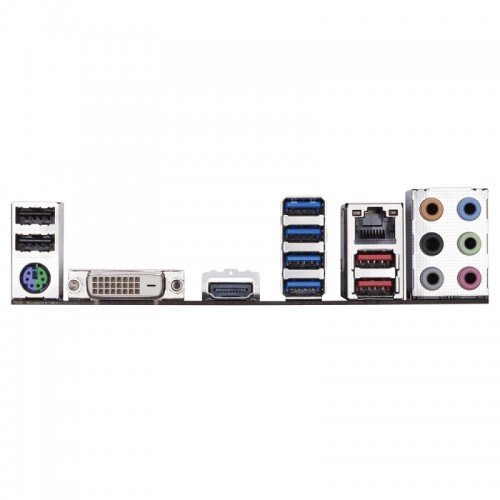

| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| DVI-D (s) | 1 x DVI-D | |
| USB (s) | Chipset:
2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel |
|
| LAN Port (s) | Realtek® GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors. |
|
| Audio | Realtek® ALC892 codec
High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x CPU cooler LED strip/RGB LED strip header 1 x RGB (RGBW) LED strip header 2 x digital LED strip headers 2 x digital LED strip power select jumpers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2×10 pin, for the GC-TPM2.0 module only) | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |
Description

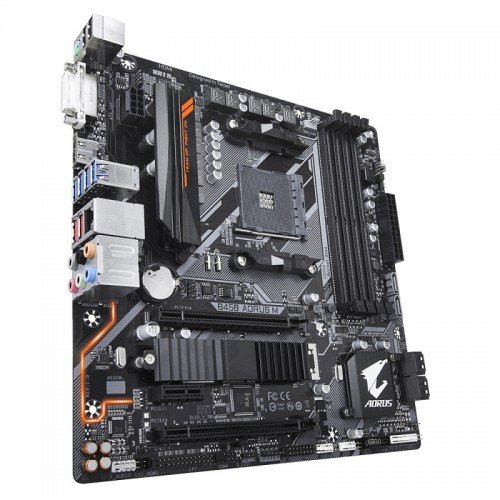

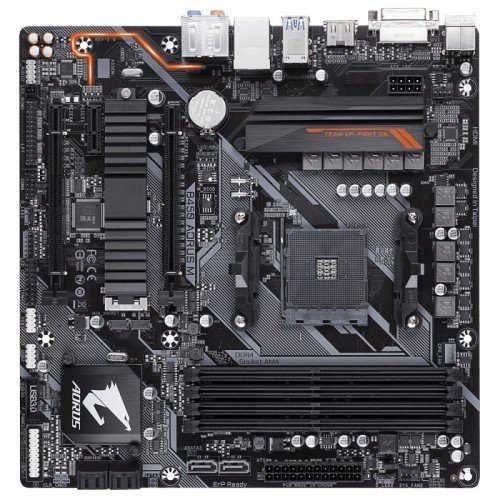

Gigabyte B450 AORUS M Micro ATX AMD AM4 socket Ryzen series CPU supported Dual Channel DDR4 maximum 64GB memory motherboard has the capability of Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Thermal Guard and RGB FUSION with Multi-Zone LED Light Show Design that supports Digital LED & RGB LED Strips. Considering the graphics, it will support HDMI, DVI-D Ports for Multiple Display having maximum resolution of 1920×1200@60 Hz for DVI-D & 4096×2160@60 Hz for HDMI port. This High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting motherboard has the facility of USB Type-Ac„¢, Exclusive 8118 Gaming LAN with Bandwidth Management with Smart Fan 5 Features 5 Temperature Sensors and 3 Hybrid Fan Headers with FAN STOP and APP Center Including EasyTune„¢ and Cloud Station„¢ Utilities. This Anti-Sulfur Resistors Design board has Ultra Durable„¢ 25KV ESD and 15KV Surge LAN Protection and CEC 2019 Ready for saving Power with a Simple Click.
Buy Gigabyte B450 AORUS M board with 3 years of warranty facility available at best price for the market of Bangladesh. Shop online and place your order at our online shop to have your precious board.
