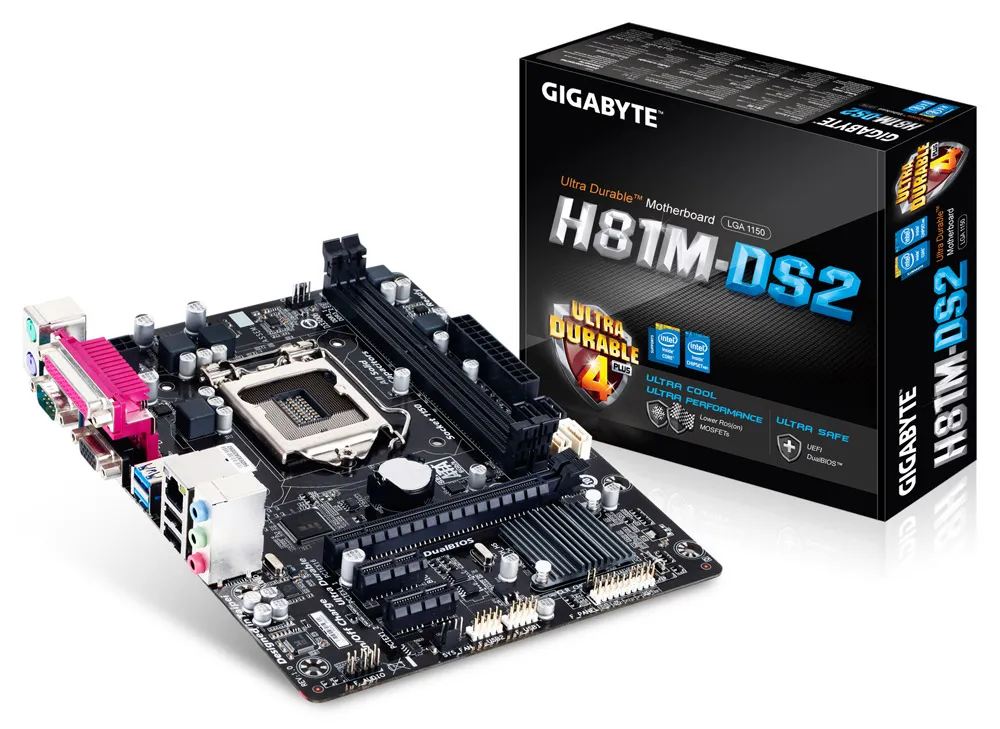

Gigabyte ATX Motherboard GA-H81M-DS2 Micro - Image 1

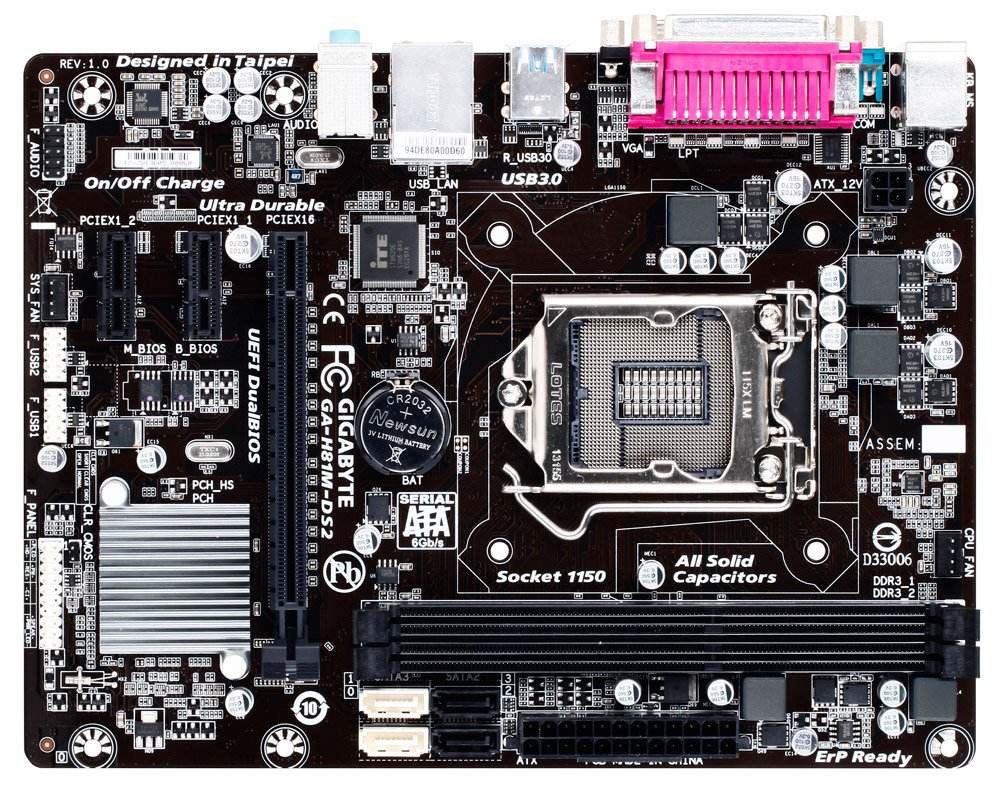

Gigabyte ATX Motherboard GA-H81M-DS2 Micro - Image 2

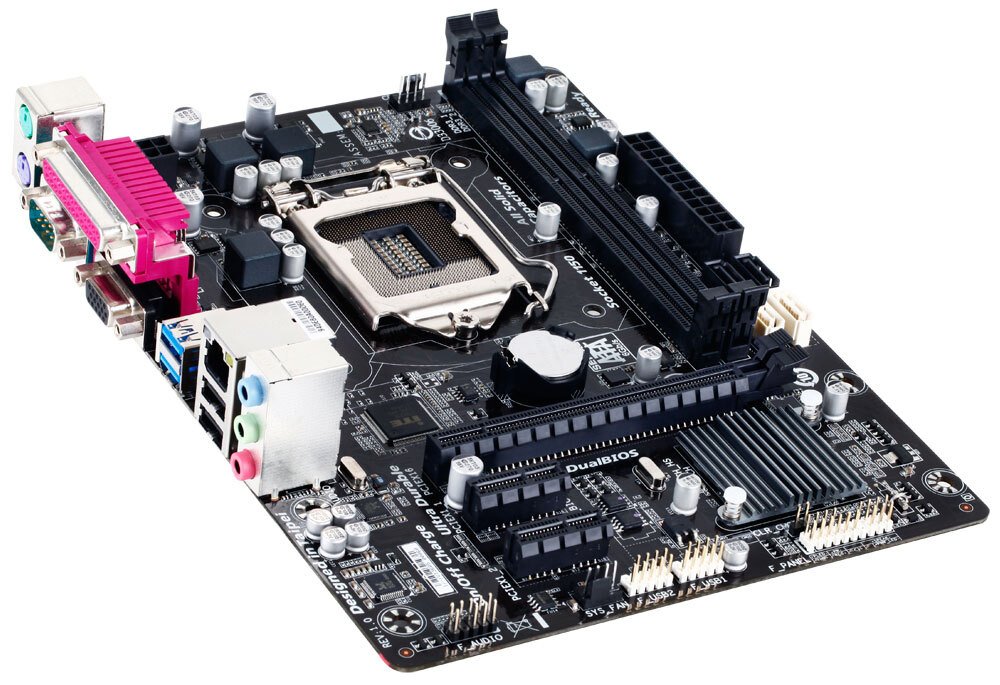

Gigabyte ATX Motherboard GA-H81M-DS2 Micro

Key Features
Model: GA-H81M-DS2
CPU: 4th Generation Intel Processors
Chipset: Intel H81 Express
2 x 1.5V DDR3
3 x PCI Express slot

Add to compare

Add to wishlist

11 People watching this product now!

Specification and Description

Specification

Basic Information
Supported CPU	Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package L3 cache varies with CPU
Chipset	Intel® H81 Express
Form Factor	Micro ATX Form Factor; 22.6cm x 17cm
BIOS	2 x 64 Mbit flash Use of licensed AMI EFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots (The PCI Express slots conform to PCI Express 2.0 standard.)
Memory
Type	Dual channel DDR3 memory architecture
Slots	2 x 1.5V DIMM
Supported Memory	Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	16 GB
Graphics
Graphics	1 x D-Sub port, supporting a maximum resolution of 1920×1200
Max Shared Memory	1 GB
Connector & Ports
D-Sub (s)	1 x D-Sub
USB (s)	Chipset: Up to 2 USB 3.0/2.0 ports on the back panel Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage	Chipset: 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices 2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices
Audio	Realtek® ALC887 codec High-Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	N/A
Warranty Information
Manufacturing Warranty	03 Years

Description

Gigabyte GA-H81M-DS2 Micro ATX ultra durable motherboard has the compatibility with 4th gen Intel processors. This board also supports dual channel DDR3 maximum 16GB memory and dual Ultra-Fast SATA interface. Focusing on the graphics, it has integrated Intel HD graphics with 1GB shared graphics memory containing the resolution of 1920×1200 Hz for D-Sub port. This basic motherboard has the facility of GIGABYTE On/Off Chargeâ, for USB devices, LAN with high ESD Protection and USB 3.0 ports with GIGABYTE 3x USB power. This All solid capacitors design board also contain GIGABYTE UEFI DualBIOSâ Technology and LPT, COM, D-SUB port on rear panel.
