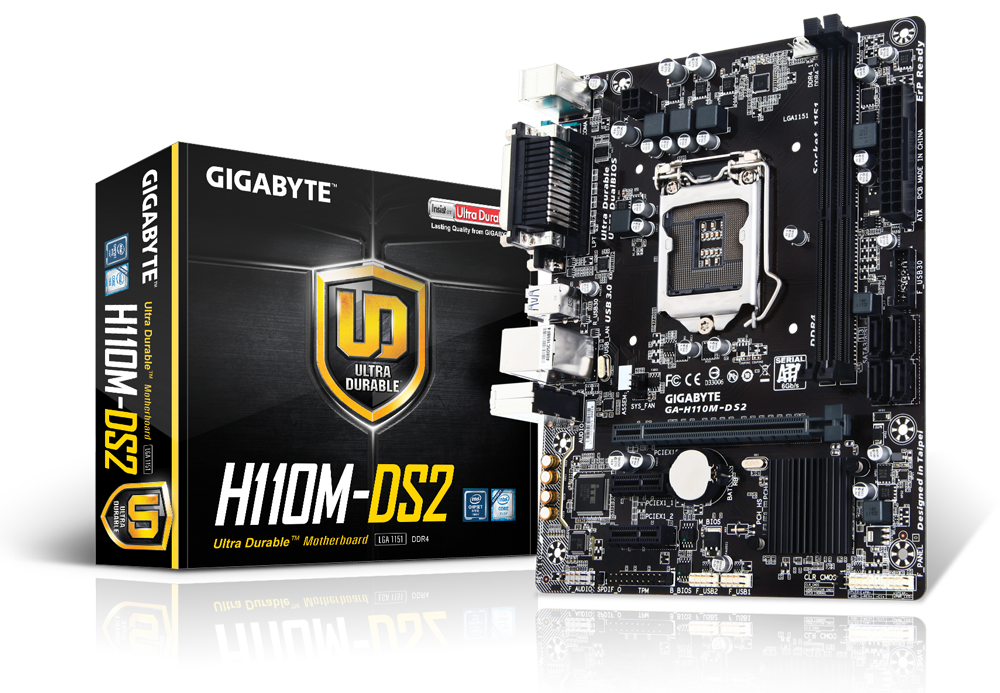

Gigabyte ATX Motherboard GA-H110M-DS2 Micro - Image 1

Gigabyte ATX Motherboard GA-H110M-DS2 Micro - Image 2

Gigabyte ATX Motherboard GA-H110M-DS2 Micro

Key Features
Model: GA-H110M-DS2
Memory Slot – 2
CPU: 7th/ 6th Generation Intel Processors
Generation – 6th/7th
Chipset: Intel H110 Express
2 x DDR4 DIMM
3 x PCI Express slot

Add to compare

Add to wishlist

11 People watching this product now!

Specification and Description

Specification

Basic Information Brand Gigabyte
Supported CPU	Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package * For 7th Generation Intel® Core™ processors support need to update the latest BIOS. L3 cache varies with CPU
Chipset	Intel® H110 Express Chipset
BIOS	2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 22.6cm x 17.4cm
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Memory
Slots	2 x DIMM
Type	Dual channel DDR4 memory architecture
Supported Memory	Support for DDR4 2400/2133 MHz memory modules Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
Maximum Memory	32 GB
Graphics
Max Shared Memory	1024 MB
Graphics	1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
Connector & Ports
D-Sub (s)	1 x D-Sub
HDMI	1 x HDMI
USB (s)	Chipset: 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage	4 x SATA 6Gb/s connectors
Audio	Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module (TPM) header
Warranty Information
Manufacturing Warranty	03 Years

Description

Gigabyte GA-H110M-DS2 Micro ATX ultra durable motherboard has compatibility with 7th/6th i3, i5 & i7 processors. This board also supports dual channel DDR4 maximum 32GB memory and dual Ultra-Fast SATA interface.This basic motherboard has the facility of Audio Noise Guard with LED Trace Path Lighting, 8-channel HD Audio with High Quality Audio Capacitors and Realtek GbE LAN with cFosSpeed Internet Accelerator Software. Focusing on the graphics, it has integrated Intel HD graphics with 1GB shared graphics memory containing the resolution of 1920×1200@60 Hz for D-Sub port. This board also contains All new GIGABYTE APP Center for simple, GIGABYTE UEFI DualBIOS Technology and easy use and support Intel Small Business Basics.
