Specification
| Brand | Gamdias | |
| Efficiency (Approx.) | 90% efficiency | |
| Certification | 80 PLUS Gold | |
| Fan Size | 120mm hydraulic bearing fan | |
| Lighting Effect | 30 Neon-Flex RGB | |
| Others | ATX 3.0 & PCIe Gen 5.0 Ready
Power Factor Correction: APFC with PF value of 0.99 Support MB Sync: 5V 3-pin Addressable (Digital) RGB Header Only 100% Industrial-grade Japanese Capacitors Native 12VHPWR Cable Full DC-DC, LLC Resonant Circuit Design Heavy-duty Protection: OVP/UVP/OPP/SCP/OCP/OTP |
|
| Input | ||
| Voltage | 100-240V | |
| Frequency Range | 47-63Hz | |
| Current | 13-6.5A | |
| Output | ||
| Modular Type | Fully Modular | |
| Total Power | 1000W | |

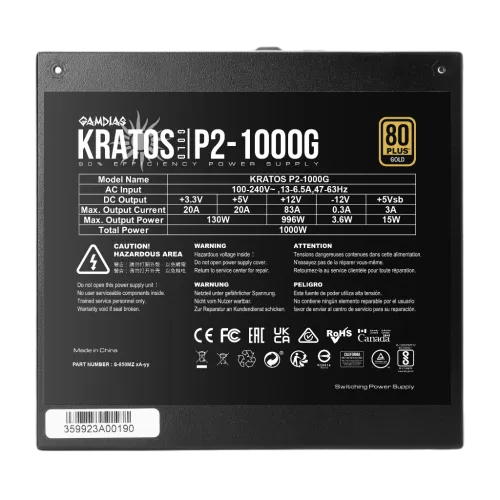

| AC Input | 100-240V~ / 13-6.5A / 47-63Hz | |
| DC Output | +3.3V / +5V / +12V / -12V / +5Vsb | |

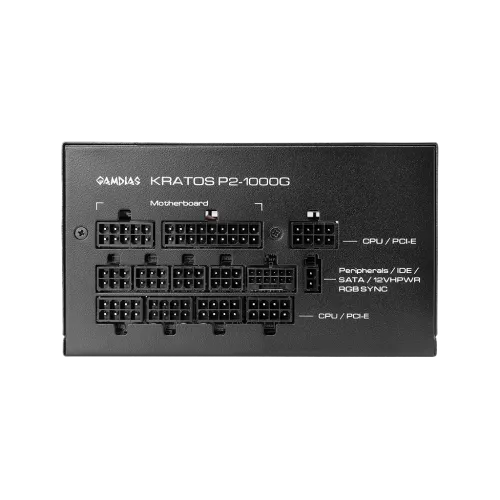

| Connector | ||
| Main Power | 1 (24 Pin) | |
| CPU | 2 (4+4 Pin) | |
| PCI-E | 4 (6+2 Pin) | |
| SATA | 8 (5 Pin) | |
| Molex | 4 (4 Pin) | |
| Floppy | 12VHPWR: 1 (12+4 Pin) | |
| Warranty Information | ||
| Manufacturing Warranty | 10 Years | |
Description
Gamdias KRATOS P2-1000G 1000W 80 Plus Gold ATX 3.0 Power Supply
The Gamdias KRATOS P2-1000G 1000W 80 Plus Gold ATX 3.0 Power Supply is 80 Plus Gold certified, ensuring a consistent and efficient power supply. Featuring compatibility with PCIe Gen 5.0 and ATX 3.0, a premium 120mm hydraulic bearing fan, 100% Japanese capacitors, and 30 integrated addressable lighting effects, this device is sure to impress in terms of both performance and design. The Gamdias KRATOS P2-1000G 1000W ATX 3.0 Power Supply, designed to satisfy 80 PLUS Gold certification requirements, ensures consistent power production with up to 90% efficiency at 50% load and 87% efficiency at 100% load. The Gamdias PSU is made to meet the power needs of next-generation graphics cards by providing up to 200% total power excursion, while also catering to ATX 3.0 standards and PCIe Gen 5.0 connector compatibility. The Gamdias KRATOS P2-1000G 1000W 80 Plus Gold ATX 3.0 Power Supply features 30 integrated lighting effects that are easily accessible with a simple button switch. It also supports addressable RGB sync using the sync software provided by the motherboard manufacturer. A 120mm hydraulic bearing fan is included with the Gamdias KRATOS P2-1000G 1000W Power Supply to enable superior heat dissipation during almost silent operation. The fan will reduce unwanted noise by adjusting its speed when in silent mode. Produced with only premium Japanese electrolytic capacitors at 105°C/221°F to guarantee standards for stability, longevity, and quality. Featuring a complete bridge LLC resonance aid, 12V synchronous rectification, and a superior DC-to-DC construction, this device produces an output that is both safe and steady. A 12+4-pin VGA power connector (12VHPWR) and up to four 6+2-pin VGA power connectors are supported in addition to NVIDIA and AMD graphics cards with higher power requirements and alternative connectors by the Gamdias KRATOS P2-1000G 1000W 80 Plus Gold ATX 3.0 Power Supply.
