Specification
| Brand | Deepcool | |
| Efficiency (Approx.) | ≥90% Under Typical Load(50% Loading) | |
| Certification | 80 PLUS GOLD Certified | |
| Fan Size | Fan Size: 120mm
Fan Bearing: Hypro Bearing |
|
| Output | ||
| Modular Type | Non-Modular | |
| DC Output | 850W | |
| Connector | ||
| Main Power | Main Power Connector (20+4)Pin x 1 | |
| CPU | CPU(4+4)Pin x 2 | |
| PCI-E | PCI-E(6+2)Pin x 1 | |
| SATA | SATA x 4 | |
| Molex | 4Pin Peripheral x 1 | |
| Warranty Information | ||
| Manufacturing Warranty | 10 years | |
Description

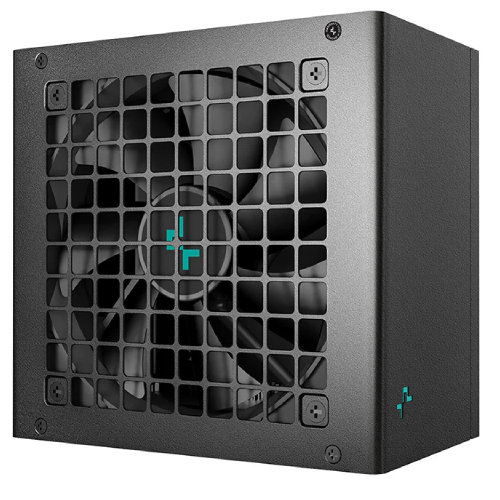

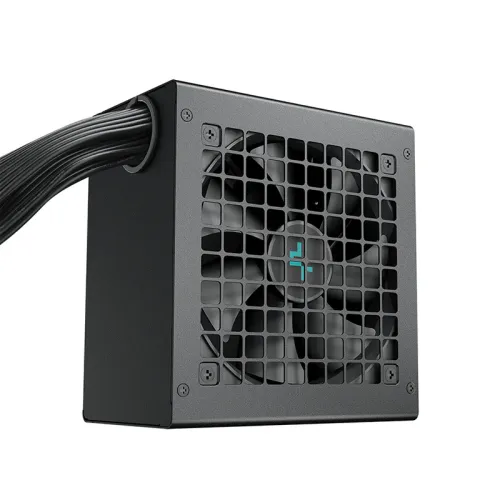

DeepCool PN850D 850W 80 Plus Gold Non-modular Power Supply
The DeepCool PN850D is an advanced 850W non-modular power supply unit (PSU) designed to meet the latest Intel ATX 3.1 and PCIe 5.1 standards, making it ideal for future-proofing modern PC builds. This PSU comes equipped with a dedicated 12V-2×6 connector, two EPS connectors, and three PCIe connectors, ensuring stable and reliable power delivery to a wide range of high-power components. Its design supports the ability to handle power spikes by providing up to three times the Total Graphics Power (TGP) for brief periods of 0.1 milliseconds, guaranteeing system stability even during sudden power demands. Efficiency is a hallmark of the PN850D, as it is 80 Plus Gold certified and maintains high energy efficiency under 90% of typical loads. It has also received a Gold rating from Cybernetics, further highlighting its superior energy efficiency and noise levels performance. The PSU’s reliability is enhanced by using a premium main electrolytic capacitor and advanced technologies such as active Power Factor Correction (PFC), full-bridge Soft Resonant Control (SRC) LLC, and a DC-to-DC topology. These features ensure a hold-up time of at least 16 milliseconds under an 80% load, providing consistent power delivery even during fluctuations. The PN850D includes a 12V-2×6 cable made from high-grade 16AWG copper core and sleeved for added durability, capable of handling up to 600W, making it well-suited for modern GPUs and other high-power components. It also features a dynamic 120mm hydro-bearing fan that adjusts its speed according to the PSU’s cooling needs, ensuring quiet and efficient operation. Additionally, the PSU comes with a comprehensive set of protections, including Over Power Protection (OPP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), Over Temperature Protection (OTP), Over Current Protection (OCP), Under Voltage Protection (UVP), No Load Operation (NLO), and Surge and Inrush Protection (SIP), providing users with peace of mind regarding the safety and stability of their system. Overall, the DeepCool PN850D is a reliable, efficient, and robust power supply, making it a top choice for powering high-performance PC systems now and in the future.
