DeepCool CH510 MESH DIGITAL Mid Tower Case

Key Features
Model: CH510
Mid-Tower ATX Case
Wide & Spacious Interior
Product Dimensions : 435×230×471mm
Materials: ABS+SPCC+Tempered Glass

Out of stock

Add to compare

Add to wishlist

20 People watching this product now!

Specification and Description

Specification

*Brand*	*Deepcool*
*Type*	*ATX Case*
*Front Panel*	*Mesh Metal*
*Tempered Glass Panel*	*Yes*
*Motherboard Support*	*Mini-ITX / Micro-ATX / ATX / E-ATX*
*External Features*
*Color(s)*	*Black*
*Material*	*ABS+SPCC+Tempered Glass*
*Weight*	*7.5Kg*
*Dimensions*	*455×230×470mm(L×W×H)*
*Expansion Slots*	*7 Slots*
*Radiator Support*	*Front: 120/140/240/280/360mm* *Top: 120/140/240/280/360mm* *Rear: 120/140mm*
*Fan Support*	*Front: 3×120 / 2×140mm* *Top: 3×120 / 2×140mm* *Rear: 1×120 / 1×140mm* *PSU Shrouded: 2×120mm*
*Pre- Installed Fans*	*Rear: 1×120mm*
*Drive Bays*	*3.5″ Drive Bays: 2* *2.5″ Drive Bays: 2+1*
*I/O Port*	*USB3.0×1、Type-c×1、Audio×1*
*Additional Feature*
*PSU*	*Power Supply Type: ATX PS2 （maximum length: 170mm)*
*Side Panel*	*Steel side panels, one with tempered glass*
*Clearance Space*
*Maximum CPU Cooler Height*	*175mm*
*Maximum Graphics Card Length*	*380mm*
*Maximum PSU Length*	*170mm*
*Warranty*	*No Warranty*

Description

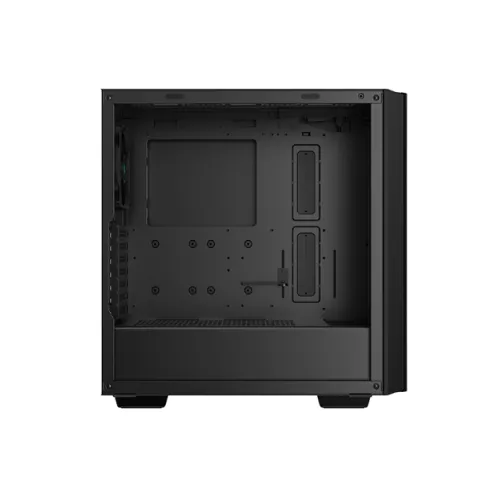

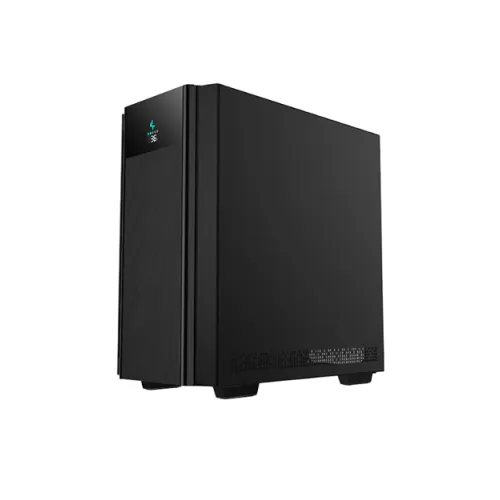

DeepCool CH510 MESH DIGITAL Mid Tower Case

The DeepCool CH510 MESH DIGITAL is a high airflow mid-tower ATX case with great flexibility and wide component compatibility for any system build. Featuring a display screen that is programmable to monitor internal system temperatures for critical information upfront.The CH510 MESH DIGITAL is an ideal case for any level builder needing a spacious interior and robust features designed for the modern PC gamer. The large metal mesh front panel allows vast amounts of airflow for optimal system cooling. Big power needs big cooling and the CH510 MESH DIGITAL provides ample amount of mounting locations to install plentiful cooling. Install large radiators up to 360mm either in front or on top, or fit up to 9x 120mm or 5x 140mm cooling fans for extreme airflow throughout. Maximize potential with flexible configurations that meet the needs of any system setup. With space for large GPUs up to 380mm and CPU coolers up to 175mm in height, the CH510 provides ample space without being too bulky. The DeepCool CH510 MESH DIGITAL Mid Tower Case has no warranty.
