Specification
| Brand | Dahua | |
| Main Processor | Industrial-grade processor | |
| Operating System | Embedded LINUX | |
| Audio and Video | ||
| IP Camera Input | Up to 32 channels of IPC access
32 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps |
|
| Two-Way Talk | Yes (share the same audio input with the first channel) | |
| Display | ||
| Interface | 1 HDMI, 1 VGA, 1 TV | |
| Resolution | VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 |
|
| Multi-Screen Display | 1/4/8/9/16/25/36 | |
| OSD | Camera title, Time, Video loss, Camera lock, Motion
detection, Recording |
|
| Recording | ||
| Compression | Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression: G.711a; G.711u; PCM |
|
| Record Rate | Main stream: 5M-N@(1fps–10fps); 4M-N,1080p@(1fps–15fps); 1080N, 720p, 960H, D1,CIF@(1fps–25/30fps)
Sub stream: D1, CIF@(1fps–15fps) |
|
| Bit Rate | 32 kbps–6144 kbps | |
| Record Mode | General, motion detection; intelligent; alarm; POS | |
| Playback And Backup | ||
| Playback Function | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) | |
| Backup Mode | USB device and network | |
| Network | ||
| Ethernet Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) | |
| Storage | ||
| Internal HDD | 2 SATA ports, up to 16TB capacity for each disk. The maximum HDD capacity varies with environment temperature. | |
| Auxiliary Interface | ||
| USB | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) | |
| RS485 | 1 port, for PTZ control | |
| Power | ||
| Power Supply | DC 12V, 5A | |
| Power Consumption | <16 W (without HDD) | |
| Component Environment | ||
| Operational Conditions | –10 °C to +55 °C (14 °F to +131 °F) | |
| Construction | ||
| Dimensions | 375.0 mm × 289.4 mm × 53.0 mm (14.76” × 11.40” × 2.09”) (W × D × H) | |
| Net Weight | 1.90 kg (4.20 lb) | |
| Gross Weight | 3.20 kg (7.00 lb) | |
| Manufacturing Warranty | 1 year | |
Description

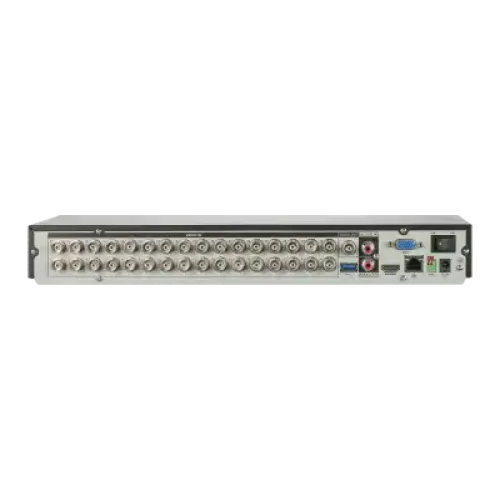

Dahua XVR5232AN-I3 32 Channel Penta-brid WizSense Digital Video Recorder
Dahua XVR5232AN-I3 32-Channel Digital Video Recorder supports Penta-brid access technologies such as HDCVI, AHD, TVI, CVBS, and IP to seamlessly interact with established industry standards, making it the ideal choice for upgrading current video surveillance systems. It’s an economical solution with a lot of flexibility. It features H.265+/H.265 dual-stream video compression. It also supports 16-channel AI-Coding. It can accept 32 channels of HDCVI/AHD/TVI/CVBS or 32 channels of IP camera inputs. The Dahua XVR5232AN-I3 32-Channel XVR is designed to give end-users the simplicity of an analog system, including cheaper system costs, easy installation, and the utilization of existing cable. It’s perfect for a variety of uses, including public safety, retail, transit, home security, and education. The Dahua XVR5232AN-I3 32-Channel Digital Video Recorder supports up to 5MP HD resolution (2560 x 1920) IPC input for recording, and live viewing. It is a type of technology being used in a variety of applications that search or identify individuals who show front cameras. A high-performance chip ensures excellent image quality and color reproduction. Dahua XVR5232AN-I3 32-Channel Digital Video Recorder has a smart fan. The smart fan may switch on or off automatically based on the temperature of the CPU. This feature may significantly minimize fan noise, resulting in a better user experience while also extending the fan’s life. The Dahua XVR5232AN-I3 comes with a 01-year warranty.
