Specification
| Brand | Dahua |
| NAND Flash | 3D NAND |
| Capacity | 256 GB |
| Sequential R/W | Sequential Read: Up to 530 MB/s Sequential Write: Up to 450 MB/s |
| Technical Info | |
| Vibration Resistance | 10–200Hz, 0.5G |
| MTBF | 1,500,000 hours |
| Transmission Speed | SATA III 6Gb/s |
| IOPs (4K Random Read/Write) | 4K Random Read: Up to 54000
4K Random Write: Up to 79000 |
| Battery And Power | |
| Power Consumption | 1.60W (max.)
0.48W(idle) |
| Physical Specification | |
| Humidity | 5%–95% (non-condensing) |
| Form Factor | SATA M.2 2280 |
| Operating Temperature | 0°C to +70°C (+32°F to +158°F) |
| Dimension | Product Dimensions: 80.00 mm × 22.00 mm × 2.20 mm (3.15″ × 0.87″ × 0.09″)
Packaging Dimensions: 140.50 mm × 105.50 mm × 15.50 mm (5.53″ × 4.15″ × 0.61″) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Weight | Max. 8 g (0.02 lb) |
| Others | |
| Other Features | S.M.A.R.T: Yes
TRIM: Yes Garbage Collection: Yes TBW: 200 TB |
| Warranty | 3 Years Warranty |
Description

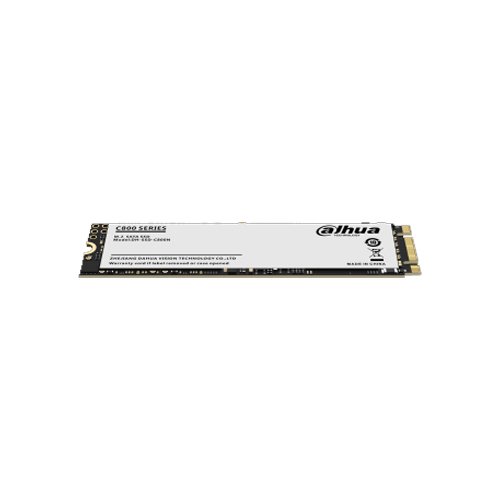

DAHUA SSD-C800N256G 256GB M.2 SATA SSD
The DAHUA SSD-C800N256G is a solid state drive with a storage capacity of 256GB. It has a SATA M.2 2280 form factor and a SATA III 6Gb/s port. The product dimensions are 80.00 mm × 22.00 mm × 2.20 mm (3.15 Inch × 0.87 Inch × 0.09 Inch) and the maximum net weight is 8g (0.02lb). The memory component is 3D NAND and it consumes .60W (max.) power while operating and 0.48W when idle. The SSD features S.M.A.R.T technology, TRIM, and garbage collection. It supports sequential read speed of up to 530 MB/s and sequential write speed of up to 450 MB/s, with 4K random read up to 54000 and 4K random write up to 79000. Additionally, it has a mean time between failures (MTBF) of 1,500,000 hours and a total bytes written (TBW) of 100 TB. Its operating temperature range is 0°C to +70°C (+32°F to +158°F), storage temperature range is -40°C to +85°C (-40°F to +185°F), and it can operate in humidity conditions ranging from 5%–95% (non-condensing). The SSD also boasts of vibration resistance of 10-200Hz at 0.5G. This product comes with a 3-year limited warranty.
