Specification
| Main Feature | ||
| Model | AP1300 | |
| Antenna | 4× Internal Omni-directional Antennas | |
| Button | 1× Reset Button | |
| CPU | 880 MHz Dual-Core Processor | |
| Ram | 16 MB (128 Mbit) | |
| Storage | 128 MB (1 Gbit) | |
| Temperature | Operating Temperature: 0~40 °C (32~104 °F)
Storage Temperature: -40~70 °C (-40~158 °F) |
|
| Dimensions | 232×232×57.1mm | |
| Power | ||
| Power consumption | Idle: 4 W
PoE Max: 11 W DC Max: 7.5 W |
|
| Network | ||
| Wireless Rate | 5 GHz: Up to 867 Mbps
2.4 GHz: Up to 300 Mbps |
|
| Wireless standards | WiFi 5 (802.11ac/n/g/b/a) | |

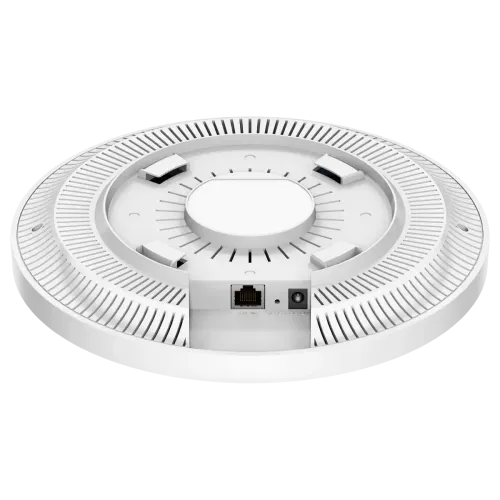

| Ethernet | 1× Gigabit Ethernet Port (PoE In) | |

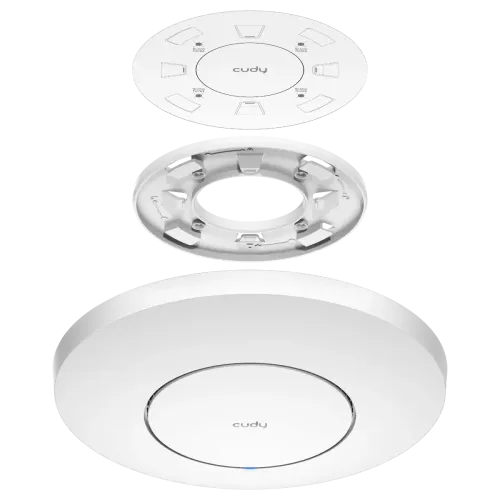

| Others | Ceiling/Wall Mounting (Kit included) | |
| Manufacture Warranty | ||
| Warranty | 1 Year | |
Description
Cudy AP1300 AC1200 1200Mbps Wireless Dual Band Indoor Access Point
The Cudy AP1300 AC1200 Dual Band Gigabit WiFi Access Point features MU-MIMO technology to facilitate efficient data transmission to multiple devices simultaneously, even during heavy usage. The beam forming technology further improves coverage by directing signals towards connected devices. The Cudy AP1300 is mesh-ready, enabling seamless coverage through automatic client switching between access points. This is particularly useful for maintaining uninterrupted WiFi calling or live streaming while moving within a space. It supports flexible wired-and-wireless hybrid back haul options, providing a choice between simple wireless mesh backhaul and hybrid backhaul for enhanced performance. With multiple operational modes, such as Access Point, WiFi Router, Range Extender, and WISP, the Cudy AP1300 Access Points accommodates diverse networking needs. Advanced business features like Captive Portal, Band Steering, Auto Channel Optimization, and Self-Organizing Mesh are available for more sophisticated deployments. The Cudy AP1300 operates on WiFi 5 (802.11ac/n/g/b/a) standards and supports both 2.4 GHz and 5 GHz frequencies with up to 867 Mbps and 300 Mbps signal rates respectively. It offers features like Multiple SSID, Captive Portal, Seamless Roaming Mesh, Band Steering, and more for comprehensive wireless management.
