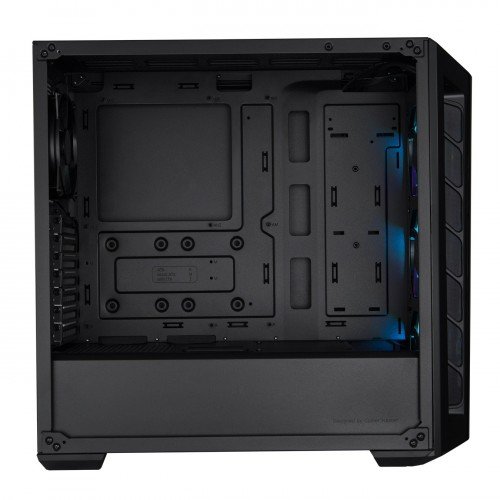

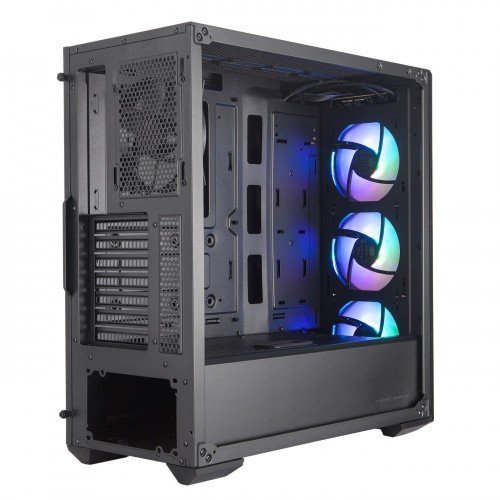

Cooler Master Masterbox MB520 ARGB Mid Tower ATX Casing

Key Features
Model: Cooler Master Masterbox MB520 ARGB
Mesh Intakes
ARGB Lighting System
DarkMirror Front Panel
Tempered Glass Side Panel

Out of stock

Add to compare

Add to wishlist

17 People watching this product now!

Specification and Description

Specification

*Brand*	*Cooler Master*
*Type*	*Mid Tower*
*Front Panel*	*2x USB 3.2 Gen 1 (formerly USB 3.0)* *1x 3.5mm Audio Jack* *1x 3.5mm Mic Jack*
*Tempered Glass Panel*	*Yes*
*Motherboard Support*	*Mini ITX, Micro ATX, ATX* *E-ATX: (support for up to 12″ x 10.7″)*
*External Features*
*Color(s)*	*Black*
*Weight*	*6.59 kg*
*Dimensions*	*496 x 217 x 469 mm*
*Front Ports*	*2x USB 3.2 Gen 1 (formerly USB 3.0)* *1x 3.5mm Audio Jack* *1x 3.5mm Mic Jack*
*Expansion Slots*	7
*Radiator Support*	*RADIATOR SUPPORT – TOP: 120mm, 240mm, 360mm, (44mm max motherboard component height)* *RADIATOR SUPPORT – FRONT: 120mm, 140mm, 240mm, 280mm, 360mm, (75mm clearance)* *RADIATOR SUPPORT – REAR: 120mm*
*Fan Support*	*FAN SUPPORT – TOP: 3x 120mm, 2x 140mm* *FAN SUPPORT – FRONT: 3x 120mm, 2x 140mm* *FAN SUPPORT – REAR: 1x 120mm*
*Pre- Installed Fans*	*PRE-INSTALLED FANS – FRONT: 3x 120mm ARGB Fans* *PRE-INSTALLED FANS – REAR: 1x 120mm (Black)*
*Drive Bays*	*2.5″ / 3.5″ DRIVE BAYS (COMBO): 2 (Max.2)* *2.5″ DRIVE BAYS: 4 (Max.6)*
*I/O Port*	*2x USB 3.2 Gen 1 (formerly USB 3.0)* *1x 3.5mm Audio Jack* *1x 3.5mm Mic Jack* *1x ARGB Controller* *1x ARGB 2-to-3 splitter*
*Additional Feature*
*PSU*	*180mm*
*Side Panel*	*Tempered Glass*
*Clearance Space*
*Maximum CPU Cooler Height*	*165mm*
*Maximum Graphics Card Length*	*410mm*

Description

Cooler Master Masterbox MB520 ARGB Mid Tower ATX Casing

Showing off your rig through a smoked front panel is something you didn’t know you needed. The DarkMirror front panel enriches the contrast from hardware lighting, creating a picturesque display of the internal components. To cool gaming systems built inside, mesh ventilation is found on the entire length of the front panel sides, ensuring that the three included ARGB fans are fed with a considerable amount of air. If you thinking about thermal upgrades, the MasterBox MB520 ARGB supports up to seven fans and front and rear liquid cooling for high-demand builds. Paired with a tempered glass side panel and additional top ventilation, your build can look, and play, exactly as you dreamed it would.Shade light through the DarkMirror front panel for a sharper contrast of the ARGB fans. Large, mesh intakes on each side of the front panel provide considerable airflow to system. Three pre-installed ARGB fans can be managed by either the motherboard or an included controller, connected by the included splitter, to create a comprehensive ARGB lighting system. Gaming hardware, cooling components, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel. Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure that even the most extreme systems stay cool.The small ARGB Controller is a mini-sized controller that allows your Addressable RGB such as fans and LED strips to be powered and controlled even in PC systems without an A-RGB capable motherboard. The controller comes with 14 lighting presets to make full use of the Addressable LEDs in the system and also allows to be completely switched off by long pressing its button. It is also possible to attach any external 2pin button to it to be able to switch presets without having to open the system. For ease of use, Cooler Master allows the RESET button to be optionally connected to the controller and used as an external ARGB preset switch button.
