Specification
| Key Features | ||
| Model | MasterAir MA624 Stealth | |
| Type | Air Cooler | |
| Fan Speed | 140 mm Fan – 650-1400 RPM ± 5%, 120 mm Fan – 650-1800 RPM ± 5% | |
| Fan Airflow | 140 mm Fan – 67 CFM (Max), 120 mm Fan – 62 CFM (Max) | |
| Noise | 140 mm Fan – 10 ~ 27 dBA, 120 mm Fan – 8 ~ 27 dBA | |
| Air Pressure | 140 mm Fan – 2.25 mmH2O (Max), 120 mm Fan – 2.5 mmH2O (Max) | |
| Connector | Fan Power Connector: 4-Pin (PWM) | |
| Material | 6 Heat Pipes, Aluminum Fins | |
| Others | FAN RATED VOLTAGE: 12VDC
FAN RATED CURRENT: 0.15A FAN SAFETY CURRENT: 140 mm Fan – 0.4A, 120 mm Fan – 0.37A FAN POWER CONSUMPTION: 1.8W |
|
| Physical Specification | ||
| Dimension | Dimension (L X W X H): 144.9 x 153.2 x 160 mm / 5.7 x 6 x 6.3 inch
Fan Dimension (L X W X H): 140 mm Fan – 140 x 140 x 25 mm / 5.5 x 5.5 x 1 inch, 120 mm Fan – 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch |
|
| Supported Sockets | ||
| Intel | LGA2066, LGA2011-v3, LGA2011, LGA1200, LGA1366, LGA1156, LGA1155, LGA1151, LGA1150 | |
| AMD | AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1 | |
| Warranty Information | ||
| Warranty | 2 Years Warranty | |
Description

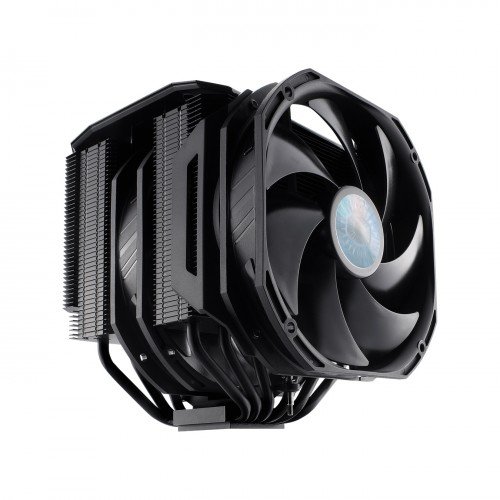

Cooler Master MasterAir MA624 Stealth CPU Air Cooler
Cooler Master MasterAir MA624 Stealth CPU Air Cooler featured with Premium Aluminum Black Top Cover, Dual Tower Heat Sink, 6 Heat Pipes with Nickel Plated Base, Dual SickleFlow 140 Fan, 3rd 120 mm fan for RAM Clearance with Easy Mounting System. Stealth black aluminum top cover matches all-black hardware throughout to offer a premium finish. This CPU cooler designed with 6 heat pipes and full coverage of nickel-plated copper base provides seamless contact with CPU for excellent heat dissipation. Here, Dual tower heatsinks provide twice the surface area for better cooling, Fin thickness and distance between layers ensures maximum airflow through the heatsink. In this CPU Cooler Twin SickleFlow 140 fans provide optimal airflow and pressure using Push-Pull setup for excellent performance at inaudible noise levels. This cooler is design for graphic card compatibility on ATX and M-ATX platforms. In this CPU Air Cooler, Fan is designed with SickleFlow 120 x 1 & SickleFlow 140 x 1 Allows 40mm RAM height for clearance and compatibility, SickleFlow 140 x1 Concave heatsink design provides up to 70mm RAM compatibility.
