Specification
| Key Features | ||
| Model | Hyper 103 | |
| Type | Air Cooler | |
| Fan Speed | 800-2200 RPM (PWM) ± 10% | |
| Fan Airflow | 15.7 – 43.1 CFM ± 10% | |
| Noise | 17 – 30 dBA | |
| Air Pressure | 0.35 – 2.63 mmH2O ± 10% | |
| Connector | 4-Pin (PWM) | |
| Material | HEAT SINK MATERIAL: 3 Continuous Direct Contact Heat Pipes, Aluminum Fins | |
| Physical Specification | ||
| Dimension | DIMENSIONS: 108 x 89.5 x 138.5 mm
HEAT SINK DIMENSIONS: 96 x 61 x 138.5 mm FAN DIMENSIONS: 92 x 92 x 25 mm |
|
| Weight | HEAT SINK WEIGHT: 500g
FAN WEIGHT: 80g |
|
| Supported Sockets | ||
| Intel | LGA2066, LGA2011-v3, LGA2011, LGA1200, LGA1366, LGA1156, LGA1155, LGA1151, LGA1150, LGA775 | |
| AMD | AM3, AM3+, AM2, FM2+, FM2, FM1 | |
| Warranty Information | ||
| Warranty | 01 Year | |
Description

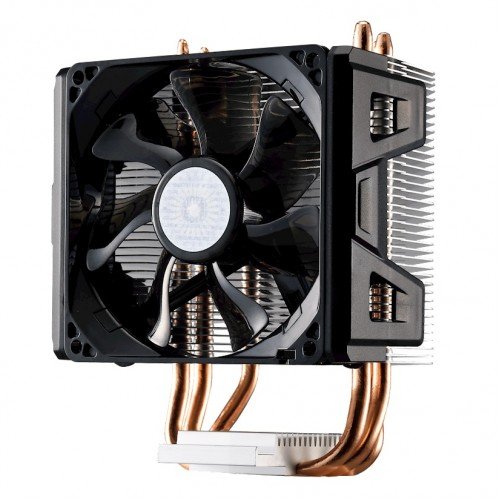

Cooler Master Hyper 103 CPU Air Cooler

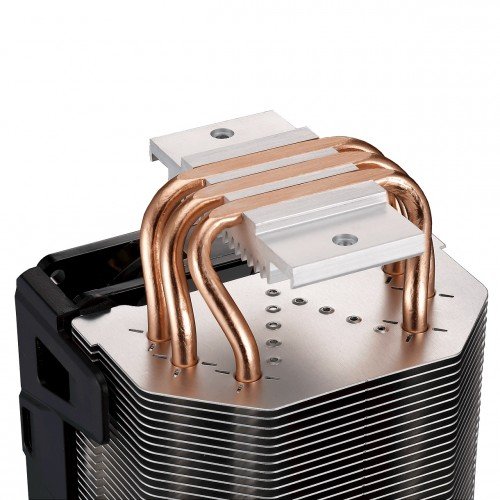

The Cooler Master Hyper 103 is an affordable mainstream heatsink, delivering great cooling performance on all modern platforms. The special fin design combined with Cooler Master exclusive X-Vent and Air-Guide technology optimizes air flow toward the Heatpipes. The Hyper 103’s 92mm PWM fan features a wide range for the fan speed and can be fine-tuned for maximum airflow or silent operation. The low profile tower heatsink is a great match for smaller systems. Funnel shaped aluminum fins and a series of perforated dimples help to guide the airflow towards the Heatpipes, greatly reducing CPU temperature. Positioned in a 45 degree angle and surrounding the Heatpipes, each fin-blade features X-shaped vents that create areas of high and low air pressure, resulting in several controlled vortices. These small and chaotic turbulences produce strong gusts that reduce overall airflow but improves airflow where it matters the most next to the Heatpipes. The base is engineered to minimize CPU contact gaps and stylish aluminum fins provide excellent heat dissipation. The Hyper 103 92mm PWM fan features a wide speed range and can be fine-tuned for maximum cooling performance or silent operation. The low profile tower heatsink is the perfect match for small systems. New tool-free mounting system ensures hassle-free installation. Universal retention brackets are compatible with latest Intel and AMD socket CPU. The friendly design makes the fan installation easier.
