Specification
| Brand | Cisco | |
| Type | Network Switch | |
| Network Standard | IEEE 802.1D
IEEE 802.1s IEEE 802.1w 10G support: Yes Port mirroring: Yes Flow control support: Yes Link aggregation: Yes Broadcast storm control: Yes Auto MDI/MDI-X: Yes Spanning tree protocol: Yes Head-of-line (HOL) blocking: Yes Ethernet LAN data rates: 10,100,1000 Mbit/s VLAN support: Yes Number of VLANs: 4094 |
|
| MAC Address Table | 16K | |
| Environment | Operating temperature (T-T): -5 – 50 °C
Storage temperature (T-T): -25 – 70 °C Operating relative humidity (H-H): 10 – 90% Storage relative humidity (H-H): 10 – 90% |
|
| Hardware Features | ||
| Interface | Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000) Installed SFP+ modules quantity: 4 USB 2.0 ports quantity: 1 |
|
| Power Supply | Power Supply: 100-240V 50-60 Hz, Internal
Power Supply Type: Internal |
|
| Dimensions (L x W x H) | 17.5 x 9.4 x 1.7″ / 445 x 240 x 44 mm | |
| Weight | 6.13 lb / 2.78 kg | |
| Manufacture Warranty | ||
| Warranty | 01-Year Warranty | |
Description

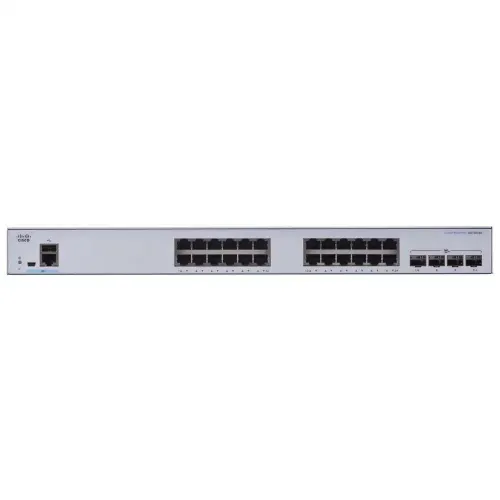

Cisco CBS350-24T-4X-EU 24-Port Gigabit Managed Switch
The Cisco CBS350-24T-4X-EU is a powerful 24-Port Gigabit Managed Switch designed to rapidly expand the network capacity of businesses. It offers a comprehensive solution for connecting various wired devices, including computers and network-attached storage, with its 24 Gigabit Ethernet ports. Additionally, it provides high-speed fiber connectivity through its four 10GbE SFP+ ports. Featuring advanced Layer 2 and Layer 3 functionalities, this managed rackmount switch ensures secure connections, clear communications, and efficient link aggregation. It supports the creation of up to eight groups of 16 ports, enabling multi-Gig connections to compatible devices. With a switching capacity of 128 Gb/s and a forwarding rate of 95.23 Mpps, the switch facilitates smooth and reliable data transfers. The Cisco Business Dashboard portal and mobile app offer a convenient way to configure and monitor the Cisco CBS350-24T-4X and its connected devices. This intuitive management interface simplifies network administration tasks, providing centralized control over the network infrastructure. The switch’s fanless design not only reduces power consumption but also ensures silent operation, making it suitable for environments where noise reduction is important. Its sleek and compact 1 RU form factor allows for easy installation in various settings, including wiring closets, retail stores, offices, and other businesses. The Cisco CBS350-24T-4X-EU 24-Port Gigabit Managed Switch is a reliable and feature-rich networking solution that offers scalability, security, and ease of management, making it an ideal choice for businesses looking to expand their network infrastructure.
