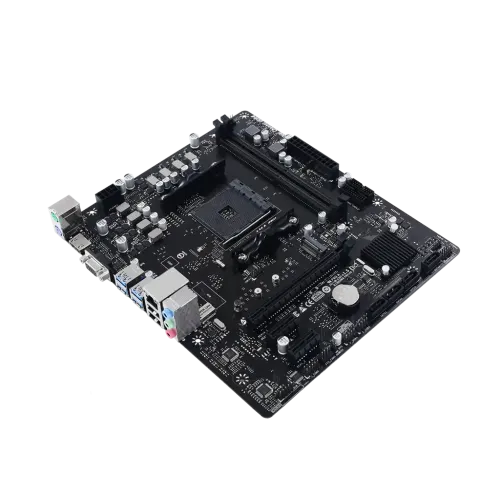

BIOSTAR B550MH DDR4 AMD AM4 Micro ATX Motherboard

Name: BIOSTAR B550MH DDR4 AMD AM4 Micro ATX Motherboard
SKU: 45119
Availability: InStock

Original price was: 10,450.00 ৳ .Current price is: 8,100.00 ৳ .

Key Features
Model: B550MH
Supported CPU: Ryzen 3rd Gen and 4th Gen processors
Supported RAM: 2x DIMM, DDR4 4933+(OC)
Graphics Output: 1 x HDMI, 1 x VGA Port
Features: 1 x M.2 Slot, Realtek RTL8111H

Add to compare

Add to wishlist

18 People watching this product now!

Specification and Description

Specification

*Brand*	*BOISTAR*
*Supported CPU*	*Socket AM4 support AMD 3rd Gen Ryzen (Matisse/ Renoir) processors and Ryzen 4th Gen (Vermeer) processors* *Support for future AMD Ryzen processors with BIOS update*
*Chipset*	*AMD B550*
*Form Factor*	*Micro ATX Form Factor Dimension: 24.4cm x 20.8cm ( W x L )*
*Audio*	*ALC887* *7.1 Channels, High Definition Audio, Hi-Fi (Front)*
*Expansion Slots*
*PCI*	*1 x PCIe 4.0/ 3.0 x 16 Slot:* *Supports PCIe 4.0 x 16 mode with AMD Ryzen processors. (Matisse only)* *Supports PCIe 3.0 x 16 mode AMD Ryzen with Radeon Vega Graphics processors. (Renoir only)* *2 x PCIe 3.0 x 1 Slot*
*Memory*
*Type*	*DDR4*
*Slots*	*2 x DIMM*
*Supported Memory*	*4th Gen AMD Ryzen Processors (Vermeer CPUs/ Future APUs):* *Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133* *3rd Gen AMD Ryzen Processors (Matisse CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133* *3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133* *Each DIMM supports non-ECC and ECC Un-buffered 8/ 16/ 32 GB DDR4 module*
*Maximum Memory*	*Up to 64 GB*
*Graphics*
*Graphics*	*By CPU model* *Supports DX12* *Supports HDCP*

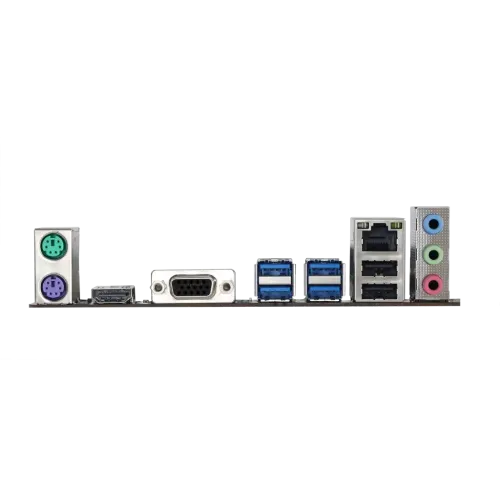

*Connector & Ports*
*HDMI*	*1 x HDMI Port*
*VGA (s)*	*1 x VGA Port*
*USB (s)*	*8 x USB 3.2 (Gen1) ports (4 on rear I/Os and 4 via internal headers)* *6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)*
*LAN Port (s)*	*Realtek RTL8111H* *10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability* *Supports Super LAN Surge Protection*
*Supported Storage*	*4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10* *1 x M.2 (M Key) Socket:* *Supports M.2 Type 2242/ 2260/ 2280 SSD module* *Supports PCIe 4.0 x 4 (64Gb/s)/ 3.0 x 4 (32Gb/s)* *Supports SATA III (6.0Gb/s) SSD* * M.2 (M Key) Socket (M2_PCIe-SATA1): *The bandwidth is depended on CPU.* *Supports PCIe 4.0 x 4 (64Gb/s) speed, which depends only on Ryzen 3rd Gen Matisse.*
*Audio*	*3 x Audio Jack*
*Internal I/O Ports*	*4 x SATA III (6.0Gb/s) Connectors* *2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)* *2 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)* *1 x 8-Pin Power Connector* *1 x 24-Pin Power Connector* *1 x CPU Fan Connector* *1 x System Fan Connector* *1 x Front Panel Header* *1 x Front Audio Header* *1 x Clear CMOS Header* *1 x Internal Stereo Speaker Header* *1 x COM Port Header*
*Others*
*Bundled Software*	*BullGuard*
*Warranty Information*
*Manufacturing Warranty*	*3 Years*

Description

BIOSTAR B550MH DDR4 AMD AM4 Micro ATX Motherboard

The Biostar B550MH is a micro ATX motherboard designed for use with the latest AMD Ryzen 3rd Gen and 4th Gen processors. It features the AM4 socket and supports DDR4 memory, providing users with high-speed performance and support for the latest hardware. The B550MH motherboard has a variety of features that make it perfect for both gaming and workstation builds. It has a robust power delivery system that provides stable and efficient power to the CPU, and it also features a high-quality audio subsystem that provides clear and immersive sound. The BIOSTAR B550MH also has a wide range of connectivity options, including support for PCIe 4.0, USB 3.2, and SATA III. Additionally, it has a high-speed Ethernet port and support for wireless connectivity, which makes it easy to connect to the internet and other devices. The BIOSTAR B550MH motherboard also has a range of advanced features that make it a great choice for overclockers and enthusiasts, such as the ability to adjust the CPU voltage and monitor the temperature of the system.
